ADT251L-AEFEYW (2005)

Toyota Avensis

Production Apr 2005 - Apr 2006
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

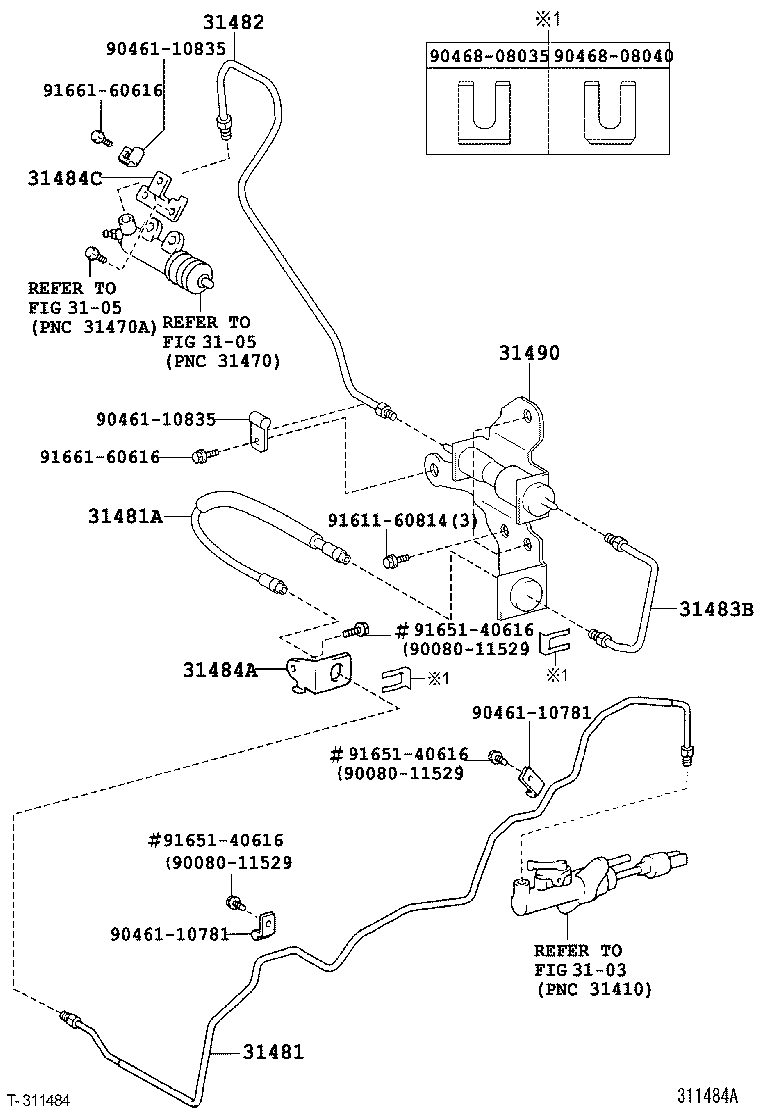

ILLUST NO. 2 OF 2(0504- )ADT25#..LHD

Click highlighted areas on diagram

diagram 3103 3105 3105 31481 31481A 31482 31483B 31484A 31484C 31490 9008011529 9008011529 9008011529 9046110781 9046110781 9046110835 9046110835 9046808035 9046808040 9161160814 9165140616 9165140616 9165140616 9166160616 9166160616
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
90080-94130

ADT251,AZT250,CDT250..MTM

C.F.GOMMA SPA

 1
90080-94130

ADT251,AZT250,CDT250..MTM

 1
90947-02D12

ADT251,AZT250,CDT250..MTM

TOYODA GOSEI

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-05120

ADT251

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-05020

ADT251

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12380

ADT251,AZT250,CDT250..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20460

ADT251,ZZT25#..MTM

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-05010

ADT251

 1
Common parts
90080-11529
90461-10781
90461-10835
90468-08035
90468-08040
91611-60814
91651-40616
91661-60616
Linked diagrams
3103
3105
