ADT250R-AWFNYW (2006)

Toyota Avensis

Production May 2006 - Nov 2008
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )LB,WG

Click highlighted areas on diagram

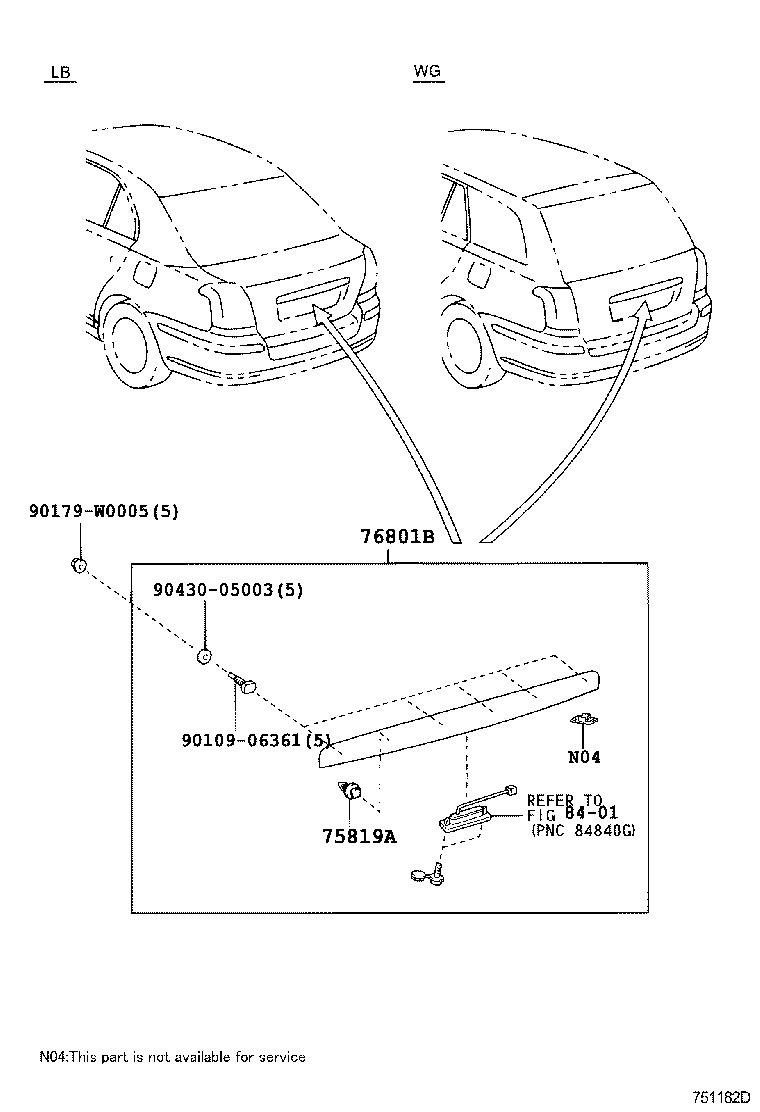

diagram 75819A 76801B 8401 9010906361 90179W0005 9043005003
Part # Description Qty Price
76801B - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE RH
76801-05080B2

ADT25#,AZT25#,ZZT25#..LB,WG

MEDIUM SILVER ME.,1F8

 1
Common parts
90109-06361
90179-W0005
90430-05003
Linked diagrams
8401
