ADT250R-AWFNYW (2006)

Toyota Avensis

Production May 2006 - Nov 2008
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )WG

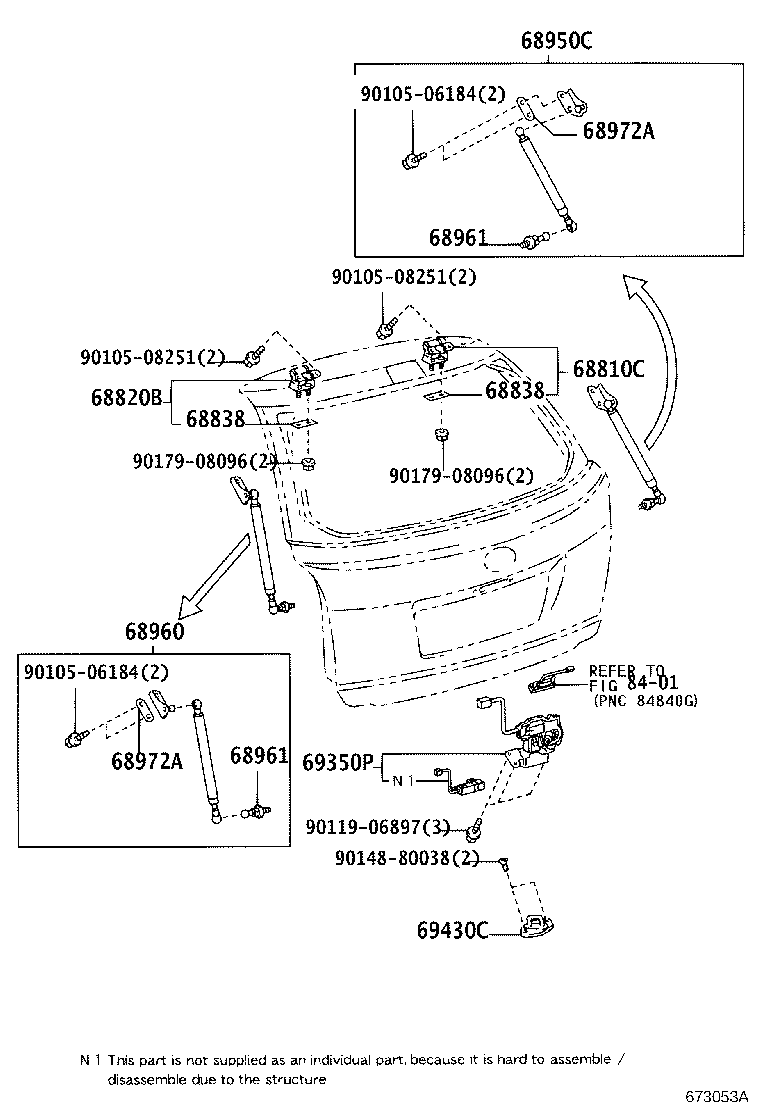

Click highlighted areas on diagram

diagram 68810C 68820B 68838 68838 68950C 68960 68961 68961 68972A 68972A 69350P 69430C 8401 9010506184 9010506184 9010508251 9010508251 9011906897 9014880038 9017908096 9017908096
Part # Description Qty Price
68950C - STAY ASSY, BACK DOOR, RH
68950-09341

ADT25#,AZT25#,ZZT25#..WG

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-09261

ADT25#,AZT25#,ZZT25#..WG

 1
Common parts
90105-06184
90105-08251
90119-06897
90148-80038
90179-08096
Linked diagrams
8401
