ADT250L-AEFNYW (2006)

Toyota Avensis

Production May 2006 - Nov 2008
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

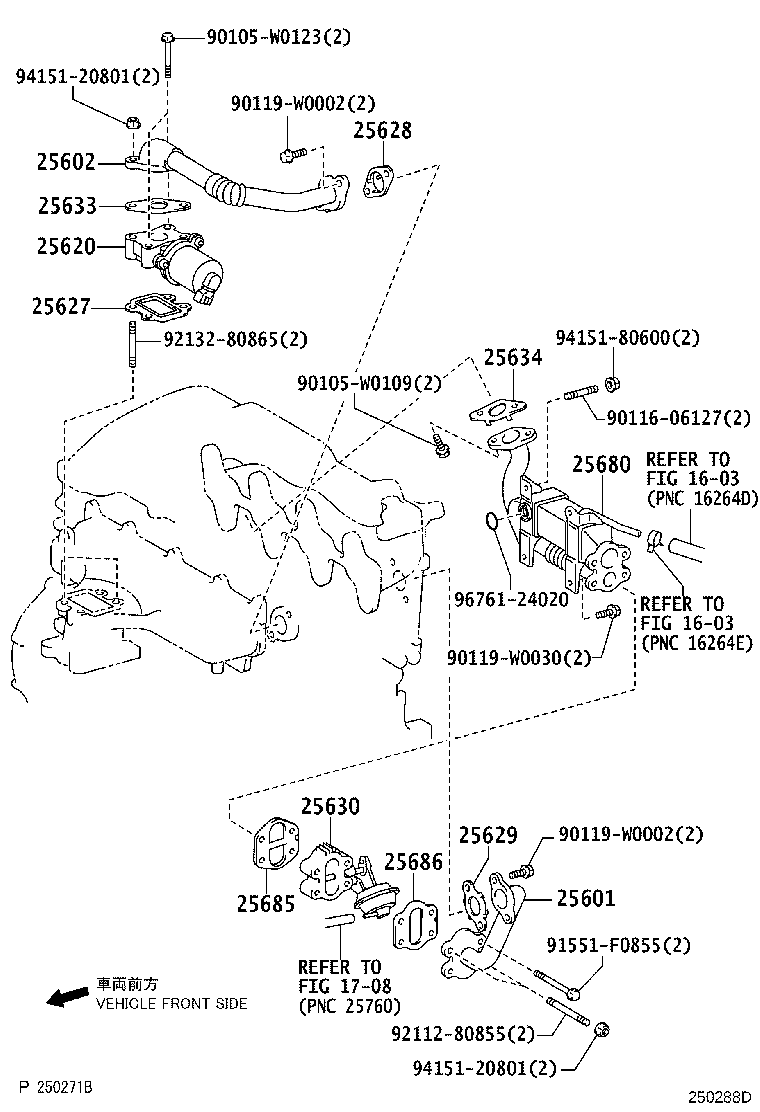

(0609- )1ADFTV..LHD

Click highlighted areas on diagram

W(DPF)

diagram 1603 1603 1708 25601 25602 25620 25627 25628 25629 25630 25633 25634 25680 25685 25686 90105W0109 90105W0123 9011606127 90119W0002 90119W0002 90119W0030 91551F0855 9211280855 9213280865 9415120801 9415120801 9415180600 9676124020
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-26020

1ADFTV..ADT250..LHD

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

 1
25620 - VALVE ASSY, EGR
25620-0R020

1ADFTV..ADT250

 1
25628 - GASKET, EGR INLET
25628-26020

1ADFTV,2AD#..ADT25#

 1
25680 - COOLER ASSY, EGR
25680-0R021

1ADFTV..ADT250..LHD

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

 1
25680-0R011

1ADFTV,2ADFTV..ADT25#

 1
25680-0R020

1ADFTV..ADT250..LHD

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

 1
25685 - GASKET, EGR COOLER, NO.1
25685-0R010

1ADFTV..ADT250..LHD

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

 1
25686 - GASKET, EGR COOLER, NO.2
25686-0R010

1ADFTV..ADT250..LHD

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

 1
Common parts
90105-W0109
90105-W0123
90116-06127
90119-W0002
90119-W0030
91551-F0855
92112-80855
92132-80865
94151-20801
94151-80600
96761-24020
Linked diagrams
1603
1708

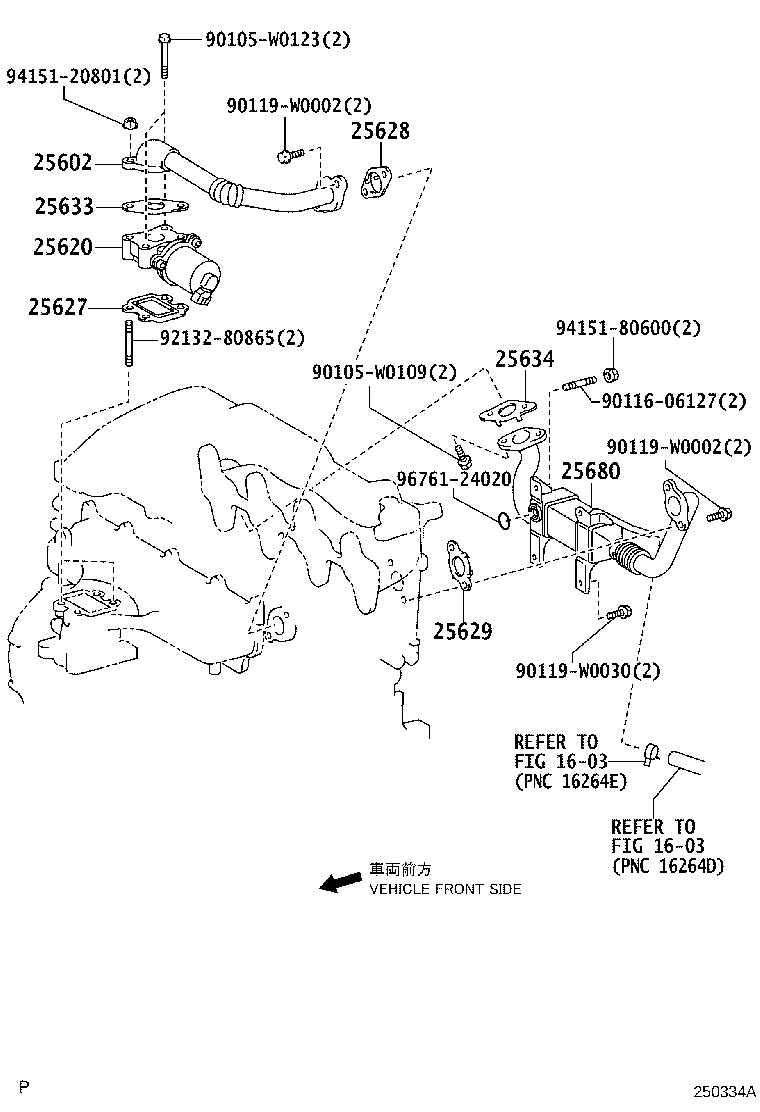

(0805- )1ADFTV,2ADFTV

Click highlighted areas on diagram

diagram 1603 1603 25602 25620 25627 25628 25629 25633 25634 25680 90105W0109 90105W0123 9011606127 90119W0002 90119W0002 90119W0030 9213280865 9415120801 9415180600 9676124020
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-0R020

1ADFTV..ADT250

 1
25628 - GASKET, EGR INLET
25628-26020

1ADFTV,2AD#..ADT25#

 1
25680 - COOLER ASSY, EGR
25680-0R021

1ADFTV..ADT250..LHD

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

 1
25680-0R011

1ADFTV,2ADFTV..ADT25#

 1
25680-0R020

1ADFTV..ADT250..LHD

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

 1
Common parts
90105-W0109
90105-W0123
90116-06127
90119-W0002
90119-W0030
92132-80865
94151-20801
94151-80600
96761-24020
Linked diagrams
1603
