Toyota Auris/hybrid (ukp) ZZE150 SWITCH & RELAY & COMPUTER

ZZE150R-DHMNKW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Nov 2008

Engine 4ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

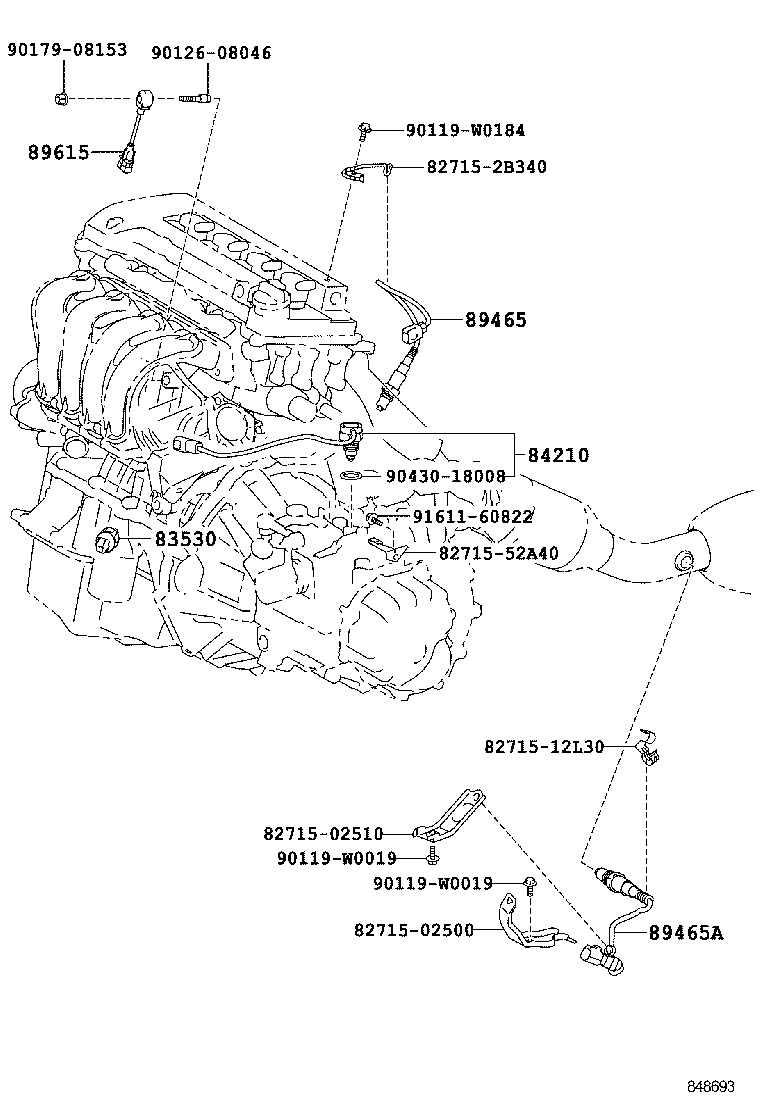

ILLUST NO. 1 OF 6(0702-0811)ZZE150

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	ZRE151,ZZE150 DENSO	02/2007 - 02/2009	1
83530-05010	ZRE151,ZZE150 VALEO	02/2007 - 02/2009	1
83530-60020	ZRE151,ZZE150 YAZAKI	02/2007 - 02/2009	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-52010	NDE150,ZRE151,ZZE150..5F	02/2007 - 02/2009	1
89465 - SENSOR, OXYGEN
89465-02140	ZZE150	02/2007 - 11/2008	1
89465A - SENSOR, OXYGEN NO.2
89465-02270	ZZE150	02/2007 - 11/2008	1
89615 - SENSOR, KNOCK CONTROL
89615-02010	ZZE150	02/2007 - 11/2008	1
Common parts
82715-02500
82715-02510
82715-12L30
82715-2B340
82715-52A40
90119-W0019
90119-W0184
90126-08046
90179-08153
90430-18008
91611-60822

ILLUST NO. 2 OF 6(0702- )ADE15#,NDE150,ZRE15#,ZZE150

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
89257 - COMPUTER, COOLING FAN
89257-12010	ZZE150	02/2007 - 11/2008	1
Common parts
90119-W0019
90119-W0185
93315-14010

ILLUST NO. 5 OF 6(0702-0912)ADE157,NRE150,ZRE15#..5D..6F,6FS ; (0702-1001)ZZE150 ; (0702-1001)ADE150

Click highlighted areas on diagram

STEERING

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84052-71010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84052-71010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84052-71010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-02300	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25	02/2007 - 09/2008	1
84140-02300	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25	02/2007 - 09/2008	1
84140-02300	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25	02/2007 - 09/2008	1
84140-02300	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25	02/2007 - 09/2008	1
84140-02330	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28	02/2007 - 09/2008	1
84140-02330	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28	02/2007 - 09/2008	1
84140-02330	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28	02/2007 - 09/2008	1
84140-02330	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28	02/2007 - 09/2008	1
84140-02340	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29	02/2007 - 09/2008	1
84140-02340	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29	02/2007 - 09/2008	1
84140-02340	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29	02/2007 - 09/2008	1
84140-02340	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29	02/2007 - 09/2008	1
84140-02290	ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24	02/2007 - 09/2008	1
84140-02290	ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24	02/2007 - 09/2008	1
84140-02290	ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24	02/2007 - 09/2008	1
84140-02290	ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24	02/2007 - 09/2008	1
84247A - SWITCH, STEERING PAD, LH
84247-02010	NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
84247-02010	NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
84247-02010	NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
84247-02010	NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0D070	ZZE150..SOL	02/2007 - 11/2008	1
84306-0D070	ZZE150..SOL	02/2007 - 11/2008	1
84306-0D070	ZZE150..SOL	02/2007 - 11/2008	1
84306-0D070	ZZE150..SOL	02/2007 - 11/2008	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84450-12200	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84450-12200	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84450-12200	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-02420	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31	02/2007 - 09/2008	1
84652-02420	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31	02/2007 - 09/2008	1
84652-02420	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31	02/2007 - 09/2008	1
84652-02420	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31	02/2007 - 09/2008	1
84652-02410	ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30	02/2007 - 09/2008	1
84652-02410	ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30	02/2007 - 09/2008	1
84652-02410	ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30	02/2007 - 09/2008	1
84652-02410	ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30	02/2007 - 09/2008	1
89245B - SENSOR, STEERING
89245-02040	NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 03/2009	1
89245-02040	NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 03/2009	1
89245-02040	NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 03/2009	1
89245-02040	NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 03/2009	1
Common parts
90159-50199
90159-50265
93319-14012
Linked diagrams
4501

ILLUST NO. 5 OF 6(0702-1001)ADE150..LHD..3D..DCRL ; (0702-1001)NDE150..5D..6FS..TERRA ; (0702-1001)N

Click highlighted areas on diagram

STEERING

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84052-71010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84052-71010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84052-71010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-02300	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25	02/2007 - 09/2008	1
84140-02300	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25	02/2007 - 09/2008	1
84140-02300	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25	02/2007 - 09/2008	1
84140-02300	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25	02/2007 - 09/2008	1
84140-02330	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28	02/2007 - 09/2008	1
84140-02330	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28	02/2007 - 09/2008	1
84140-02330	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28	02/2007 - 09/2008	1
84140-02330	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28	02/2007 - 09/2008	1
84140-02340	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29	02/2007 - 09/2008	1
84140-02340	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29	02/2007 - 09/2008	1
84140-02340	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29	02/2007 - 09/2008	1
84140-02340	ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29	02/2007 - 09/2008	1
84140-02290	ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24	02/2007 - 09/2008	1
84140-02290	ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24	02/2007 - 09/2008	1
84140-02290	ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24	02/2007 - 09/2008	1
84140-02290	ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24	02/2007 - 09/2008	1
84247A - SWITCH, STEERING PAD, LH
84247-02010	NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
84247-02010	NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
84247-02010	NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
84247-02010	NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0D070	ZZE150..SOL	02/2007 - 11/2008	1
84306-0D070	ZZE150..SOL	02/2007 - 11/2008	1
84306-0D070	ZZE150..SOL	02/2007 - 11/2008	1
84306-0D070	ZZE150..SOL	02/2007 - 11/2008	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84450-12200	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84450-12200	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84450-12200	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-02420	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31	02/2007 - 09/2008	1
84652-02420	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31	02/2007 - 09/2008	1
84652-02420	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31	02/2007 - 09/2008	1
84652-02420	ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31	02/2007 - 09/2008	1
84652-02410	ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30	02/2007 - 09/2008	1
84652-02410	ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30	02/2007 - 09/2008	1
84652-02410	ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30	02/2007 - 09/2008	1
84652-02410	ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30	02/2007 - 09/2008	1
89245B - SENSOR, STEERING
89245-02040	NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 03/2009	1
89245-02040	NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 03/2009	1
89245-02040	NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 03/2009	1
89245-02040	NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 03/2009	1
Common parts
90159-50199
90159-50265
93319-14012
Linked diagrams
4501

ILLUST NO. 4 OF 6(0702- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
84152 - SWITCH, HEADLAMP LEVELING
84152-02040	ZZE150	02/2007 - 11/2008	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-02131	ZZE150	02/2008 - 11/2008	1
84332-02130	ADE15#,NDE150,ZRE151,ZZE150	02/2007 - 01/2008	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-0F010	ZZE150	02/2007 - 11/2008	1
84986 - SWITCH, VEHICLE STABILITY CONTROL
84986-12010	ADE150,NDE150,ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH)	02/2007 - 05/2008	1
84988-05020	ZZE150 VSC-WITH(W/CUT OFF SWITCH)	06/2008 - 11/2008	1
85500 - LIGHTER ASSY, CIGARETTE
85500-09060	ZZE150 CIGARETTE LIGHTER-12V SOCKET	01/2008 - 11/2008	1
85500-09060	ZZE150 ASH TRAY-WITHOUT	01/2008 - 11/2008	1
85500-09060	ZZE150	02/2007 - 11/2008	1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0D020	ZZE150 ASH TRAY-WITHOUT	02/2007 - 11/2008	1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-02040	ZZE150 ASH TRAY-WITHOUT	02/2007 - 11/2008	1
Linked diagrams
8302
8417

ILLUST NO. 6 OF 6(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & BACK DOOR

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-12730	ZRE151,ZZE150	02/2007 - 02/2009	1
83320 - GAGE ASSY, FUEL SENDER
83320-12730	ZRE151,ZZE150	02/2007 - 02/2009	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-0D030	ZZE150	02/2007 - 11/2008	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-0D030	ZZE150	02/2007 - 11/2008	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-0D030	ZZE150..5D	02/2007 - 11/2008	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-0D030	ZZE150..5D	02/2007 - 11/2008	2
84656A - BEZEL, SWITCH
84656-02060E0	NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC) GREGE,TRIM4#	02/2007 - 03/2009	2
84656-02060B0	NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC) DK.GRAY,TRIM1#	02/2007 - 03/2009	2
84656A - BEZEL, SWITCH
84656-02060E0	NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC) GREGE,TRIM4#	02/2007 - 03/2009	2
84656-02060B0	NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC) DK.GRAY,TRIM1#	02/2007 - 03/2009	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0D030	ZZE150	02/2007 - 11/2008	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0D030	ZZE150	02/2007 - 11/2008	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-0D030	NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC)	02/2007 - 03/2009	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-0D030	NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC)	02/2007 - 03/2009	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-02200	ZZE150..RHD..5D..SOL	02/2007 - 11/2008	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-02200	ZZE150..RHD..5D..SOL	02/2007 - 11/2008	1
84840G - SWITCH ASSY, BACK DOOR OPENER
84840-28030	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
Common parts
90119-W0030
90164-40103
90166-70001

ILLUST NO. 3 OF 6(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150..RHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-28010	4ZZFE..ZZE150	02/2007 - 11/2008	1
28371 - RELAY, IGNITION, NO.1
90987-W2001	4ZZFE..ZZE150	02/2007 - 11/2008	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-46010	ADE15#,NDE150,ZRE151,ZZE150	02/2007 - 09/2008	1
81980-0D040	ZZE150	10/2008 - 11/2008	1
82210J - FUSIBLE LINK
90982-08294	ZZE150 40A,TERM.:FEMALE,GRN	02/2007 - 11/2008	1
90982-08296	ZZE150 50A,TERM.:FEMALE,RED	02/2007 - 11/2008	1
90982-08295	ZZE150 30A,TERM.:FEMALE,PNK	02/2007 - 11/2008	1
82210J - FUSIBLE LINK
90982-08294	ZZE150 40A,TERM.:FEMALE,GRN	02/2007 - 11/2008	1
90982-08296	ZZE150 50A,TERM.:FEMALE,RED	02/2007 - 11/2008	1
90982-08295	ZZE150 30A,TERM.:FEMALE,PNK	02/2007 - 11/2008	1
82241J - PIN, SHORT
82241-42010	ZZE150..SOL AIR CONDITIONER-AUTO(DUAL MODE CONTROL)	02/2007 - 11/2008	1
82241-42010	ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)	02/2007 - 11/2008	1
82600F - FUSE, FUSE BLOCK
90080-82050	ZZE150 7.5A,MINI FUSE,BROWN	02/2007 - 11/2008	1
90080-82051	ZZE150 10A,MINI FUSE,RED	02/2007 - 11/2008	1
90080-82052	ZZE150 15A,MINI FUSE,BLUE	02/2007 - 11/2008	1
90080-82053	ZZE150 20A,MINI FUSE,YELLOW	02/2007 - 11/2008	1
90080-82054	ZZE150 30A,MINI FUSE,GREEN	02/2007 - 11/2008	1
90080-82055	ZZE150 25A,MINI FUSE	02/2007 - 11/2008	1
82600F - FUSE, FUSE BLOCK
90080-82050	ZZE150 7.5A,MINI FUSE,BROWN	02/2007 - 11/2008	1
90080-82051	ZZE150 10A,MINI FUSE,RED	02/2007 - 11/2008	1
90080-82052	ZZE150 15A,MINI FUSE,BLUE	02/2007 - 11/2008	1
90080-82053	ZZE150 20A,MINI FUSE,YELLOW	02/2007 - 11/2008	1
90080-82054	ZZE150 30A,MINI FUSE,GREEN	02/2007 - 11/2008	1
90080-82055	ZZE150 25A,MINI FUSE	02/2007 - 11/2008	1
82660B - BLOCK ASSY, RELAY
82755-12010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
82660C - BLOCK ASSY, RELAY
82755-12020	ADE15#;ZZE150..RHD;NDE150..5F,5FS;ZZE150..LHD..3D;ZRE151..SOL..HTWC;ZZE150..LHD..5D..SOL;ZRE151..5D..5FS..TERRA;ZRE151..3D..TERRA..HTWC	02/2007 - 03/2009	1
82673A - BRACKET, JUNCTION BLOCK
82673-12200	NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
82673B - BRACKET, JUNCTION BLOCK
82673-12210	NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
82673C - BRACKET, JUNCTION BLOCK
82673-12220	NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-02320	NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK)	02/2007 - 03/2009	1
82730-02310	NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
82730-02370	NDE150..RHD..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..RHD..SOL..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)	02/2007 - 03/2009	1
82730-02360	NDE150..RHD..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..RHD..SOL..(DCR,DCRL,HTWC) INTERMITTENT WIPER-AUTO(RAIN SENSOR)	02/2007 - 03/2009	1
82821B - COVER, CONNECTOR
82821-52020	ZZE150	02/2007 - 11/2008	1
82861 - BRACKET, COMPUTER INTEGRATION, NO.1
82861-12010	ZZE150..RHD	02/2007 - 11/2008	1
82861-12010	ZZE150..RHD..SOL POWER DOOR LOCK-WITH(DOUBLE LOCK)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)	02/2007 - 11/2008	1
82861-12010	ZZE150..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK)	02/2007 - 11/2008	1
82861-12010	ZZE150..RHD..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)	02/2007 - 11/2008	1
84340 - SWITCH ASSY, STOP LAMP
84340-09020	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-51010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
84520 - SWITCH ASSY, CLUTCH START
84520-42010	NDE150..5F;ADE15#,ZRE151,ZZE150..(5F,6F)..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
84520 - SWITCH ASSY, CLUTCH START
84520-42010	NDE150..5F;ADE15#,ZRE151,ZZE150..(5F,6F)..(DCR,DCRL,HTWC)	02/2007 - 03/2009	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-33010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90080-87031	ZZE150..SOL AIR CONDITIONER-AUTO(DUAL MODE CONTROL)	02/2007 - 11/2008	1
90080-87031	ZZE150	02/2007 - 11/2008	1
85916D - RELAY, FOG LAMP
90080-87019	ZZE150..RHD..5D..SOL FRONT FOG LAMP-WITHOUT	02/2007 - 11/2008	1
90080-87019	ZZE150..SOL	02/2007 - 11/2008	1
85916L - RELAY, REAR FOG LAMP
90080-87019	ZZE150..RHD..5D SOUTH AFRICA SPEC	02/2007 - 11/2008	1
90080-87019	ZZE150	02/2007 - 11/2008	1
85930G - RELAY, ACC
90080-87019	ZZE150	02/2007 - 11/2008	1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-02040	ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)	02/2007 - 11/2008	1
85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL
85970-12020	ZZE150..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK)	02/2007 - 11/2008	1
89650 - COMPUTER ASSY, POWER STEERING
89650-02400	ZZE150..RHD	02/2007 - 11/2008	1
Common parts
90119-W0030
90119-W0156
90159-60546
90159-70004
90159-W0007
90159-W0019
90178-W0019
90179-06110
91631-B0618
93315-14012
94120-41000

ILLUST NO. 3 OF 7(0702- )ADE15#,NDE150,ZRE15#,ZZE150

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

Part #	Description	Period	Qty
82210J - FUSIBLE LINK
90982-08294	ZZE150 40A,TERM.:FEMALE,GRN	02/2007 - 11/2008	1
90982-08296	ZZE150 50A,TERM.:FEMALE,RED	02/2007 - 11/2008	1
90982-08295	ZZE150 30A,TERM.:FEMALE,PNK	02/2007 - 11/2008	1
82600F - FUSE, FUSE BLOCK
90080-82050	ZZE150 7.5A,MINI FUSE,BROWN	02/2007 - 11/2008	1
90080-82051	ZZE150 10A,MINI FUSE,RED	02/2007 - 11/2008	1
90080-82052	ZZE150 15A,MINI FUSE,BLUE	02/2007 - 11/2008	1
90080-82053	ZZE150 20A,MINI FUSE,YELLOW	02/2007 - 11/2008	1
90080-82054	ZZE150 30A,MINI FUSE,GREEN	02/2007 - 11/2008	1
90080-82055	ZZE150 25A,MINI FUSE	02/2007 - 11/2008	1
82616 - PULLER, FUSE
82616-58010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-12280	ZRE151,ZZE150	02/2007 - 02/2009	1
82630 - HOLDER ASSY, FUSE
82631-02020	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.2	02/2007 - 03/2009	1
82631-02010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.1	02/2007 - 03/2009	1
82631-02030	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.3	02/2007 - 03/2009	1
82630 - HOLDER ASSY, FUSE
82631-02020	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.2	02/2007 - 03/2009	1
82631-02010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.1	02/2007 - 03/2009	1
82631-02030	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.3	02/2007 - 03/2009	1
82630 - HOLDER ASSY, FUSE
82631-02020	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.2	02/2007 - 03/2009	1
82631-02010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.1	02/2007 - 03/2009	1
82631-02030	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.3	02/2007 - 03/2009	1
82641 - RELAY, INTEGRATION NO.1
82641-47020	ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-02190	ZZE150	02/2007 - 11/2008	1
82663 - COVER, RELAY BLOCK, LOWER
82663-02050	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-02050	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
82817H - PROTECTOR, WIRING HARNESS
82817-02450	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
82824L - PIN, SHORT
82824-20140	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
85916P - RELAY, HEADLAMP
90080-87030	ZZE150	02/2007 - 11/2008	1
85926 - RELAY, HEADLAMP DIMMER
90080-87031	ZZE150	02/2007 - 11/2008	1
85926 - RELAY, HEADLAMP DIMMER
90080-87031	ZZE150	02/2007 - 11/2008	1
85927 - RELAY, COOLING FAN
90080-87019	ZZE150	02/2007 - 11/2008	1
Common parts
82715-02A30
82715-02A40
90119-W0030
90178-W0019
Linked diagrams
8404
8405
8410

ZZE150R-DHMNKW (2007)

ILLUST NO. 1 OF 6(0702-0811)ZZE150

ILLUST NO. 2 OF 6(0702- )ADE15#,NDE150,ZRE15#,ZZE150

ILLUST NO. 5 OF 6(0702-0912)ADE157,NRE150,ZRE15#..5D..6F,6FS ; (0702-1001)ZZE150 ; (0702-1001)ADE150

ILLUST NO. 5 OF 6(0702-1001)ADE150..LHD..3D..DCRL ; (0702-1001)NDE150..5D..6FS..TERRA ; (0702-1001)N

ILLUST NO. 4 OF 6(0702- )RHD

ILLUST NO. 6 OF 6(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150

ILLUST NO. 3 OF 6(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150..RHD

ILLUST NO. 3 OF 7(0702- )ADE15#,NDE150,ZRE15#,ZZE150

Part Price Details
