ZZE150R-DHMNKW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Nov 2008
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702-0811)ZZE150..RHD

Click highlighted areas on diagram

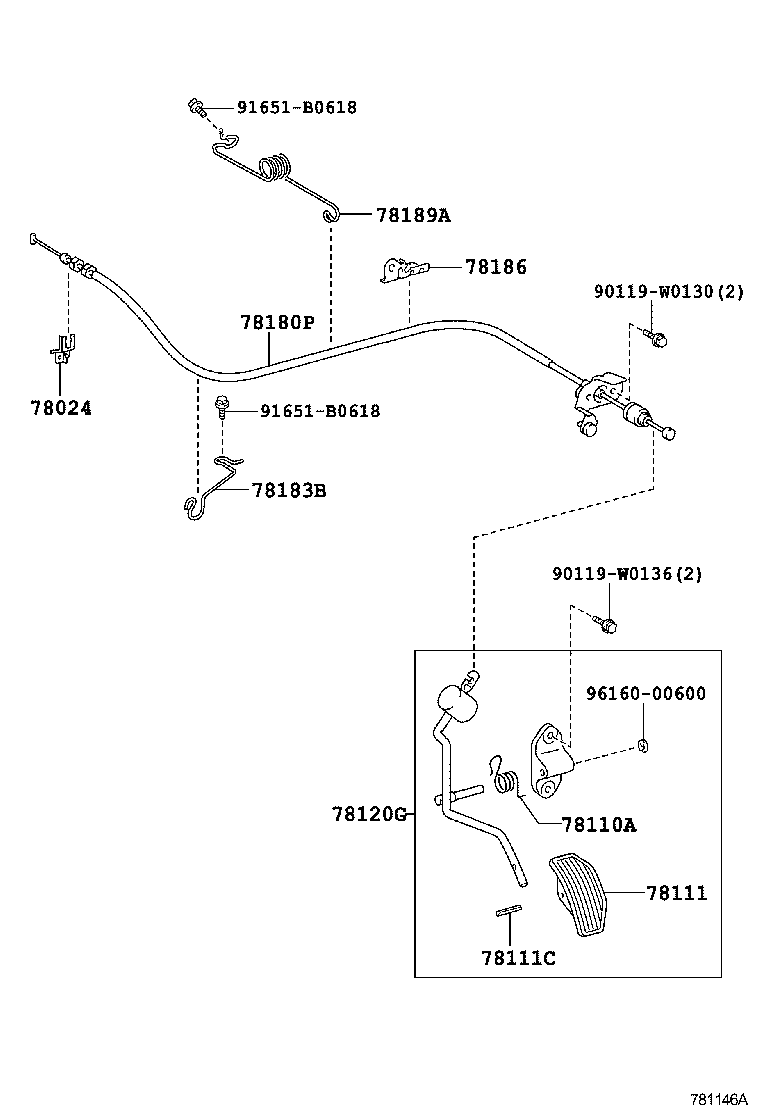

diagram 78024 78110A 78111 78111C 78120G 78180P 78183B 78186 78189A 90119W0130 90119W0136 91651B0618 91651B0618 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-12090

ZZE150

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03307

ZZE150..RHD

 1
78111 - PEDAL, ACCELERATOR
78111-02090

ZZE150..RHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

ZZE150

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-02140

ZZE150..RHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-02350

ZZE150..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12260

ZZE150..RHD

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12440

ZZE150..RHD

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12150

ZZE150..RHD

 1
Common parts
90119-W0130
90119-W0136
91651-B0618
96160-00600
