ZZE150R-DHMNKW (2007)
Toyota Auris/Hybrid (Ukp)
Production
Feb 2007
-
Nov 2008
Engine
4ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

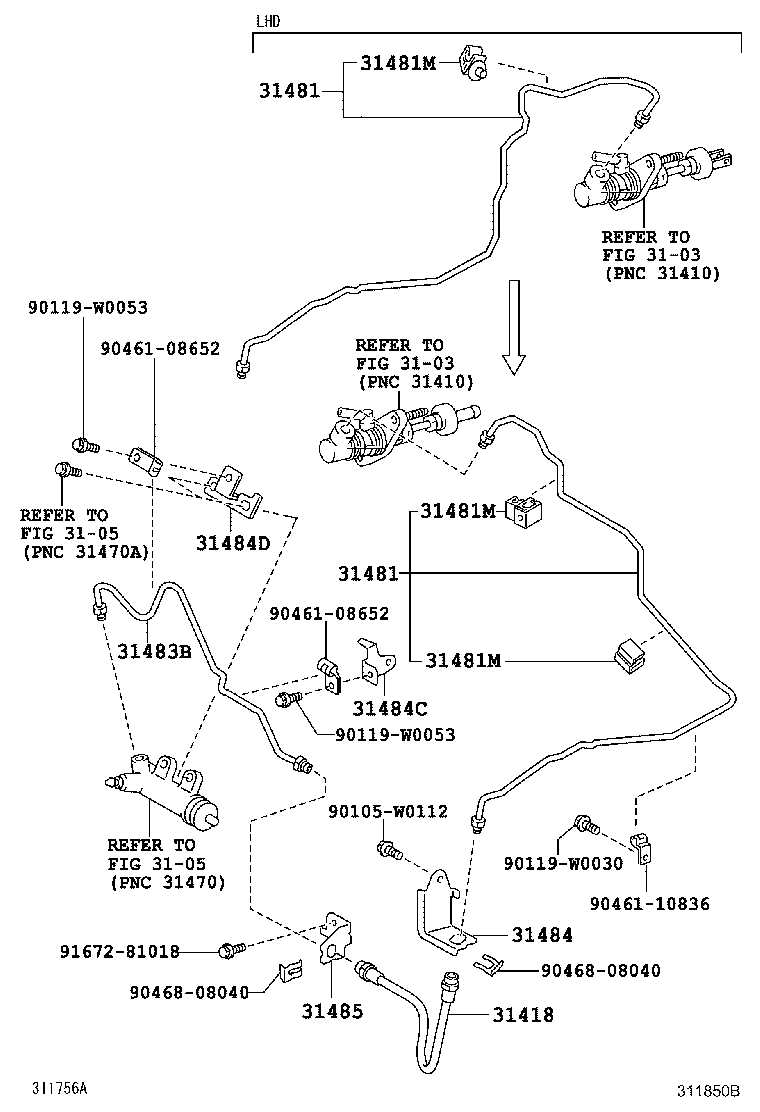

ILLUST NO. 2 OF 2(0702- )ZZE150
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-W2019 |
ZZE150 |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-02240 |
ZZE150..RHD |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-02240 |
ZZE150..RHD |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01C82 |
ZZE150..RHD |
2 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01C82 |
ZZE150..RHD |
2 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01C82 |
ZZE150..RHD |
2 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-12090 |
ZZE150 (J) |
1 | ||
| 31483-02110 |
ZZE150 (L) |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-02090 |
ZZE150 |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-52150 |
ZRE151,ZZE150..5F |
1 | ||
| 31484D - BRACKET, CLUTCH TUBE, NO.2 | ||||
| 31484-20460 |
ZZE150 |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-02100 |
ZZE150 |
1 | ||
| Common parts | ||||
| 90105-W0112 | ||||
| 90119-W0030 | ||||
| 90119-W0053 | ||||
| 90461-08652 | ||||
| 90461-10836 | ||||
| 90468-08040 | ||||
| 91672-81018 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
ILLUST NO. 1 OF 2(0702-1210)ZRE151..RHD..6F ; (0702- )RHD..5F,6F..HTWC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31311-12370 |
ZZE150..RHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14047 |
ZZE150 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ZZE150 |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ZZE150 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ZZE150 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ZZE150 |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
ZZE150 |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
ZZE150 |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-42010 |
ZZE150 |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
ZZE150..RHD |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
ZZE150..RHD |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-12270 |
ZZE150..RHD |
1 | ||
| Common parts | ||||
| 90119-W0141 | ||||
| 90179-10088 | ||||
| 91635-60832 | ||||
| Linked diagrams | ||||
| 8401 | ||||
