ZZE150R-DHMNKW (2007)
Toyota Auris/Hybrid (Ukp)
Production
Feb 2007
-
Nov 2008
Engine
4ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0702-0811)4ZZFE

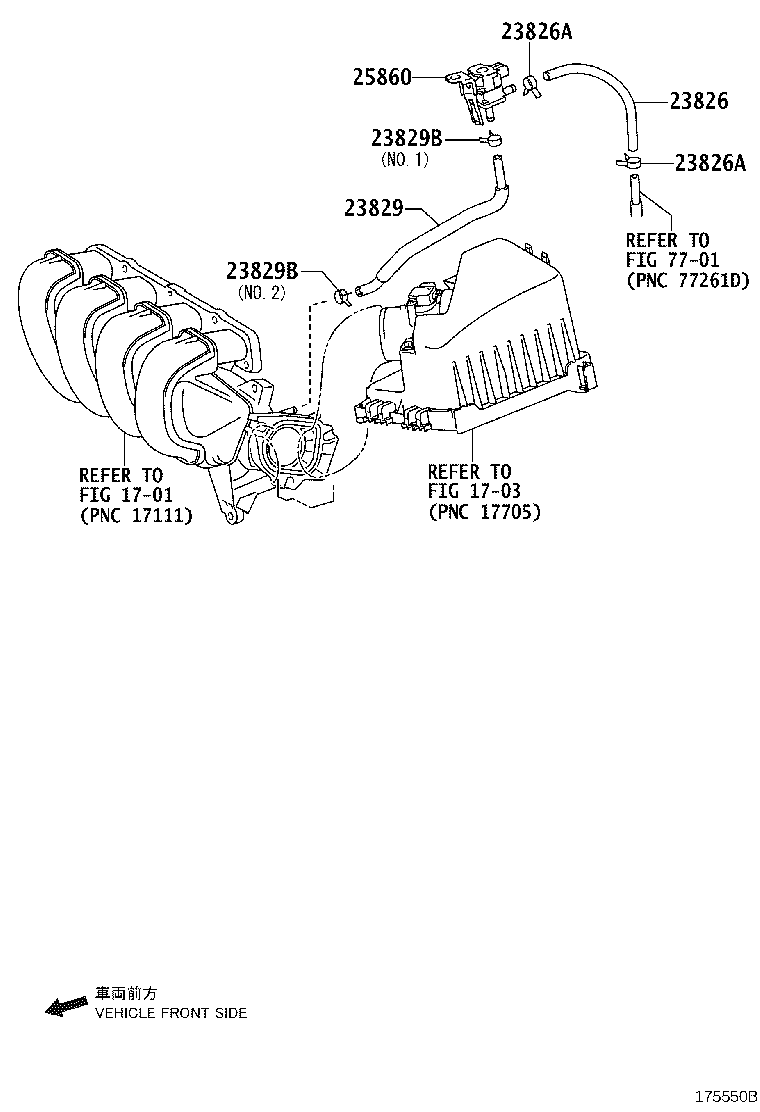

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0D070 |
4ZZFE..ZZE150 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51300 |
4ZZFE..ZZE150 |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51300 |
4ZZFE..ZZE150 |
2 | ||
| 23829 - HOSE, FUEL VAPOR FEED, NO.3 | ||||
| 23829-0D090 |
4ZZFE..ZZE150 (L) |
1 | ||
| 23829-22150 |
4ZZFE..ZZE150 (J) |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-51300 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 90466-W0005 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 90466-W0005 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-51300 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 90466-W0005 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 90466-W0005 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-21100 |
4ZZFE..ZZE150 |
1 | ||
| Linked diagrams | ||||
| 1701 | ||||
| 1703 | ||||
| 7701 | ||||
