ZZE150R-DHMDKW (2007)
Toyota Auris/Hybrid (Ukp)

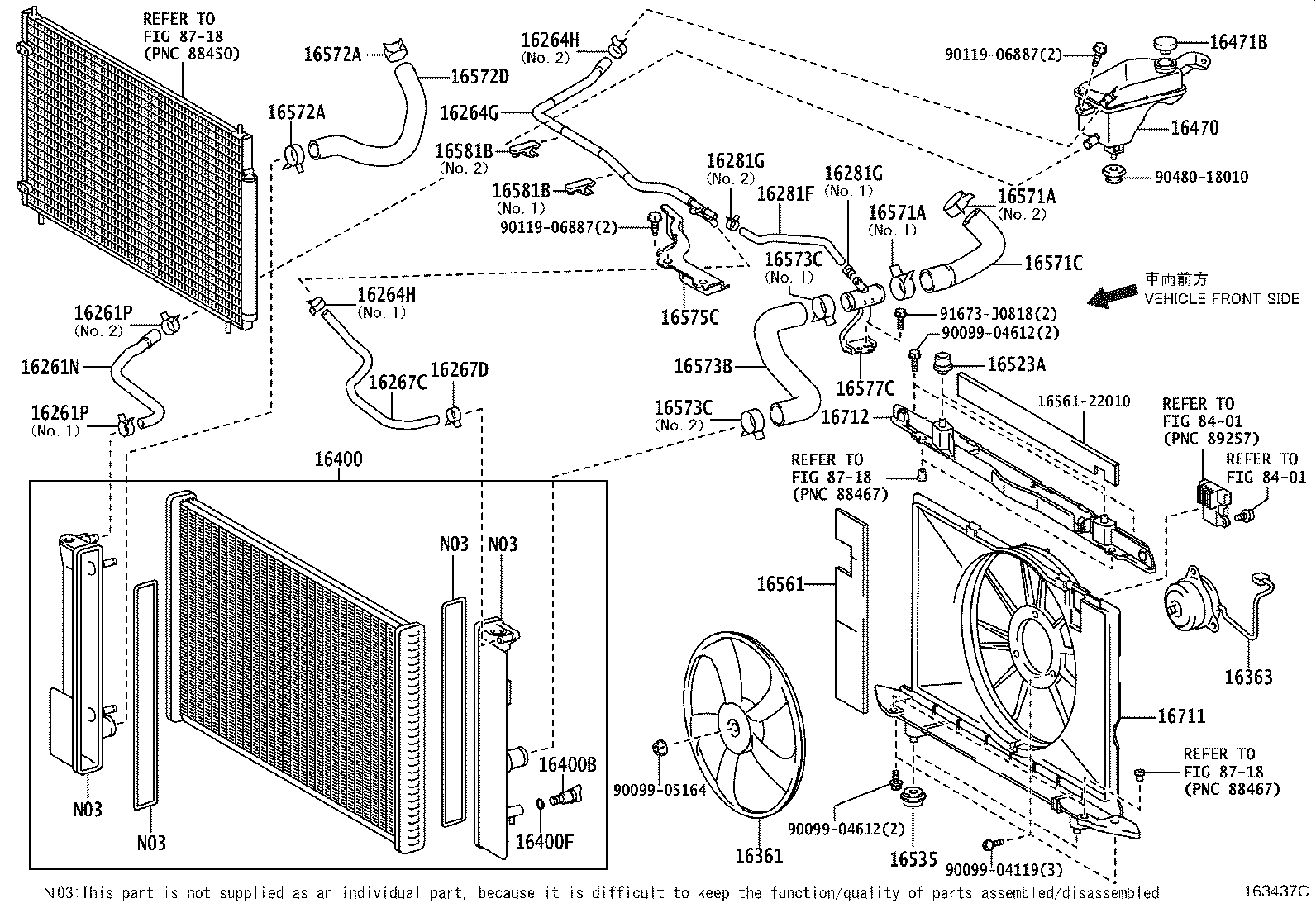

ILLUST NO. 1 OF 2(0702-0811)4ZZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-0D240 |
4ZZFE..ZZE150 |
1 | ||
| 16261-0D140 |
1ZRFE,4ZZFE..ZRE151,ZZE150 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52201 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 96136-52501 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52201 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 96136-52501 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-0D140 |
4ZZFE..ZZE150 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 96136-52101 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 96136-52101 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-0D010 |
1ZRFE,4ZZFE..ZRE151,ZZE150 |
1 | ||
| 16267-0D020 |
4ZZFE..ZZE150 |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-15022 |
4ZZFE..ZZE150 |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-0D010 |
4ZZFE..ZZE150 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-51901 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 90467-17013 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-51901 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 90467-17013 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 16361 - FAN | ||||
| 16361-0D150 |
4ZZFE..ZZE150 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0D120 |
4ZZFE..ZZE150 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0D400 |
4ZZFE..ZZE150 |
1 | ||
| 16400-0D481 |
1ZRFE,4ZZFE..ZRE151,ZZE150 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
4ZZFE..ZZE150 (J) |
1 | ||
| 16417-0Q040 |
4ZZFE..ZZE150 (L) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
4ZZFE..ZZE150 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-0D030 |
4ZZFE..ZZE150 |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-51010 |
4ZZFE..ZZE150 |
1 | ||
| 16475-28120 |
1ZRFE,4ZZFE..ZRE151,ZZE150 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D040 |
4ZZFE..ZZE150 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0D080 |
4ZZFE..ZZE150 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-22030 |
4ZZFE..ZZE150 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 96136-43901 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 96136-43901 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0D190 |
4ZZFE..ZZE150 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
4ZZFE..ZZE150 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
4ZZFE..ZZE150 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0D150 |
4ZZFE..ZZE150 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0D010 |
4ZZFE..ZZE150 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 90466-35001 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 90466-35001 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-22020 |
4ZZFE..ZZE150 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0D010 |
4ZZFE..ZZE150 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 16581-22120 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 16581-22120 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0D190 |
4ZZFE..ZZE150 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0D010 |
4ZZFE..ZZE150 |
1 | ||
| Common parts | ||||
| 16561-22010 | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06887 | ||||
| 90480-18010 | ||||
| 91673-J0818 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8718 | ||||

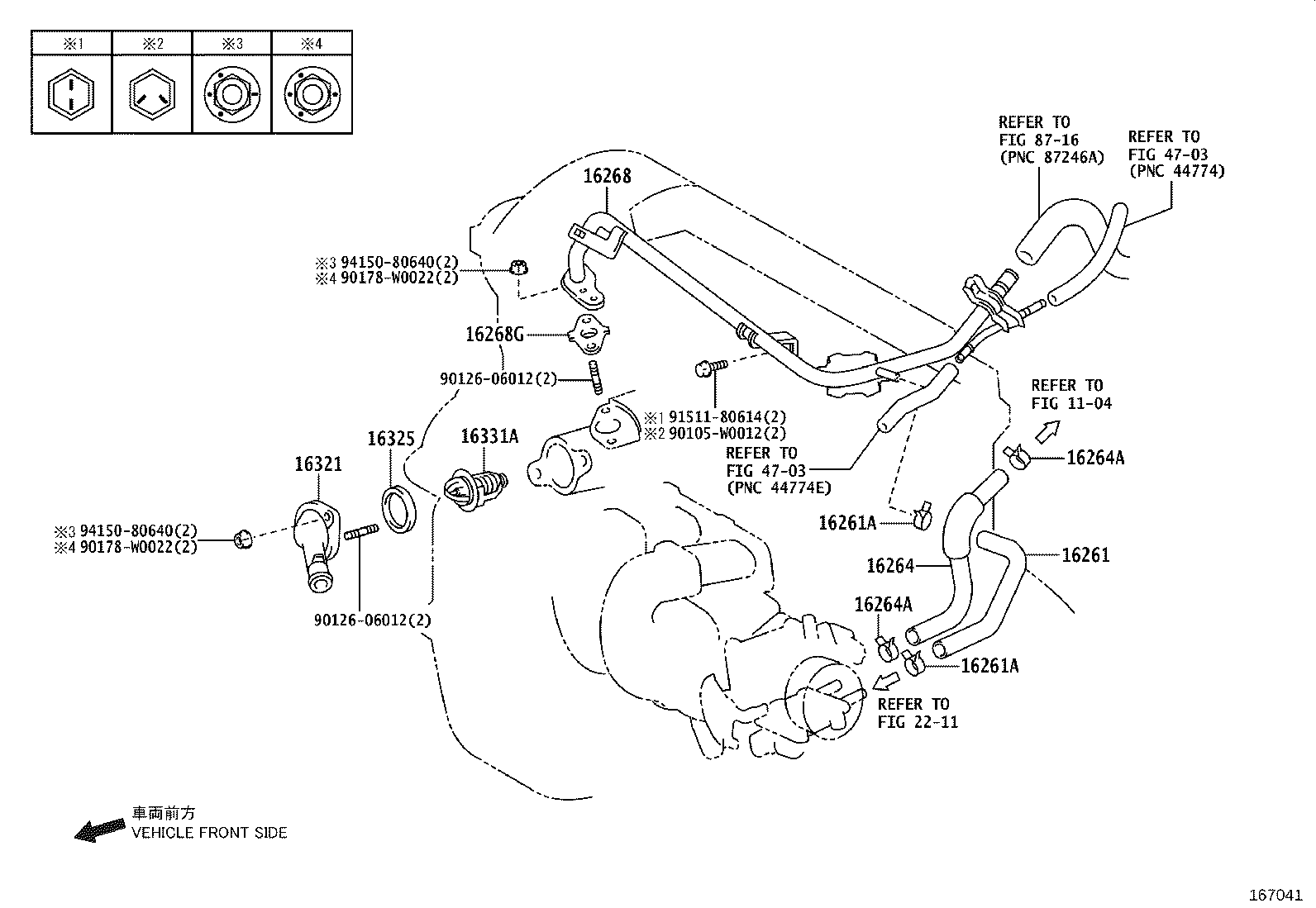

ILLUST NO. 2 OF 2(0702-0811)4ZZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0D080 |
4ZZFE..ZZE150 (L) |
1 | ||
| 16261-22100 |
4ZZFE..ZZE150 (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-W0002 |
4ZZFE..ZZE150 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-W0002 |
4ZZFE..ZZE150 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-22110 |
4ZZFE..ZZE150 (J) |
1 | ||
| 16264-0D090 |
4ZZFE..ZZE150 (L) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-W0002 |
4ZZFE..ZZE150 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-W0002 |
4ZZFE..ZZE150 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-22100 |
4ZZFE..ZZE150 (J) |
1 | ||
| 16268-0D020 |
4ZZFE..ZZE150 (L) |
1 | ||
| 16268-22101 |
4ZZFE..ZZE150 (J) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-22010 |
4ZZFE..ZZE150 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0D030 |
4ZZFE..ZZE150 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
4ZZFE..ZZE150 (J) |
1 | ||
| 16325-0D010 |
4ZZFE..ZZE150 (L) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
4ZZFE..ZZE150 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-W0012 | ||||
| 90126-06012 | ||||
| 90178-W0022 | ||||
| 91511-80614 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
| 4703 | ||||
| 8716 | ||||
