ZZE150L-DHMDKW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Nov 2008
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702- )4ZZFE

Click highlighted areas on diagram

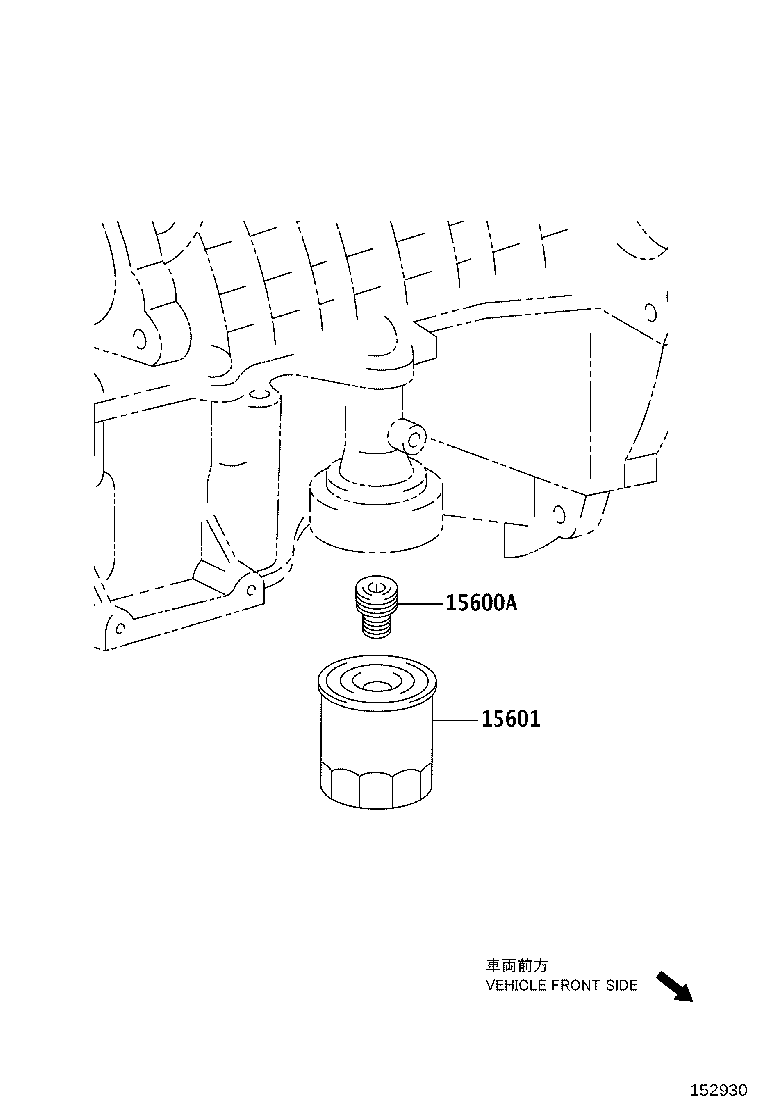

diagram 15600A 15601
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90904-04002

4ZZFE..ZZE150

 1
15601 - FILTER SUB-ASSY, OIL
90915-10003

1ZRFE,4ZZFE..ZRE151,ZZE150

(J),MARK 90915-10003

 1
