ZZE150L-DGMNKW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Nov 2008
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702-0811)ZZE150

Click highlighted areas on diagram

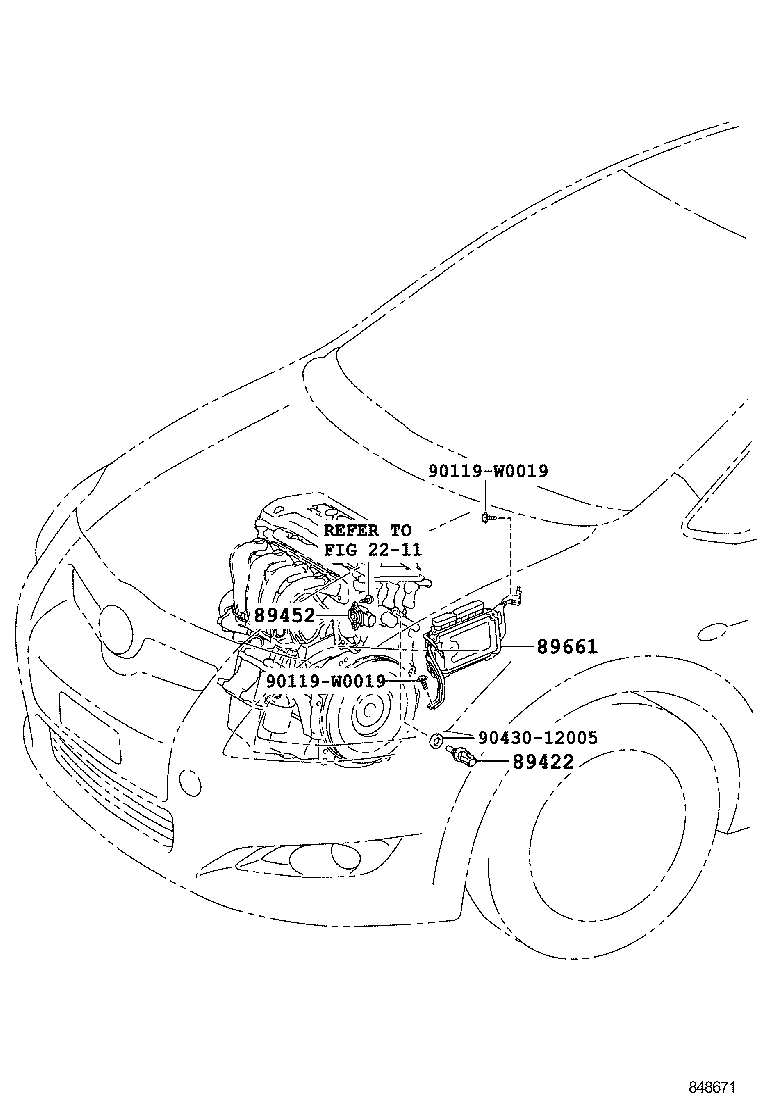

diagram 2211 89422 89452 89661 90119W0019 90119W0019 9043012005
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

ZZE150

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130

ZZE150

 1
89661 - COMPUTER, ENGINE CONTROL
89660-02G70

ZZE150

EXHAUST EMISSION CONTROL-ECE STEP4,WITHOUT(OBD)

 1
89660-02G60

ZZE150

 1
Common parts
90119-W0019
90430-12005
Linked diagrams
2211
