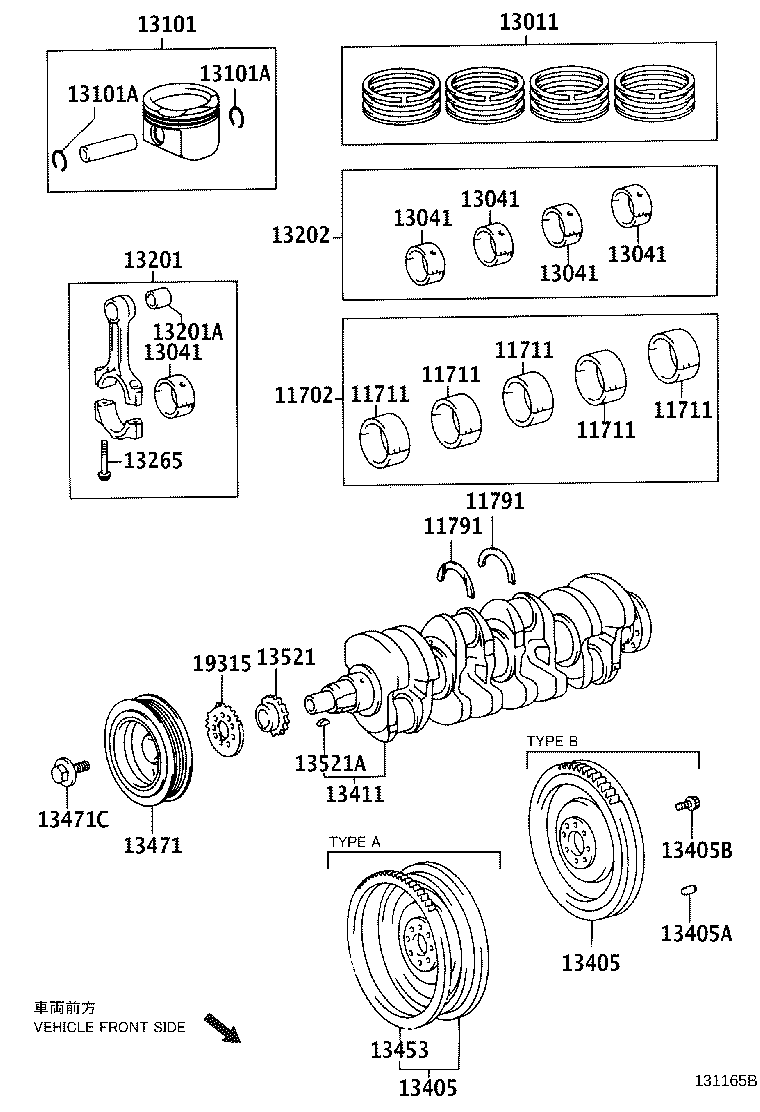

ZZE150L-DGMNKW (2007)
Toyota Auris/Hybrid (Ukp)
(0702- )4ZZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-22011 |
4ZZFE..ZZE150 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0D02103 |
4ZZFE..ZZE150 MARK3,(L):REFER R/M |
5 | ||
| 11701-0D02101 |
4ZZFE..ZZE150 MARK1,(L):REFER R/M |
5 | ||
| 11701-0D02102 |
4ZZFE..ZZE150 MARK2,(L):REFER R/M |
5 | ||
| 11701-0D02104 |
4ZZFE..ZZE150 MARK4,(L):REFER R/M |
5 | ||
| 11701-2201102 |
4ZZFE..ZZE150 MARK2,(J):REFER R/M |
5 | ||
| 11701-2201101 |
4ZZFE..ZZE150 MARK1,(J):REFER R/M |
5 | ||
| 11701-2201103 |
4ZZFE..ZZE150 MARK3,(J):REFER R/M |
5 | ||
| 11701-2201104 |
4ZZFE..ZZE150 MARK4,(J):REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0D02103 |
4ZZFE..ZZE150 MARK3,(L):REFER R/M |
5 | ||
| 11701-0D02101 |
4ZZFE..ZZE150 MARK1,(L):REFER R/M |
5 | ||
| 11701-0D02102 |
4ZZFE..ZZE150 MARK2,(L):REFER R/M |
5 | ||
| 11701-0D02104 |
4ZZFE..ZZE150 MARK4,(L):REFER R/M |
5 | ||
| 11701-2201102 |
4ZZFE..ZZE150 MARK2,(J):REFER R/M |
5 | ||
| 11701-2201101 |
4ZZFE..ZZE150 MARK1,(J):REFER R/M |
5 | ||
| 11701-2201103 |
4ZZFE..ZZE150 MARK3,(J):REFER R/M |
5 | ||
| 11701-2201104 |
4ZZFE..ZZE150 MARK4,(J):REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0D02103 |
4ZZFE..ZZE150 MARK3,(L):REFER R/M |
5 | ||
| 11701-0D02101 |
4ZZFE..ZZE150 MARK1,(L):REFER R/M |
5 | ||
| 11701-0D02102 |
4ZZFE..ZZE150 MARK2,(L):REFER R/M |
5 | ||
| 11701-0D02104 |
4ZZFE..ZZE150 MARK4,(L):REFER R/M |
5 | ||
| 11701-2201102 |
4ZZFE..ZZE150 MARK2,(J):REFER R/M |
5 | ||
| 11701-2201101 |
4ZZFE..ZZE150 MARK1,(J):REFER R/M |
5 | ||
| 11701-2201103 |
4ZZFE..ZZE150 MARK3,(J):REFER R/M |
5 | ||
| 11701-2201104 |
4ZZFE..ZZE150 MARK4,(J):REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0D02103 |
4ZZFE..ZZE150 MARK3,(L):REFER R/M |
5 | ||
| 11701-0D02101 |
4ZZFE..ZZE150 MARK1,(L):REFER R/M |
5 | ||
| 11701-0D02102 |
4ZZFE..ZZE150 MARK2,(L):REFER R/M |
5 | ||
| 11701-0D02104 |
4ZZFE..ZZE150 MARK4,(L):REFER R/M |
5 | ||
| 11701-2201102 |
4ZZFE..ZZE150 MARK2,(J):REFER R/M |
5 | ||
| 11701-2201101 |
4ZZFE..ZZE150 MARK1,(J):REFER R/M |
5 | ||
| 11701-2201103 |
4ZZFE..ZZE150 MARK3,(J):REFER R/M |
5 | ||
| 11701-2201104 |
4ZZFE..ZZE150 MARK4,(J):REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0D02103 |
4ZZFE..ZZE150 MARK3,(L):REFER R/M |
5 | ||
| 11701-0D02101 |
4ZZFE..ZZE150 MARK1,(L):REFER R/M |
5 | ||
| 11701-0D02102 |
4ZZFE..ZZE150 MARK2,(L):REFER R/M |
5 | ||
| 11701-0D02104 |
4ZZFE..ZZE150 MARK4,(L):REFER R/M |
5 | ||
| 11701-2201102 |
4ZZFE..ZZE150 MARK2,(J):REFER R/M |
5 | ||
| 11701-2201101 |
4ZZFE..ZZE150 MARK1,(J):REFER R/M |
5 | ||
| 11701-2201103 |
4ZZFE..ZZE150 MARK3,(J):REFER R/M |
5 | ||
| 11701-2201104 |
4ZZFE..ZZE150 MARK4,(J):REFER R/M |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-0D020 |
4ZZFE..ZZE150 STD,(L) |
2 | ||
| 11791-22020 |
4ZZFE..ZZE150 STD,(J) |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-0D020 |
4ZZFE..ZZE150 STD,(L) |
2 | ||
| 11791-22020 |
4ZZFE..ZZE150 STD,(J) |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-22220 |
4ZZFE..ZZE150 STD,(J) |
1 | ||
| 13011-0D110 |
4ZZFE..ZZE150 STD,(L) |
1 | ||
| 13011-0D111 |
4ZZFE..ZZE150 STD,(L) |
1 | ||
| 13011-22221 |
4ZZFE..ZZE150 STD,(J) |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0D04201 |
4ZZFE..ZZE150 MARK1,(L):REFER R/M |
4 | ||
| 13041-2202403 |
4ZZFE..ZZE150 MARK3,(J):REFER R/M |
4 | ||
| 13041-2202402 |
4ZZFE..ZZE150 MARK2,(J):REFER R/M |
4 | ||
| 13041-0D04203 |
4ZZFE..ZZE150 MARK3,(L):REFER R/M |
4 | ||
| 13041-2202401 |
4ZZFE..ZZE150 MARK1,(J):REFER R/M |
4 | ||
| 13041-0D04202 |
4ZZFE..ZZE150 MARK2,(L):REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0D04201 |
4ZZFE..ZZE150 MARK1,(L):REFER R/M |
4 | ||
| 13041-2202403 |
4ZZFE..ZZE150 MARK3,(J):REFER R/M |
4 | ||
| 13041-2202402 |
4ZZFE..ZZE150 MARK2,(J):REFER R/M |
4 | ||
| 13041-0D04203 |
4ZZFE..ZZE150 MARK3,(L):REFER R/M |
4 | ||
| 13041-2202401 |
4ZZFE..ZZE150 MARK1,(J):REFER R/M |
4 | ||
| 13041-0D04202 |
4ZZFE..ZZE150 MARK2,(L):REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0D04201 |
4ZZFE..ZZE150 MARK1,(L):REFER R/M |
4 | ||
| 13041-2202403 |
4ZZFE..ZZE150 MARK3,(J):REFER R/M |
4 | ||
| 13041-2202402 |
4ZZFE..ZZE150 MARK2,(J):REFER R/M |
4 | ||
| 13041-0D04203 |
4ZZFE..ZZE150 MARK3,(L):REFER R/M |
4 | ||
| 13041-2202401 |
4ZZFE..ZZE150 MARK1,(J):REFER R/M |
4 | ||
| 13041-0D04202 |
4ZZFE..ZZE150 MARK2,(L):REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0D04201 |
4ZZFE..ZZE150 MARK1,(L):REFER R/M |
4 | ||
| 13041-2202403 |
4ZZFE..ZZE150 MARK3,(J):REFER R/M |
4 | ||
| 13041-2202402 |
4ZZFE..ZZE150 MARK2,(J):REFER R/M |
4 | ||
| 13041-0D04203 |
4ZZFE..ZZE150 MARK3,(L):REFER R/M |
4 | ||
| 13041-2202401 |
4ZZFE..ZZE150 MARK1,(J):REFER R/M |
4 | ||
| 13041-0D04202 |
4ZZFE..ZZE150 MARK2,(L):REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0D04201 |
4ZZFE..ZZE150 MARK1,(L):REFER R/M |
4 | ||
| 13041-2202403 |
4ZZFE..ZZE150 MARK3,(J):REFER R/M |
4 | ||
| 13041-2202402 |
4ZZFE..ZZE150 MARK2,(J):REFER R/M |
4 | ||
| 13041-0D04203 |
4ZZFE..ZZE150 MARK3,(L):REFER R/M |
4 | ||
| 13041-2202401 |
4ZZFE..ZZE150 MARK1,(J):REFER R/M |
4 | ||
| 13041-0D04202 |
4ZZFE..ZZE150 MARK2,(L):REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-22052 |
4ZZFE..ZZE150 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-20064 |
4ZZFE..ZZE150 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-20064 |
4ZZFE..ZZE150 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-09580 |
4ZZFE..ZZE150 |
4 | ||
| 13201-09581 |
4ZZFE..ZZE150 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73140 |
4ZZFE..ZZE150 |
4 | ||
| 90999-73151 |
4ZZFE..ZZE150 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-22024 |
4ZZFE..ZZE150 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-22020 |
4ZZFE..ZZE150 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0D010 |
4ZZFE..ZZE150 (L),T/P A:REF.ILLUST |
1 | ||
| 13451-22030 |
4ZZFE..ZZE150 TYPE B:REFER ILLUST. |
1 | ||
| 13405-22030 |
4ZZFE..ZZE150 (J),T/P A:REF.ILLUST |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0D010 |
4ZZFE..ZZE150 (L),T/P A:REF.ILLUST |
1 | ||
| 13451-22030 |
4ZZFE..ZZE150 TYPE B:REFER ILLUST. |
1 | ||
| 13405-22030 |
4ZZFE..ZZE150 (J),T/P A:REF.ILLUST |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
4ZZFE..ZZE150 L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90910-02103 |
4ZZFE..ZZE150 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-22040 |
4ZZFE..ZZE150 (J) |
1 | ||
| 13401-0D040 |
4ZZFE..ZZE150 (L) |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-10010 |
4ZZFE..ZZE150 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-0D040 |
4ZZFE..ZZE150 (L) |
1 | ||
| 13470-22041 |
4ZZFE..ZZE150 (J) |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-12127 |
4ZZFE..ZZE150 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0D020 |
4ZZFE..ZZE150 (L) |
1 | ||
| 13521-22020 |
4ZZFE..ZZE150 (J) |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30416 |
4ZZFE..ZZE150 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-22030 |
4ZZFE..ZZE150 |
1 | ||
