ZWE186R-DHXNBW (2012)
Toyota Auris/Hybrid (Ukp)
Production
Oct 2012
-
May 2015
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

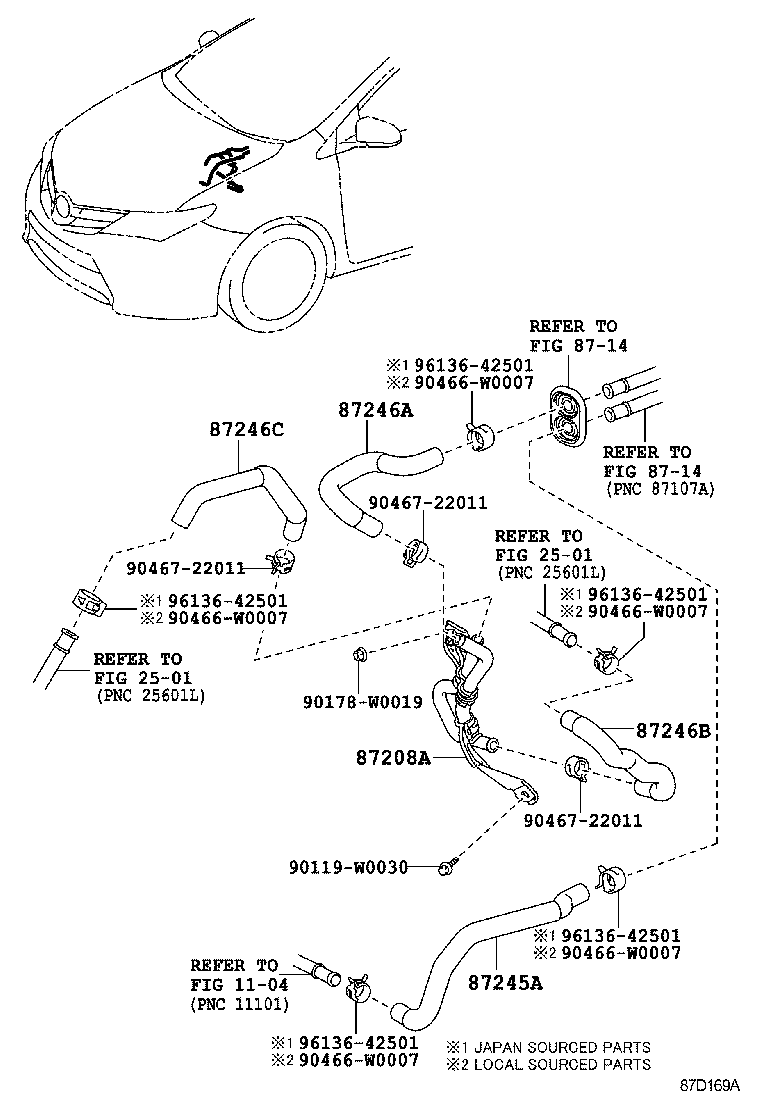

(1210- )ZWE186
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-02060 |
ZWE186 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-02J41 |
ZWE186 |
1 | ||
| 87245-02J40 |
ZWE186 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-02J20 |
ZWE186 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-02J30 |
ZWE186 |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-02N10 |
ZWE186 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| 90466-W0007 | ||||
| 90467-22011 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2501 | ||||
| 8714 | ||||

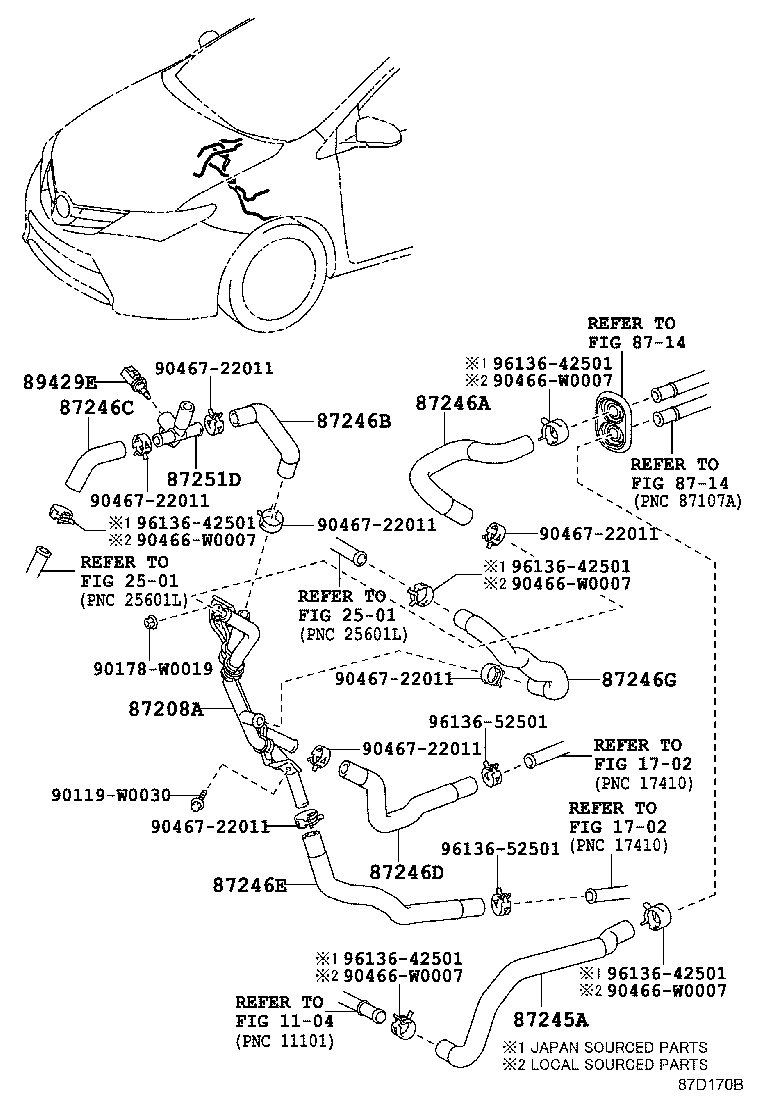

(1210- )ZWE186
Click highlighted areas on diagram
W(EXHAUST HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-02060 |
ZWE186 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-02J41 |
ZWE186 |
1 | ||
| 87245-02J40 |
ZWE186 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-02J20 |
ZWE186 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-02J30 |
ZWE186 |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-02N10 |
ZWE186 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| 90466-W0007 | ||||
| 90467-22011 | ||||
| 96136-42501 | ||||
| 96136-52501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1702 | ||||
| 2501 | ||||
| 8714 | ||||
