ZWE186R-DHXNBW (2012)
Toyota Auris/Hybrid (Ukp)
ILLUST NO. 5 OF 7(1210-1505)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-12620 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 83910-12630 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-02190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02190 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 84490D - SWITCH ASSY, IPA MAIN | ||||
| 84490-02031 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84490-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-02030 |
ZWE186..RHD |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12100 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12101 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12100 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12101 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-12110 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12111 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-12110 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12111 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02100C0 |
ZWE186..N OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER),BLACK |
1 | ||
| 84870-02090C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 84870-02101 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 84870-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02100C0 |
ZWE186..N OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER),BLACK |
1 | ||
| 84870-02090C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 84870-02101 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 84870-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02060 |
ZWE186 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-0D020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-12050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02110 |
ZWE186 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02110 |
ZWE186 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 6 OF 7(1210- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02720 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 84140-02740 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N LIGHT GRADE |
1 | ||
| 84140-02730 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02320C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 84250-02320C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 84250-02320C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 84250-02340C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84308-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84308-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84307-02200 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02670 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE |
1 | ||
| 84652-02540 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 4 OF 7(1210- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-02050 |
ZWE186..RHD..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82755-02050 |
ZWE186..RHD..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12450 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12310 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12320 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12330 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12X70 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 82730-12X80 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82730-12X80 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-12030 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-02040 |
ZWE186..RHD |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09100 |
ZWE186 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02027 |
ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
4 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-02060 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-12030 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-12010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-02070 |
ZWE186..RHD |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89535-12020 |
ZWE186 |
1 | ||
| 89535-12021 |
ZWE186 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89535-12020 |
ZWE186 |
1 | ||
| 89535-12021 |
ZWE186 |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 896B7-12010 |
ZWE186..RHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12C80 |
ZWE186..RHD |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89681-02040 |
ZWE186 |
1 | ||
| 89681-02030 |
ZWE186 TOWING PACKAGE |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0156 | ||||
| 90159-60613 | ||||
| 90159-W0012 | ||||
| 90179-06110 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 7 OF 7(1210- )HB
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47070 |
ZWE186..RHD;ZWE186..LHD..HB;ZWE186..LHD..WG..N |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02210 |
ZWE186 |
1 | ||
| 83320-12A00 |
ZWE186 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02210 |
ZWE186 |
1 | ||
| 83320-12A00 |
ZWE186 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02140 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 84810-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 84810-02140 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02140 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 84810-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 84810-02140 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02140 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
2 | ||
| 84810-0D030 |
ZWE186..RHD..N POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN) |
2 | ||
| 84810-02140 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
2 | ||
| 84810-0D030 |
ZWE186..RHD..N |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02140 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
2 | ||
| 84810-0D030 |
ZWE186..RHD..N POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN) |
2 | ||
| 84810-02140 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
2 | ||
| 84810-0D030 |
ZWE186..RHD..N |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02310 |
ZWE186..RHD..N POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 84820-02330 |
ZWE186..RHD..N |
1 | ||
| 84040-02110 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 84040-02110 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 84820-02330 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N LIGHT GRADE |
1 | ||
| 84820-02310 |
ZWE186..RHD..N |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02310 |
ZWE186..RHD..N POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 84820-02330 |
ZWE186..RHD..N |
1 | ||
| 84040-02110 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 84040-02110 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 84820-02330 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N LIGHT GRADE |
1 | ||
| 84820-02310 |
ZWE186..RHD..N |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-02040 |
NDE180..LHD..6FS;NRE180..LHD..HB..N;ZRE185,ZWE186..HB..N;ADE186,NDE180..HB..6F..N WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 84840-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-05010C0 |
NRE180,ZWE186..RHD..N SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-05010C0 |
NRE180,ZWE186..RHD..N SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-0D020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-12050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 88790F - THERMISTOR ASSY | ||||
| 88790-22131 |
ZWE186 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| Linked diagrams | ||||
| 7504 | ||||

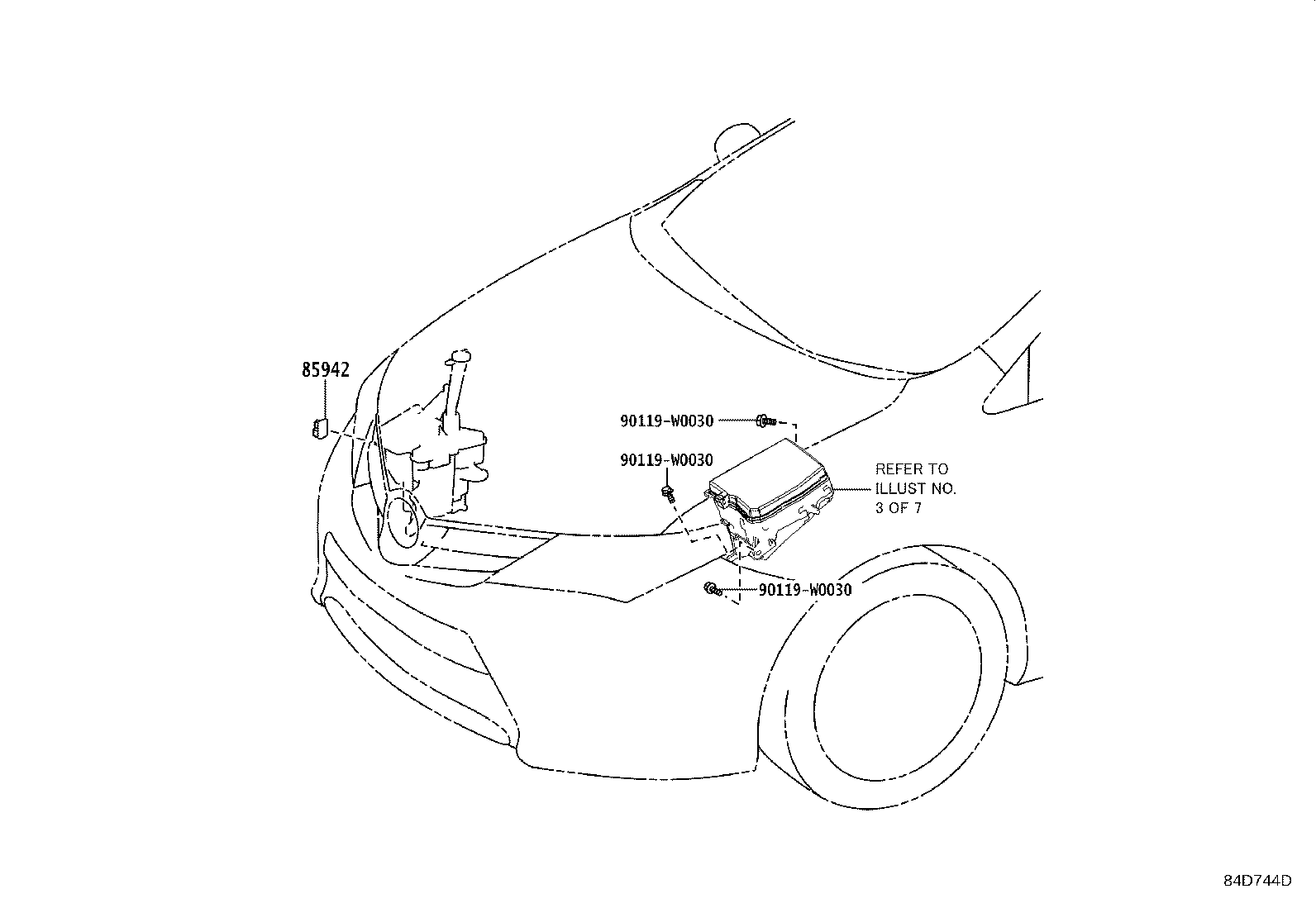

ILLUST NO. 2 OF 7(1210- )ZWE186
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-W0030 | ||||

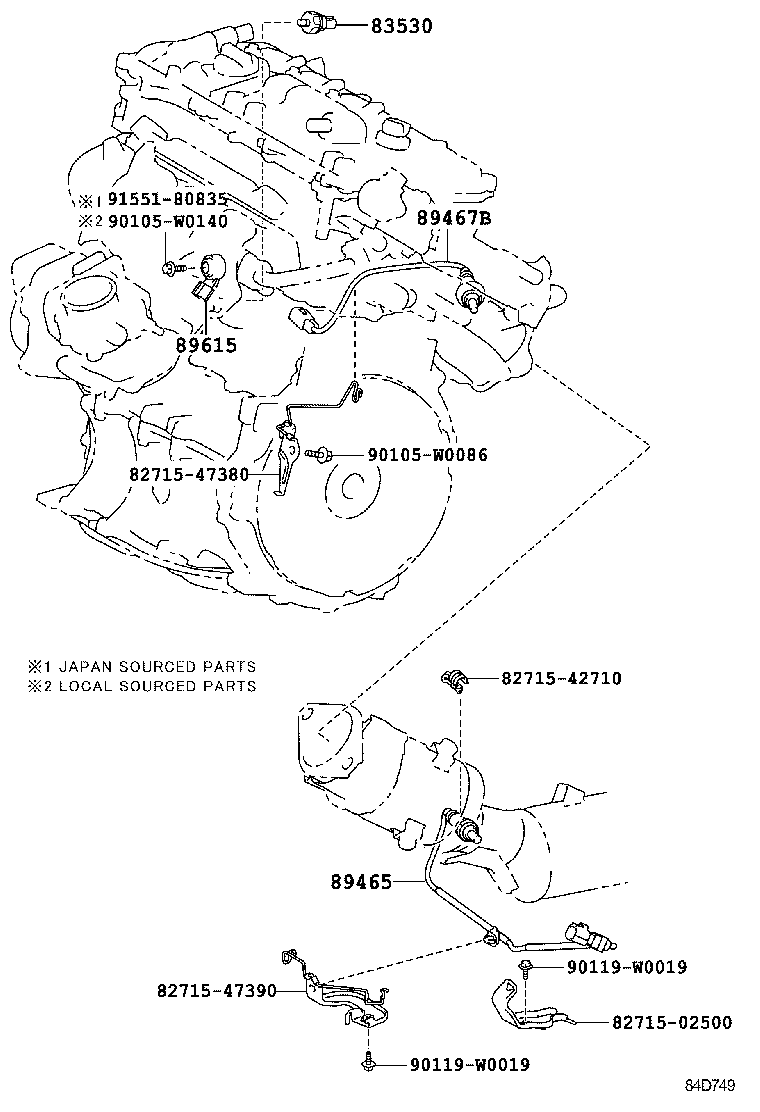

ILLUST NO. 1 OF 7(1210- )ZWE186
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NRE180,ZRE185,ZWE186 DENSO |
1 | ||
| 83530-60020 |
NRE180,ZRE185,ZWE186 YAZAKI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02380 |
ZWE186 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52060 |
ZWE186 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZRE185,ZWE186 (J) |
1 | ||
| 89615-02020 |
ZRE185,ZWE186 (L) |
1 | ||
| Common parts | ||||
| 82715-02500 | ||||
| 82715-42710 | ||||
| 82715-47380 | ||||
| 82715-47390 | ||||
| 90105-W0086 | ||||
| 90105-W0140 | ||||
| 90119-W0019 | ||||
| 91551-80835 | ||||

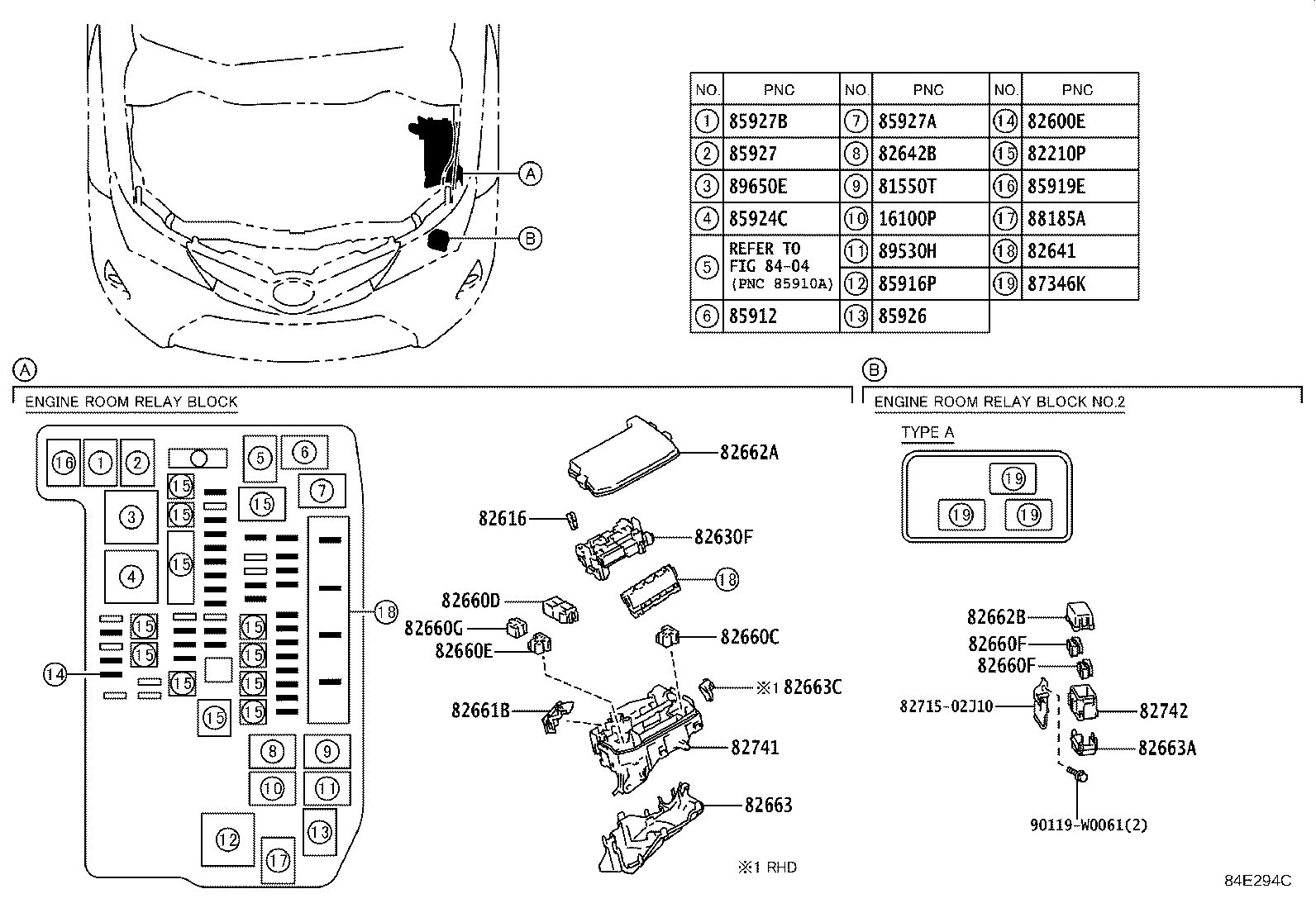

ILLUST NO. 3 OF 7(1210- )ZWE186
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90080-87021 |
2ZRFXE..ZWE186 |
1 | ||
| 81550T - RELAY, BACK UP LAMP | ||||
| 90080-87021 |
ZWE186 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
ZWE186 50A-30A-30A,FEMALE |
1 | ||
| 90982-08297 |
ZWE186 125A,PINK |
1 | ||
| 90982-08305 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08296 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-02070 |
ZWE186 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
ZWE186 |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
ZWE186 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-08010 |
ZWE186 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
ZWE186 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NDE180,ZWE186 |
1 | ||
| 82661B - COVER, RELAY BLOCK, NO.3 | ||||
| 82661-02040 |
ZWE186 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02590 |
ZWE186 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02080 |
ZWE186 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82661-02010 |
ZWE186..RHD |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02080 |
ZWE186 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90080-87030 |
ZWE186 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87020 |
ADE186,ZWE186 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90080-87021 |
ADE186,ZWE186 |
1 | ||
| 89530H - RELAY, TRANSAXLE PARKING LOOK CONTROL | ||||
| 90080-87021 |
ZWE186 |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90080-87030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 82715-02J10 | ||||
| 90119-W0061 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
