ZWE186R-DHXGBW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )2ZRFXE..HB

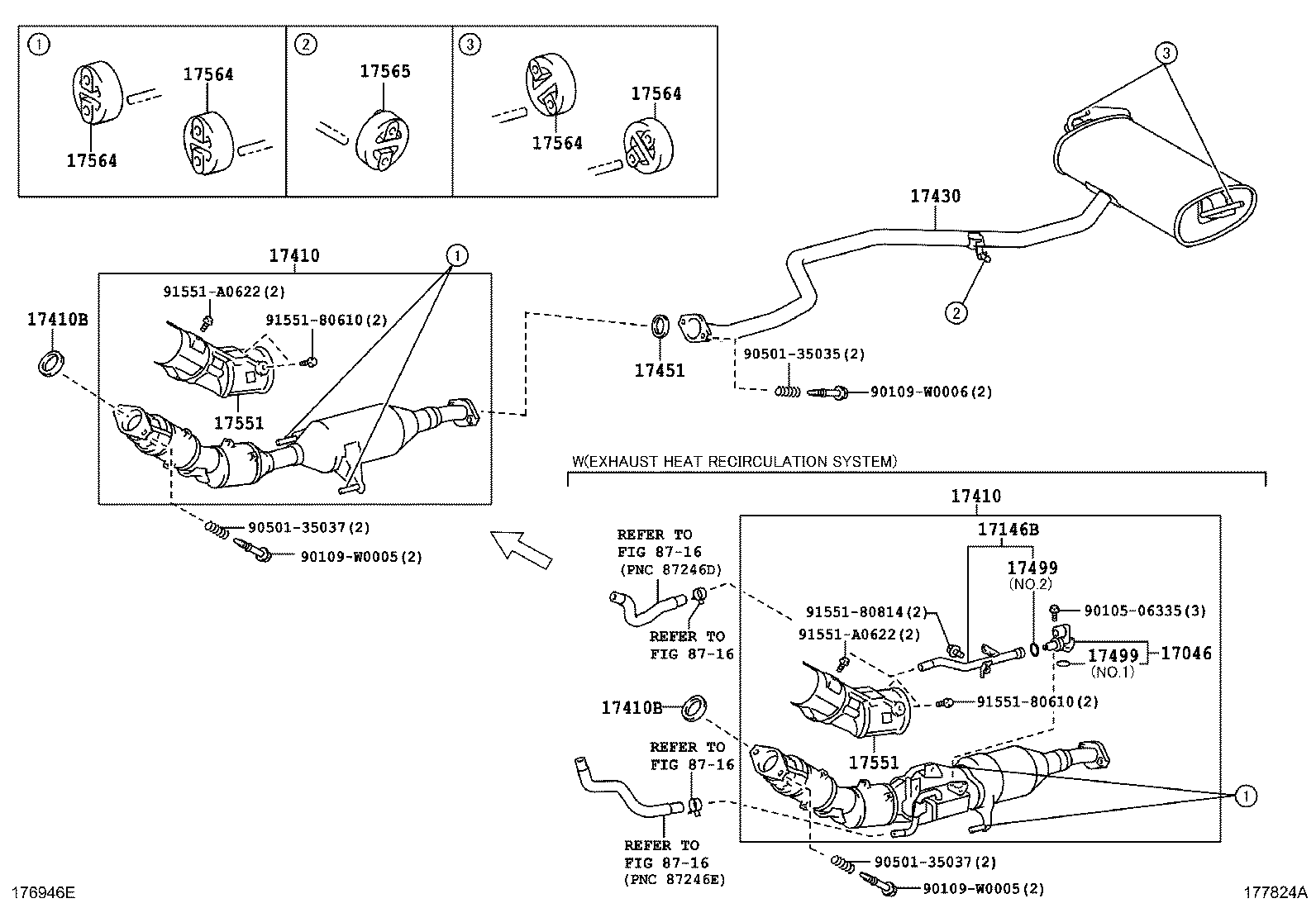

Click highlighted areas on diagram

diagram 17046 17146B 17410 17410 17410B 17410B 17430 17451 17499 17499 17551 17551 17564 17564 17564 17564 17565 8716 8716 8716 8716 9010506335 90109W0005 90109W0005 90109W0006 9050135035 9050135037 9050135037 9155180610 9155180610 9155180814 91551A0622 91551A0622
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0T510

2ZRFXE..ZWE186

*114=*327

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0T510

2ZRFXE..ZWE186

*114=*327

 1
17410B - GASKET, EXHAUST PIPE
17451-0R010

1ADFTV,1NDTV,1ZRFAE,2ZRFXE..ADE186,NDE180,ZRE185,ZWE186

 1
17410B - GASKET, EXHAUST PIPE
17451-0R010

1ADFTV,1NDTV,1ZRFAE,2ZRFXE..ADE186,NDE180,ZRE185,ZWE186

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T200

2ZRFXE..ZWE186..HB

 1
17451 - GASKET, EXHAUST PIPE
17451-0J022

2ZRFXE..ZWE186

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-0T100

2ZRFXE..ZWE186

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-0T100

2ZRFXE..ZWE186

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0J031

2ZRFXE..ZWE186..HB

 4
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0J031

2ZRFXE..ZWE186..HB

 4
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0J031

2ZRFXE..ZWE186..HB

 4
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0J031

2ZRFXE..ZWE186..HB

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0D100

1N#,2ZRFXE..NDE180,NRE180,ZWE186

 1
Common parts
90105-06335
90109-W0005
90109-W0006
90501-35035
90501-35037
91551-80610
91551-80814
91551-A0622
Linked diagrams
8716
