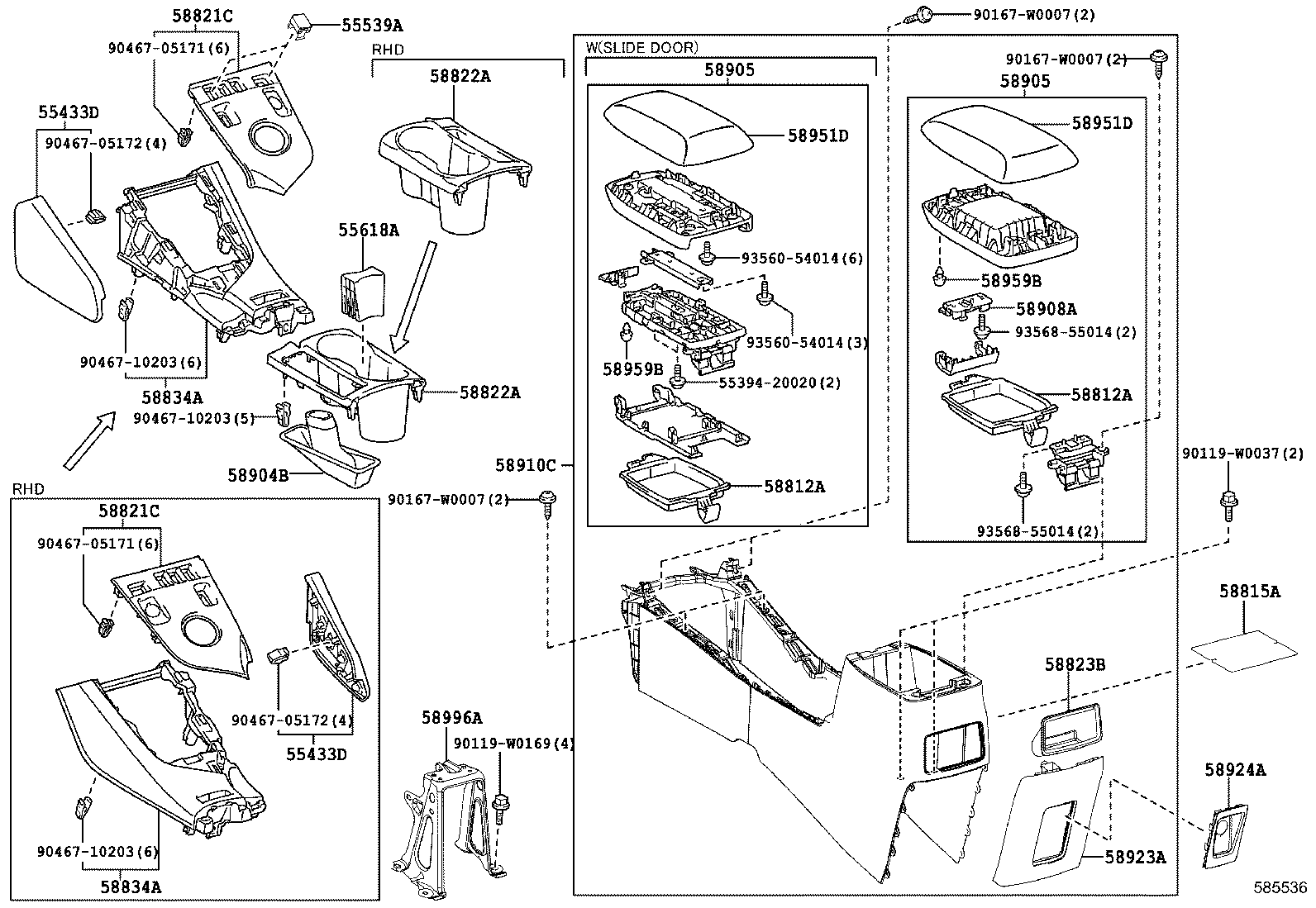

ZWE186L-DWXSBW (2015)
Toyota Auris/Hybrid (Ukp)
(1505- )ZWE186
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55433D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0247021 |
ZWE186..LHD..G BLACK/COPPER,TRIM4# |
1 | ||
| 55433-02460C1 |
ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55433-0247020 |
ZWE186..LHD..G BLACK/GRAY NO.205,TRIM2# |
1 | ||
| 55433D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0247021 |
ZWE186..LHD..G BLACK/COPPER,TRIM4# |
1 | ||
| 55433-02460C1 |
ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55433-0247020 |
ZWE186..LHD..G BLACK/GRAY NO.205,TRIM2# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ZWE186..G SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 55539-02100C1 |
ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 55539-02100C1 |
ZWE186..N,S;ZWE186..LHD..D SEAT HEATER-WITH,EU BLACK,TRIM2# |
1 | ||
| 55539-02100C1 |
ZWE186..G AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2#,4# |
1 | ||
| 55539-05100 |
ZWE186..G AUDIO-RADIO LESS & WITHOUT(SPEAKER) |
1 | ||
| 55539-02100C1 |
ZWE186..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),EU BLACK,TRIM2# |
1 | ||
| 55539-02100C1 |
ZWE186..LHD..D AUDIO-*DA & DAB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 55539-05100 |
ZWE186..D,N,S |
1 | ||
| 55539-05100 |
ZWE186..N,S;ZWE186..LHD..D SEAT HEATER-WITH |
1 | ||
| 55539-05100 |
ZWE186..LHD..D AUDIO-*DA & DAB & 6SPEAKER |
1 | ||
| 55539-05100 |
ZWE186..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE) |
1 | ||
| 55539-02100C1 |
ZWE186..G AUDIO-RADIO LESS & WITHOUT(SPEAKER),EU BLACK,TRIM2#,4# |
1 | ||
| 55539-05100 |
ZWE186..G AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-02210C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 55618-02190C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55618-02190C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 55618-02210C1 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK,TRIM2#,4# |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-02130C3 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58812-02130C3 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 58812-02130C4 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK,TRIM2#,4# |
1 | ||
| 58812-02130C4 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-02130C3 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58812-02130C3 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 58812-02130C4 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK,TRIM2#,4# |
1 | ||
| 58812-02130C4 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-02240 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58815-02240 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-02670C1 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 58821-02890C1 |
ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 58821-02890C1 |
ZWE186..LHD..G EU BLACK,TRIM2#,4# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-02670C1 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 58821-02890C1 |
ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 58821-02890C1 |
ZWE186..LHD..G EU BLACK,TRIM2#,4# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-02010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 58822-02230C1 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..G EU BLACK,TRIM2#,4# |
1 | ||
| 58822-02230C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 58822-02010C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-02010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 58822-02230C1 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..G EU BLACK,TRIM2#,4# |
1 | ||
| 58822-02230C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 58822-02010C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 58823B - BOX, CONSOLE COMPARTMENT | ||||
| 58823-02010C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 58823-02010C1 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK,TRIM2#,4# |
1 | ||
| 58823-02010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 58823-02010C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-02050C1 |
ZWE186..LHD..G EU BLACK,TRIM2#,4# |
1 | ||
| 58834-02010C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 58834-02050C1 |
ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-02050C1 |
ZWE186..LHD..G EU BLACK,TRIM2#,4# |
1 | ||
| 58834-02010C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 58834-02050C1 |
ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 58904B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58904-02190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58904-02200C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK,TRIM2# |
1 | ||
| 58904-02200C0 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G BLACK,TRIM2#,4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02860C2 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S EU BLACK/TOYOBO ESTHER,TRIM2# |
1 | ||
| 58905-02A30C1 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58905-02860C3 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S EU BLACK,TRIM2# |
1 | ||
| 58905-02660C4 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK/GRAY NO.205,TRIM2# |
1 | ||
| 58905-02880C2 |
NDE180,NRE180,ZRE185,ZWE186..D EU BLACK/BLACK,TRIM2# |
1 | ||
| 58905-02660C5 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK/COPPER,TRIM4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02860C2 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S EU BLACK/TOYOBO ESTHER,TRIM2# |
1 | ||
| 58905-02A30C1 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58905-02860C3 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S EU BLACK,TRIM2# |
1 | ||
| 58905-02660C4 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK/GRAY NO.205,TRIM2# |
1 | ||
| 58905-02880C2 |
NDE180,NRE180,ZRE185,ZWE186..D EU BLACK/BLACK,TRIM2# |
1 | ||
| 58905-02660C5 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK/COPPER,TRIM4# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-02030 |
NDE180,NRE180,ZRE185,ZWE186..D |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-02400C4 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK/GRAY NO.205,TRIM2# |
1 | ||
| 58910-02460C1 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58910-02410C2 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S EU BLACK/TOYOBO ESTHER,TRIM2# |
1 | ||
| 58910-02430C2 |
NDE180,NRE180,ZRE185,ZWE186..D EU BLACK/BLACK,TRIM2# |
1 | ||
| 58910-02410C3 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S EU BLACK,TRIM2# |
1 | ||
| 58910-02400C5 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK/COPPER,TRIM4# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-02160C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 58923-02160C1 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK,TRIM2#,4# |
1 | ||
| 58923-02160C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58923-02160C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 58924A - PANEL, CONSOLE REAR END, NO.2 | ||||
| 58924-02010C1 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G EU BLACK,TRIM2#,4# |
1 | ||
| 58924-02010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 58924-02010C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 58924-02010C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-02630C4 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G BLACK/GRAY NO.205,TRIM2# |
1 | ||
| 58951-02630C5 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G BLACK/COPPER,TRIM4# |
1 | ||
| 58951-02750C2 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S BLACK,TRIM2# |
1 | ||
| 58951-02750C1 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S BLACK/TOYOBO ESTHER,TRIM2# |
1 | ||
| 58951-02B90C1 |
NDE180,NRE180,ZRE185,ZWE186..D BLACK,TRIM2# |
1 | ||
| 58951-02810C1 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-02630C4 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G BLACK/GRAY NO.205,TRIM2# |
1 | ||
| 58951-02630C5 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..G BLACK/COPPER,TRIM4# |
1 | ||
| 58951-02750C2 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S BLACK,TRIM2# |
1 | ||
| 58951-02750C1 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S BLACK/TOYOBO ESTHER,TRIM2# |
1 | ||
| 58951-02B90C1 |
NDE180,NRE180,ZRE185,ZWE186..D BLACK,TRIM2# |
1 | ||
| 58951-02810C1 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
3 | ||
| 90541-03078 |
NDE180,NRE18#,ZRE185,ZWE186 |
3 | ||
| 58959-60060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
3 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
3 | ||
| 90541-03078 |
NDE180,NRE18#,ZRE185,ZWE186 |
3 | ||
| 58959-60060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
3 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-02100 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 58996-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 55394-20020 | ||||
| 90119-W0037 | ||||
| 90119-W0169 | ||||
| 90167-W0007 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 93560-54014 | ||||
| 93568-55014 | ||||
