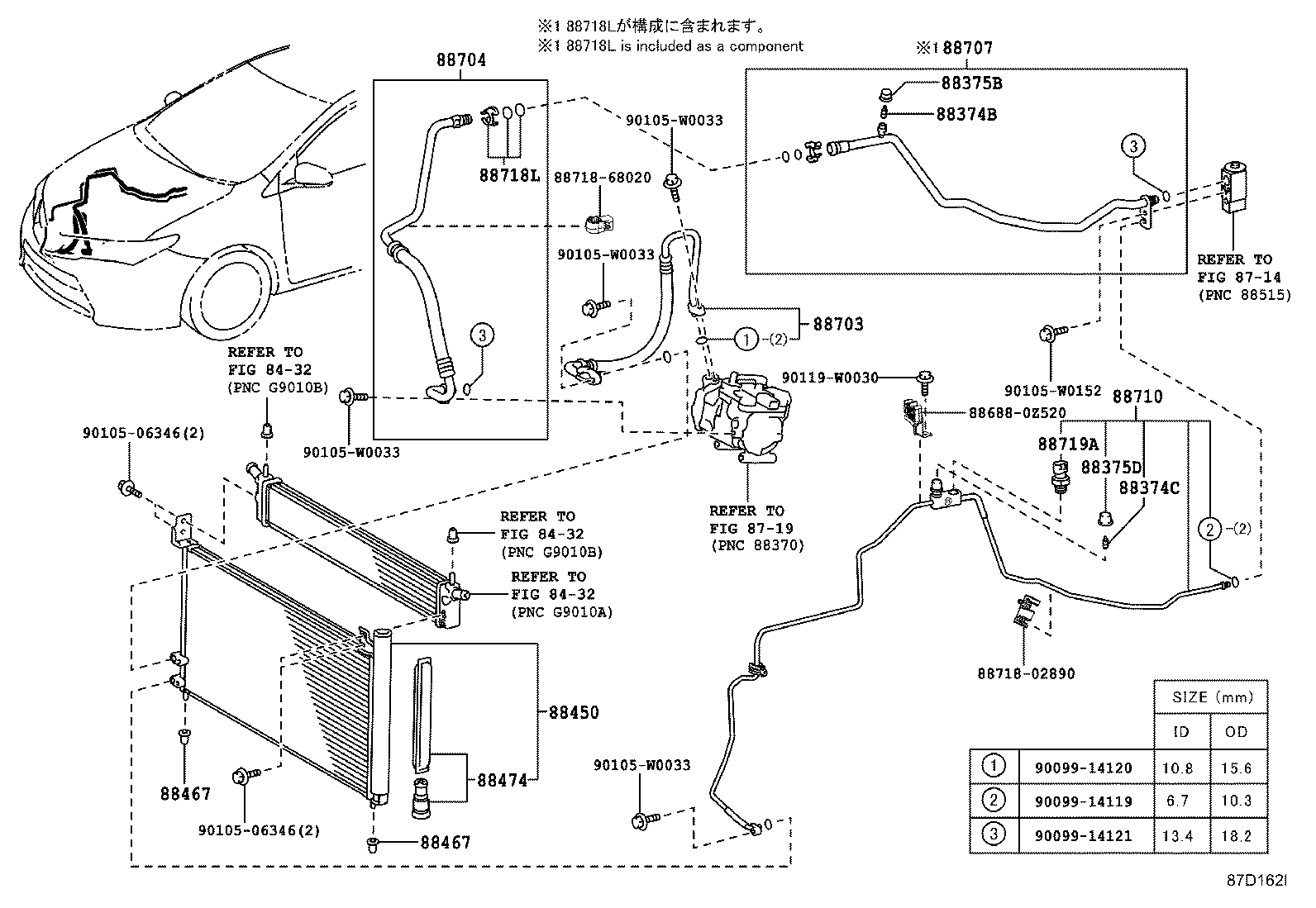

Toyota Auris/hybrid (ukp) ZWE186 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ZRE185;ADE186,NDE180,NRE180,ZWE186..G,N	10/2012 - 05/2015	1
88374C - VALVE, SERVICE, NO.2
88374-30010	ZRE185;ADE186,NDE180,NRE180,ZWE186..G,N	10/2012 - 05/2015	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	ZRE185;NRE180..RHD..N;NRE180..LHD..HB..N;ADE186,NDE180,ZWE186..G,N	10/2012 - 05/2015	1
88375-30290	ZRE185..LHD..WG;ADE186,NDE180,NRE180,ZWE186..LHD..WG..(G,N) REFRIGERANT GAS TYPE=R-134A	06/2013 - 05/2015	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	ZRE185;NRE180..RHD..N;NRE180..LHD..HB..N;ADE186,NDE180,ZWE186..G,N	10/2012 - 05/2015	1
88375-30280	ZRE185..LHD..WG;ADE186,NDE180,NRE180,ZWE186..LHD..WG..(G,N) REFRIGERANT GAS TYPE=R-134A	06/2013 - 05/2015	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02430	ZWE186	10/2012 - 05/2015	1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ZWE186	10/2012 - 05/2015	2
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ZWE186	10/2012 - 05/2015	2
88474 - DRYER, COOLER
88474-47020	ZWE186	10/2012 - 05/2015	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02850	ZWE186	10/2012 - 05/2015	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0Z170	ZWE186	10/2012 - 05/2015	1
88707 - PIPE SUB-ASSY, SUCTION
88707-02200	ZRE185;NRE180..HB..N;ADE186,NDE180,ZWE186..G,N	10/2012 - 05/2015	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0Z380	ZWE186	10/2012 - 05/2015	1
88718L - CLAMP, PIPING
88718-52280	ADE186,NDE180,NRE180,ZWE186..G,N	10/2012 - 05/2015	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	ZRE185;ADE186,NDE180,NRE180,ZWE186..G,N	10/2012 - 05/2015	1
Common parts
88688-0Z520
88718-02890
88718-68020
90099-14119
90099-14120
90099-14121
90105-06346
90105-W0033
90105-W0152
90119-W0030
Linked diagrams
8432
8714
8719

ZWE186L-DWXNBW (2013)

(1210-1505)ZWE186
