ZWE186L-DWXNBW (2013)

Toyota Auris/Hybrid (Ukp)

Production Jun 2013 - May 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

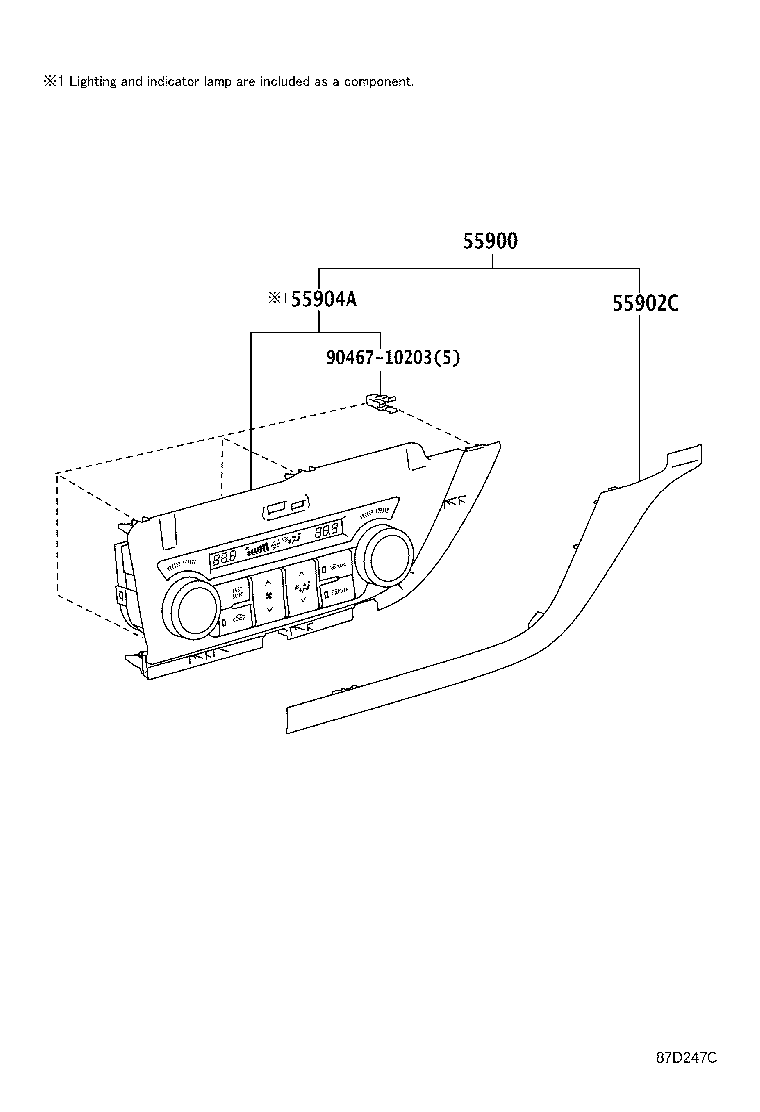

ILLUST NO. 1 OF 3(1210-1505)LHD

Click highlighted areas on diagram

HEATER CONTROL PANEL

diagram 55900 55902C 55904A 9046710203
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02370C0

ZWE186..LHD..N

LIGHT GRADE,BLACK,TRIM2#

 1
55900-02370C0

ZWE186..LHD..G

LIGHT GRADE&INSTRUMENT FINISH PANEL-BASE(BLACK HAIRLINE),BLACK,TRIM2#

 1
55900-02360C2

ZWE186..LHD..G

BLACK,TRIM1#,2#

 1
55900-02460B0

ZWE186..LHD..N

ICE GRAY,TRIM2#

 1
55900-02790C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N

MODELYEAR 14,BLACK,TRIM2#

 1
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-02220C0

ZWE186..LHD..G

BLACK,TRIM1#,2#

 1
55902-12280B0

ZWE186..LHD..N

ICE GRAY,TRIM2#

 1
55902-12260C0

ZWE186..LHD..N

LIGHT GRADE,BLACK,TRIM2#

 1
55902-12260C0

ZWE186..LHD..G

LIGHT GRADE&INSTRUMENT FINISH PANEL-BASE(BLACK HAIRLINE),BLACK,TRIM2#

 1
55902-02220C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N

MODELYEAR 14,BLACK,TRIM2#

 1
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-02060

NDE180,NRE180..LHD..N;ADE186,ZRE185,ZWE186..LHD..(D,N)

 1
55904-02060

ZWE186..LHD..G

LIGHT GRADE&INSTRUMENT FINISH PANEL-BASE(BLACK HAIRLINE)

 1
55904-02050

ZWE186..LHD..G

 1
Common parts
90467-10203
