ZWE186L-DWXNBW (2013)
Toyota Auris/Hybrid (Ukp)
(1210-1505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0F010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 87810-0W810 |
ZWE186..G |
1 | ||
| 87810-0W810 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W820 |
ZRE185,ZWE186..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0F010 |
ZWE186..G LIGHT GRADE&LIGHT CONTROL SYSTEM-WITHOUT(AUTO) |
1 | ||
| 87810-0W820 |
ZWE186..LHD..G HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0F010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 87810-0W810 |
ZWE186..G |
1 | ||
| 87810-0W810 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W820 |
ZRE185,ZWE186..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0F010 |
ZWE186..G LIGHT GRADE&LIGHT CONTROL SYSTEM-WITHOUT(AUTO) |
1 | ||
| 87810-0W820 |
ZWE186..LHD..G HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0F010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 87810-0W810 |
ZWE186..G |
1 | ||
| 87810-0W810 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W820 |
ZRE185,ZWE186..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0F010 |
ZWE186..G LIGHT GRADE&LIGHT CONTROL SYSTEM-WITHOUT(AUTO) |
1 | ||
| 87810-0W820 |
ZWE186..LHD..G HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-0W070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87818-0W070 |
ZWE186..G |
1 | ||
| 87818-0W070 |
NRE180..LHD..N;ADE186,NDE180,ZRE185,ZWE186..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-0W070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87818-0W070 |
ZWE186..G |
1 | ||
| 87818-0W070 |
NRE180..LHD..N;ADE186,NDE180,ZRE185,ZWE186..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-02F10 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER) |
1 | ||
| 87910-02640 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) NO PAINT REQ. |
1 | ||
| 87910-02F10 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 87910-02F10 |
ZWE186..LHD..G NO PAINT REQ. |
1 | ||
| 87910-02640 |
ZWE186..LHD..G NO PAINT REQ.,LIGHT GRADE |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-02925 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PAINT REQ. |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-02F10 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-02E50 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER) |
1 | ||
| 87940-02E50 |
ZWE186..LHD..G NO PAINT REQ. |
1 | ||
| 87940-02620 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) NO PAINT REQ. |
1 | ||
| 87940-02E50 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 87940-02620 |
ZWE186..LHD..G NO PAINT REQ.,LIGHT GRADE |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-02925 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PAINT REQ. |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-02E50 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||

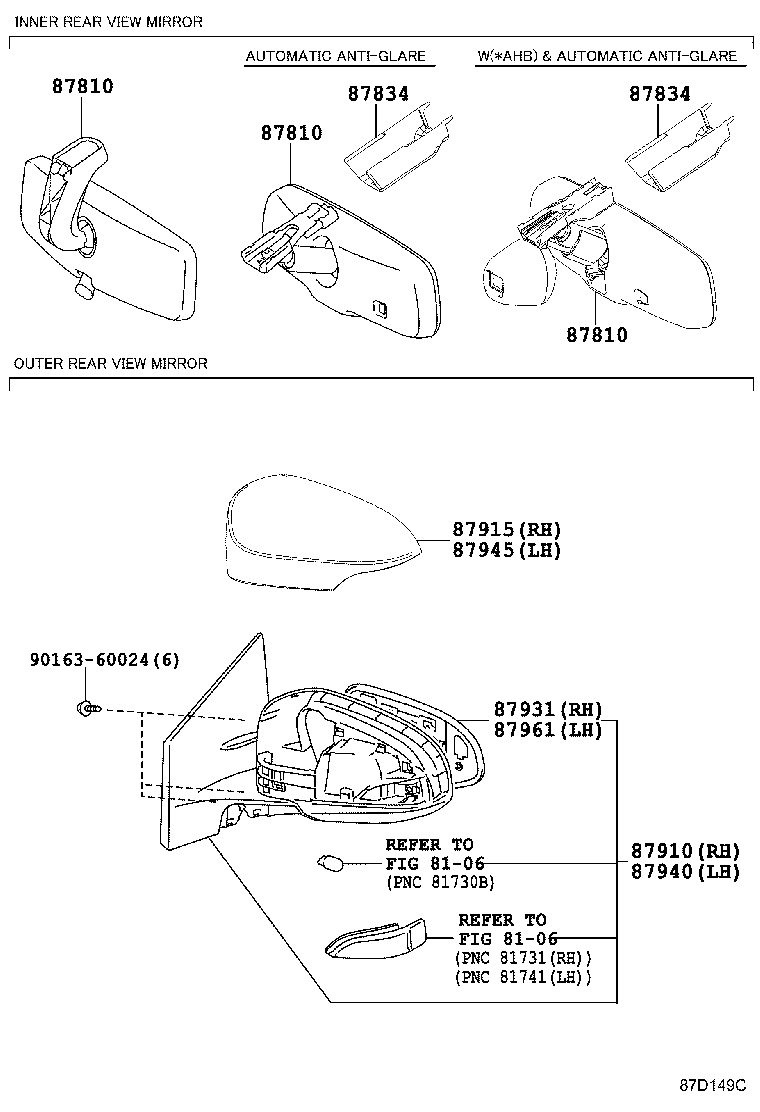

| Linked diagrams | ||||
| 8106 | ||||
