ZWE186L-DWXNBW (2013)
Toyota Auris/Hybrid (Ukp)

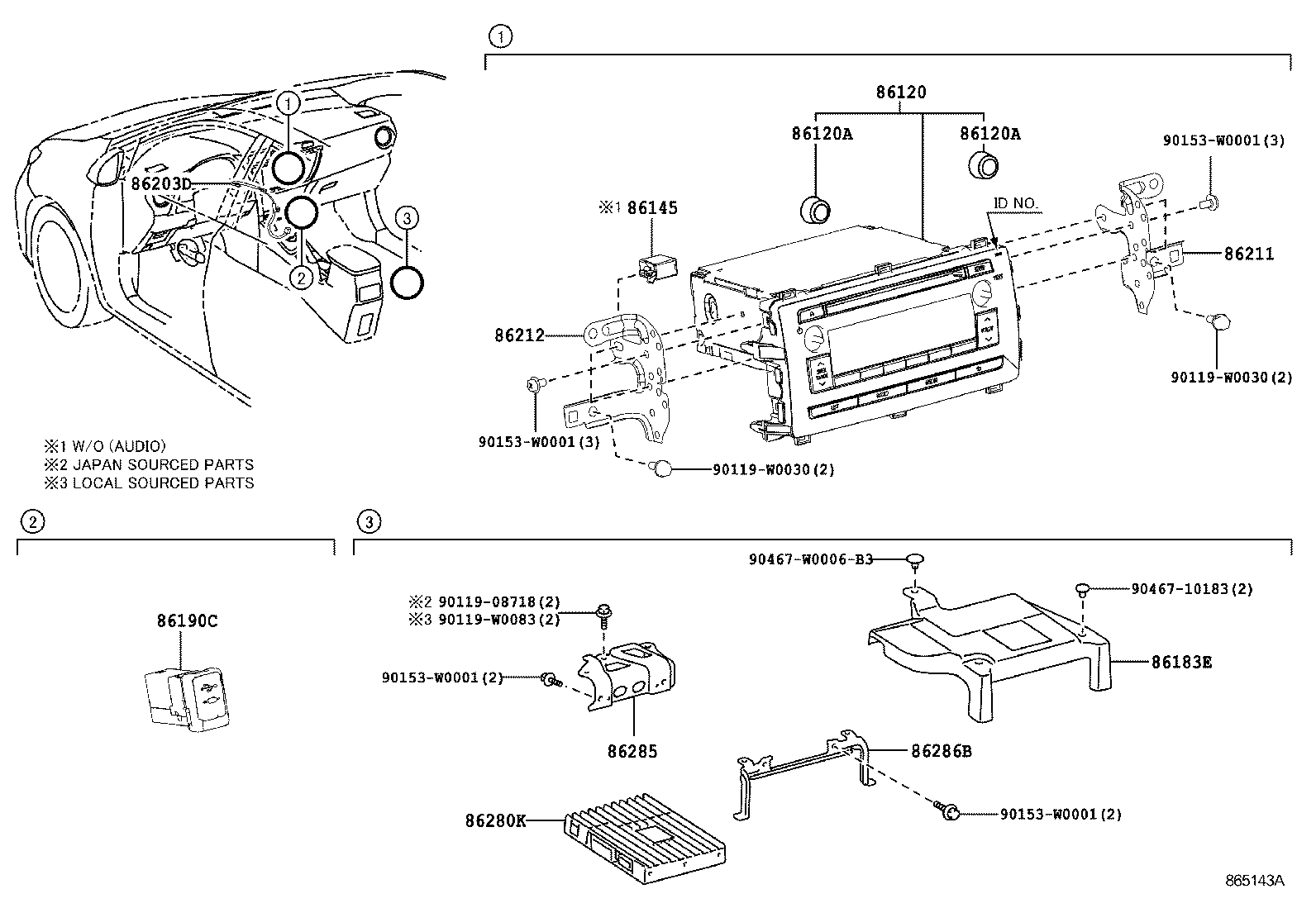

ILLUST NO. 1 OF 2(1210-1505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86183E - COVER, AUDIO AMPLIFIER | ||||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-12450 |
ZWE186 |
1 | ||
| 86203-12450 |
ZWE186 AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 86203-02210 |
ZWE186 |
1 | ||
| 86203-02210 |
ZWE186 AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-02240 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-02200 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-02060 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 86280-02060 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86280-02060 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86280-02060 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86280-02060 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 86280-02060 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86280-02080 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 86280-02080 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86280-02080 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86280-02080 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86280-02080 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 86280-02080 |
ZRE185..WG..N;ZWE186..WG..G;NDE180,NRE180..LHD..WG..N AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86286B - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| Common parts | ||||
| 90119-08718 | ||||
| 90119-W0030 | ||||
| 90119-W0083 | ||||
| 90153-W0001 | ||||
| 90467-10183 | ||||
| 90467-W0006B3 | ||||
