ZWE186L-DWXNBW (2013)

Toyota Auris/Hybrid (Ukp)

Production Jun 2013 - May 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1210-1505)

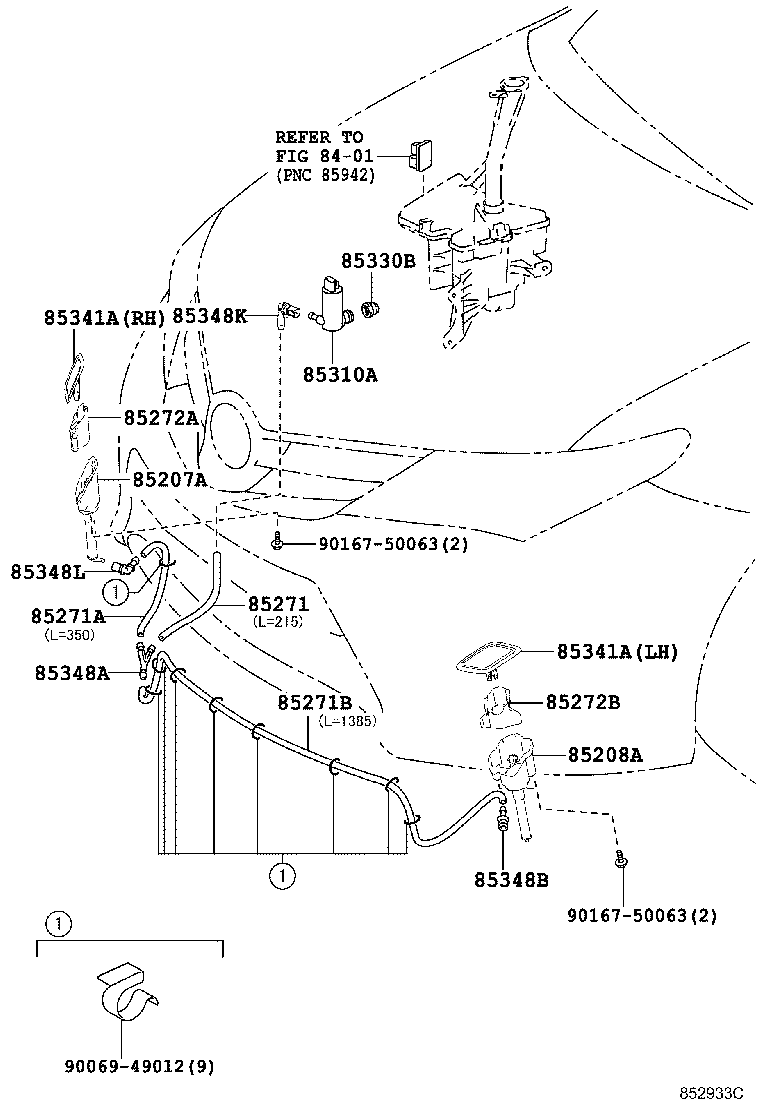

Click highlighted areas on diagram

diagram 8401 85207A 85208A 85271 85271A 85271B 85272A 85272B 85310A 85330B 85341A 85341A 85348A 85348B 85348K 85348L 9006949012 9016750063 9016750063
Part # Description Qty Price
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-02130

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-02130

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85271-0W050

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH,*318:REFER ILLUST.

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85271-0W050

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH,*318:REFER ILLUST.

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85271-0W060

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH,*318:REFER ILLUST.

 1
85272A - CLAMP, HEADLAMP CLEANER, NO.1
85272-02070

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH

 1
85272B - CLAMP, HEADLAMP CLEANER, NO.2
85273-02070

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85280-05050

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90069-20005

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85384-02080

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH,RH

 1
85394-02080

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH,LH

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85384-02080

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH,RH

 1
85394-02080

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH,LH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85287-05110

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85279-05110

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85278-05110

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85278-05110

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

HEADLAMP CLEANER-WITH

 1
Common parts
90069-49012
90167-50063
Linked diagrams
8401
