ZWE186L-DWXNBW (2013)
Toyota Auris/Hybrid (Ukp)

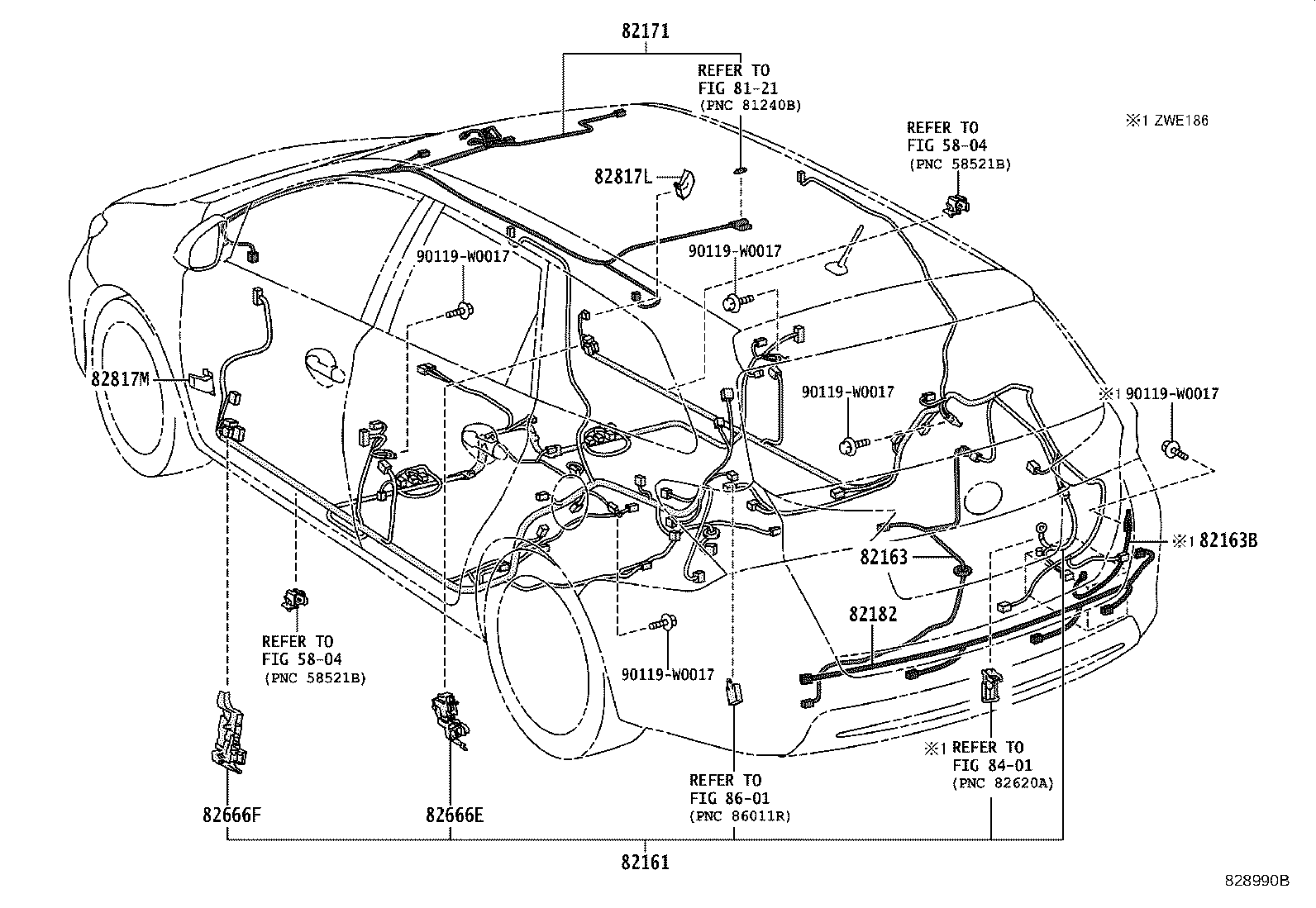

ILLUST NO. 5 OF13(1306- )WG
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0ZF30 |
ZWE186..LHD..WG..N |
1 | ||
| 82161-0ZF40 |
ZWE186..LHD..WG..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82161-0ZF40 |
ZWE186..LHD..WG..G |
1 | ||
| 82161-0ZF41 |
ZWE186..LHD..WG..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82161-0ZF41 |
ZWE186..LHD..WG..G |
1 | ||
| 82161-0ZF41 |
ZWE186..LHD..WG..G REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 82161-0ZF41 |
ZWE186..LHD..WG..N REFRIGERANT GAS TYPE=R-134A&COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82161-0ZF31 |
ZWE186..LHD..WG..N REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 82199-02880 |
ZWE186..LHD..WG..G |
1 | ||
| 82199-02880 |
ZWE186..LHD..WG..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82199-02870 |
ZWE186..LHD..WG..N |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-02190 |
NDE180..6F..N;ADE186,ZRE185..N;NDE180..LHD..6FS;NRE180,ZWE186..LHD..N COMFORT PACKAGE |
1 | ||
| 82163-02190 |
ZWE186..RHD;ZWE186..LHD..G |
1 | ||
| 82163-02180 |
ZWE186..LHD..WG..G HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM |
1 | ||
| 82163-02180 |
ADE186,ZRE185,ZWE186..LHD..WG..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM |
1 | ||
| 82163-02180 |
ADE186,ZRE185,ZWE186..LHD..WG..N HEADLAMP-DISCHARGE & AFS |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-02090 |
ZWE186..WG |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02W30 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG..N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 82171-02V80 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG..N |
1 | ||
| 82171-02W20 |
ZWE186..LHD..WG..G |
1 | ||
| 82171-02W20 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82171-02Y40 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG..N COMFORT PACKAGE&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82171-02Y40 |
ZWE186..LHD..WG..G ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-02020 |
ZWE186..WG..G |
1 | ||
| 82182-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02460 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-02470 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-02C00 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-02C10 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| Linked diagrams | ||||
| 5804 | ||||
| 8121 | ||||
| 8401 | ||||
| 8601 | ||||
