ZWE186L-DWXNBW (2013)

Toyota Auris/Hybrid (Ukp)

Production Jun 2013 - May 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

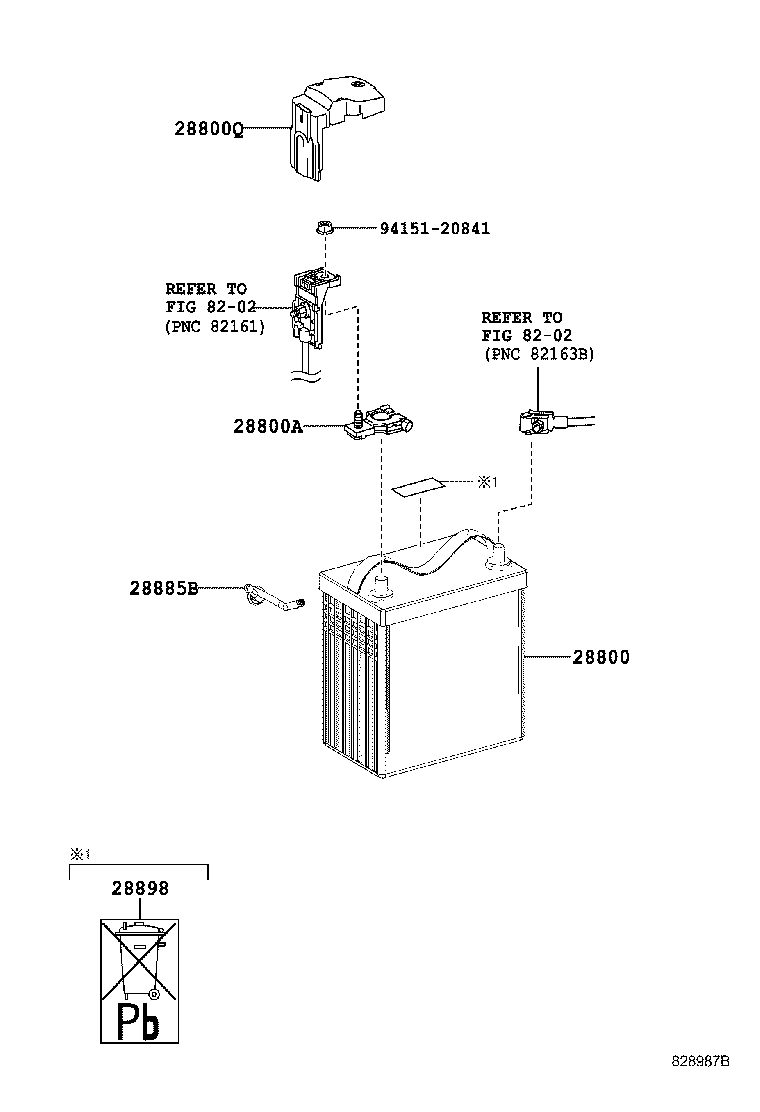

ILLUST NO. 1 OF 4(1306- )ZWE186..WG

Click highlighted areas on diagram

12V BATTERY

diagram 28800 28800A 28800Q 28885B 28898 8202 8202 9415120841
Part # Description Qty Price
28800 - BATTERY
28800-21181

2ZRFXE..ZWE186..WG

S34B20R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05063

2ZRFXE..ZWE186

 1
28800Q - COVER, CONNECTOR(FOR BATTERY)
82821-47110

2ZRFXE..ZWE186

 1
28885B - HOSE, BATTERY
28885-37050

2ZRFXE..ZWE186..WG

 1
28898 - PLATE, BATTERY
28898-16020

2ZRFXE..ZWE186

 1
Common parts
94151-20841
Linked diagrams
8202
