ZWE186L-DWXNBW (2013)

Toyota Auris/Hybrid (Ukp)

Production Jun 2013 - May 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306-1505)ZWE186..WG

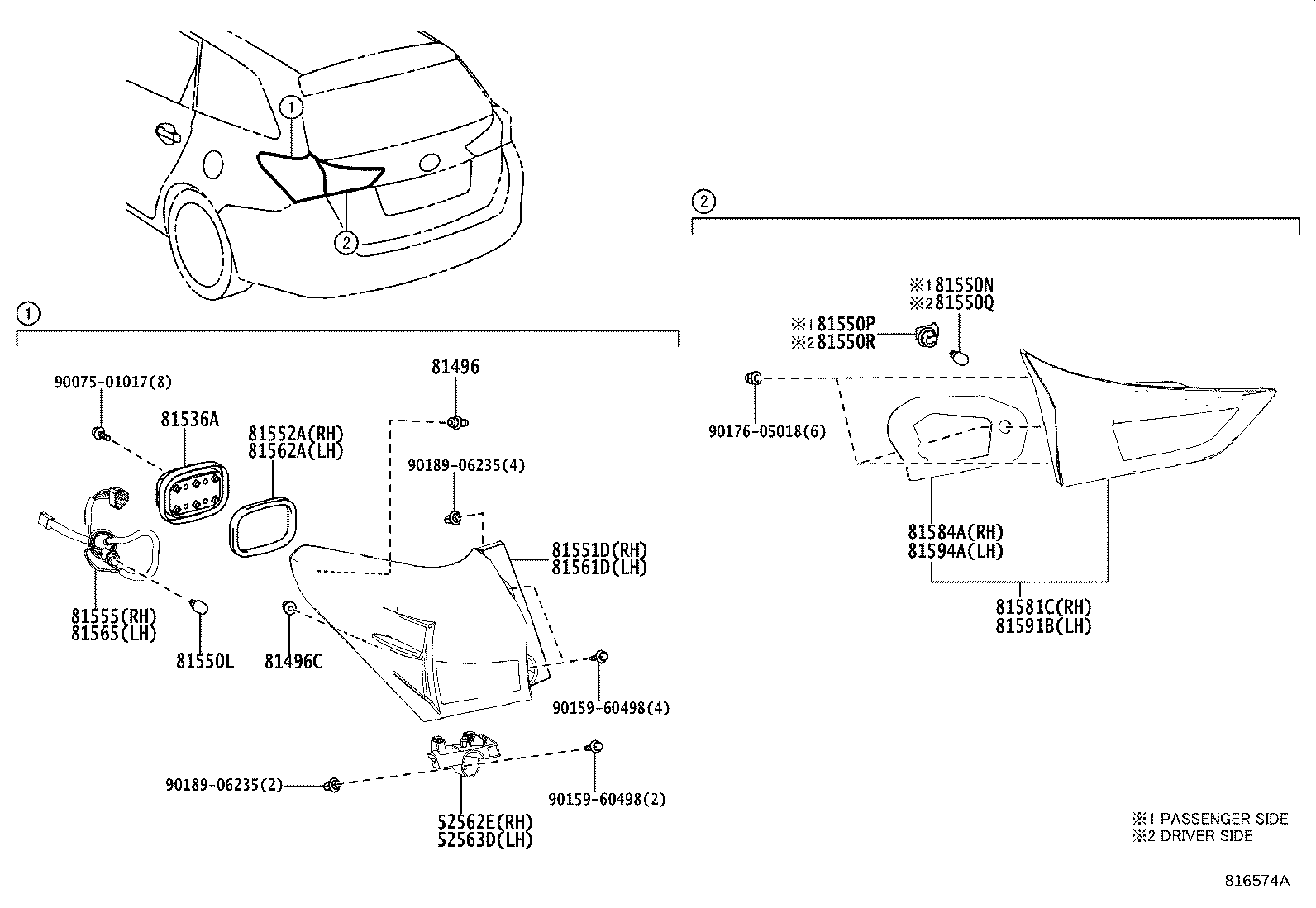

Click highlighted areas on diagram

diagram 52562E 52563D 81496 81496C 81536A 81550L 81550N 81550P 81550Q 81550R 81551D 81552A 81555 81561D 81562A 81565 81581C 81584A 81591B 81594A 9007501017 9015960498 9015960498 9017605018 9018906235 9018906235
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-02240

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-02240

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-52020

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
81536A - LED, REAR COMBINATION LAMP
81536-02710

ZWE186

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-WB007

ADE186,NDE180,NRE180,ZRE185,ZWE186

12V 16W

 2
81550N - BULB, BACK UP LAMP
90981-WB007

ADE186,NDE180,NRE180,ZRE185,ZWE186

12V 16W

 1
81550P - SOCKET, BACK UP LAMP
90075-60065

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
81550Q - BULB, REAR FOG LAMP, NO.1
90981-13043

ADE186,NDE180,NRE180,ZRE185,ZWE186

12V 21W

 1
81550R - SOCKET, REAR FOG LAMP
90075-60042

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02710

ZWE186..WG

 1
81552A - GASKET, REAR COMBINATION LAMP, RH
81552-02710

ZWE186

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02710

ZWE186..WG

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02710

ZWE186..WG

 1
81562A - GASKET, REAR COMBINATION LAMP, LH
81552-02710

ZWE186

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-02710

ZWE186..WG

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-02500

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG

 1
81584A - GASKET, REAR LAMP RH
81584-02500

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-02490

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG

 1
81594A - GASKET, REAR LAMP LH
81594-02500

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 1
Common parts
90075-01017
90159-60498
90176-05018
90189-06235
