ZWE186L-DWXNBW (2013)

Toyota Auris/Hybrid (Ukp)

Production Jun 2013 - May 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1306- )WG

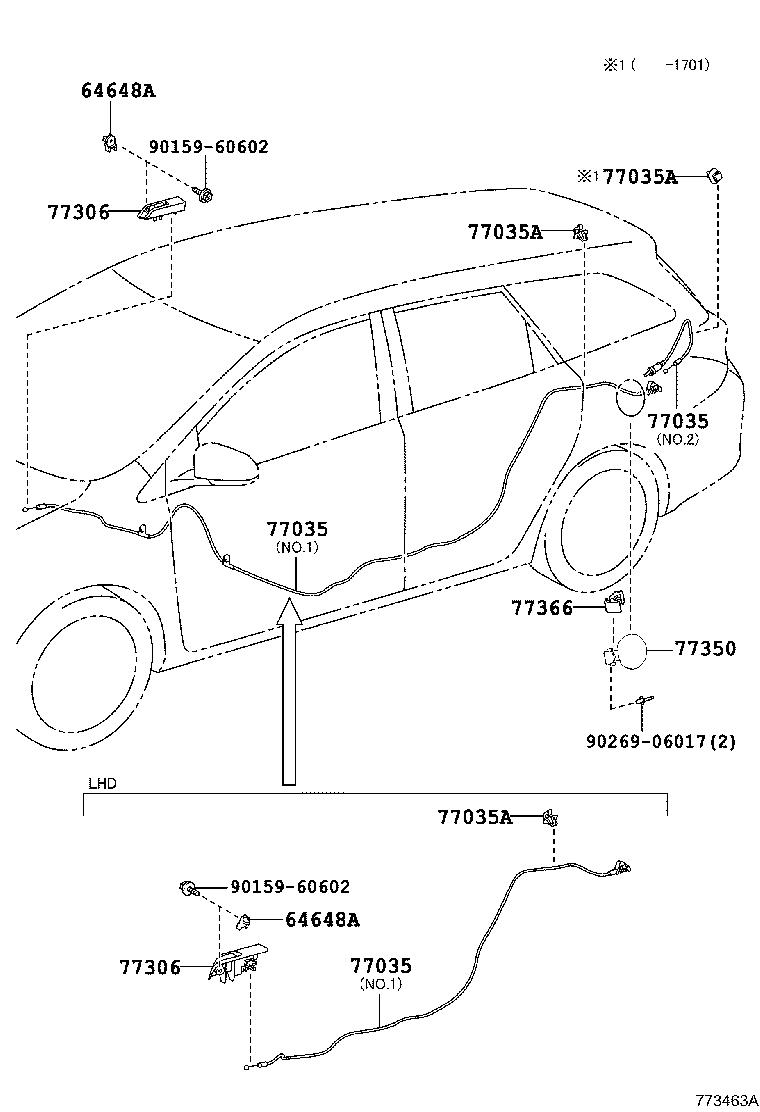

Click highlighted areas on diagram

FUEL LID OPENER

diagram 64648A 64648A 77035 77035 77035 77035A 77035A 77035A 77306 77306 77350 77366 9015960602 9015960602 9026906017
Part # Description Qty Price
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-12020

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-12020

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-02360

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG

NO.1:REFER ILLUST.

 1
77035-02370

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

NO.2:REFER ILLUST.

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-02360

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG

NO.1:REFER ILLUST.

 1
77035-02370

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

NO.2:REFER ILLUST.

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-02360

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG

NO.1:REFER ILLUST.

 1
77035-02370

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

NO.2:REFER ILLUST.

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 2
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 2
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 2
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0D120

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

 1
77306-52060

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0D120

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

 1
77306-52060

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-12550

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-52010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
Common parts
90159-60602
90269-06017
