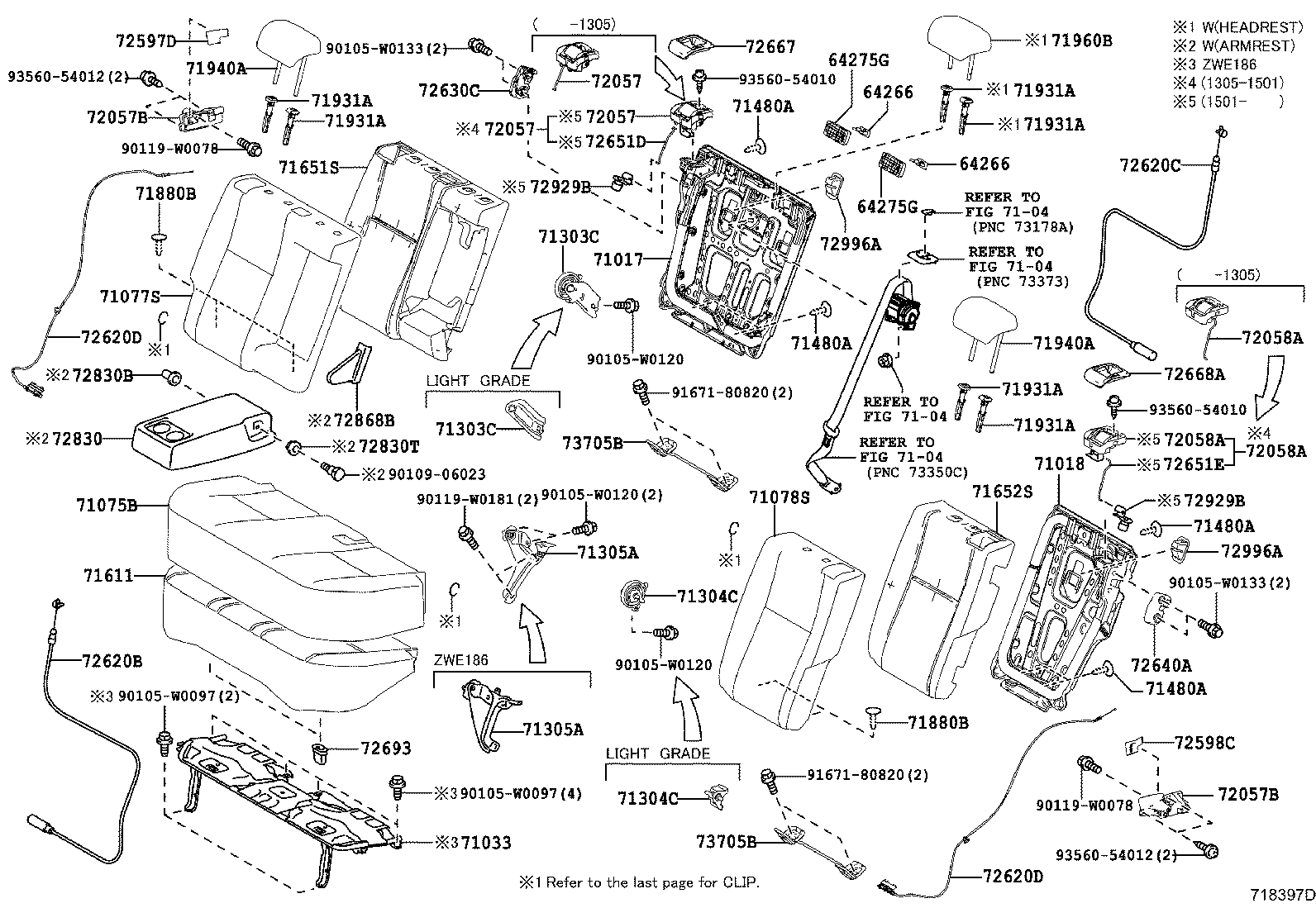

ZWE186L-DWXNBW (2013)
Toyota Auris/Hybrid (Ukp)
(1306- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64266 - ANCHOR, ROOM PARTITION NET | ||||
| 64266-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 64266-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG LIGHT GRADE |
2 | ||
| 64266-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG LIGHT GRADE&ROOM SEPARATOR-WITH(NET) |
2 | ||
| 64266 - ANCHOR, ROOM PARTITION NET | ||||
| 64266-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 64266-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG LIGHT GRADE |
2 | ||
| 64266-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG LIGHT GRADE&ROOM SEPARATOR-WITH(NET) |
2 | ||
| 64275G - COVER, ROOM PARTITION | ||||
| 64275-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 64275-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG LIGHT GRADE |
2 | ||
| 64275-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG LIGHT GRADE&ROOM SEPARATOR-WITH(NET) |
2 | ||
| 64275G - COVER, ROOM PARTITION | ||||
| 64275-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 64275-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG LIGHT GRADE |
2 | ||
| 64275-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG LIGHT GRADE&ROOM SEPARATOR-WITH(NET) |
2 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02560 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) |
1 | ||
| 71017-02550 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE) |
1 | ||
| 71017-02550 |
ZWE186..WG..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT |
1 | ||
| 71017-02551 |
ZWE186..WG..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT |
1 | ||
| 71017-02551 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE) |
1 | ||
| 71017-02561 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) |
1 | ||
| 71017-02531 |
ZWE186..WG..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT |
1 | ||
| 71017-02531 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02310 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 71018-02311 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-02010 |
ZWE186 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02R30C2 |
ZWE186..G BLACK,TRIM2# |
1 | ||
| 71075-02R10C0 |
ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71075-02R10C0 |
ZWE186..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 71075-02R50B0 |
ZWE186..G SEAT COVER MATERIAL-NATURAL LEATHER,ICE GRAY,TRIM1# |
1 | ||
| 71075-02R20C0 |
ZWE186..N BLACK,TRIM2# |
1 | ||
| 71075-02Y00C0 |
ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71075-02Y00C0 |
ZWE186..LHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14),BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02U70C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N BLACK,TRIM2# |
1 | ||
| 71077-02U80C2 |
ZWE186..WG..G BLACK,TRIM2# |
1 | ||
| 71077-02X10B1 |
ZWE186..WG..G SEAT COVER MATERIAL-NATURAL LEATHER,ICE GRAY,TRIM1# |
1 | ||
| 71077-02U71C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N BLACK,TRIM2# |
1 | ||
| 71077-02U81C2 |
ZWE186..WG..G BLACK,TRIM2# |
1 | ||
| 71077-02X11B1 |
ZWE186..WG..G SEAT COVER MATERIAL-NATURAL LEATHER,ICE GRAY,TRIM1# |
1 | ||
| 71077-02V40C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14),BLACK,TRIM2# |
1 | ||
| 71077-02V40C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71077-02U71C4 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N BLACK/MEDIUM GRAY,TRIM2# |
1 | ||
| 71077-02V40C1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71077-02V40C1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14),BLACK,TRIM2# |
1 | ||
| 71077-02U81C3 |
ZWE186..WG..G BLACK,TRIM2# |
1 | ||
| 71077-02X11B2 |
ZWE186..WG..G SEAT COVER MATERIAL-NATURAL LEATHER,ICE GRAY/BLACK,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02M30C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N BLACK,TRIM2# |
1 | ||
| 71078-02M20C1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71078-02M20C1 |
ZWE186..WG..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 71078-02M40C2 |
ZWE186..WG..G BLACK,TRIM2# |
1 | ||
| 71078-02N30B1 |
ZWE186..WG..G SEAT COVER MATERIAL-NATURAL LEATHER,ICE GRAY,TRIM1# |
1 | ||
| 71078-02U80C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71078-02U80C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14),BLACK,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-02200 |
NDE180,NRE180..WG..N;ADE186,ZRE185,ZWE186..WG;NDE180,NRE180..LHD..WG..D LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 71303-12220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-02200 |
NDE180,NRE180..WG..N;ADE186,ZRE185,ZWE186..WG;NDE180,NRE180..LHD..WG..D LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 71303-12220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-12090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 71304-02020 |
NDE180,NRE180..WG..N;ADE186,ZRE185,ZWE186..WG;NDE180,NRE180..LHD..WG..D LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-12090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 71304-02020 |
NDE180,NRE180..WG..N;ADE186,ZRE185,ZWE186..WG;NDE180,NRE180..LHD..WG..D LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02210 |
ZWE186 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02210 |
ZWE186 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-W0006C0 |
ZWE186..G BLACK,TRIM1#,2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
8 | ||
| 90467-W0006C0 |
ZWE186..G BLACK,TRIM1#,2# |
8 | ||
| 90467-W0006C0 |
ZWE186..WG..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
6 | ||
| 90467-W0006C0 |
ZWE186..G SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#,2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
6 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-W0006C0 |
ZWE186..G BLACK,TRIM1#,2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
8 | ||
| 90467-W0006C0 |
ZWE186..G BLACK,TRIM1#,2# |
8 | ||
| 90467-W0006C0 |
ZWE186..WG..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
6 | ||
| 90467-W0006C0 |
ZWE186..G SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#,2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
6 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-W0006C0 |
ZWE186..G BLACK,TRIM1#,2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
8 | ||
| 90467-W0006C0 |
ZWE186..G BLACK,TRIM1#,2# |
8 | ||
| 90467-W0006C0 |
ZWE186..WG..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
6 | ||
| 90467-W0006C0 |
ZWE186..G SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#,2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
6 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-W0006C0 |
ZWE186..G BLACK,TRIM1#,2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
8 | ||
| 90467-W0006C0 |
ZWE186..G BLACK,TRIM1#,2# |
8 | ||
| 90467-W0006C0 |
ZWE186..WG..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
6 | ||
| 90467-W0006C0 |
ZWE186..G SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#,2# |
9 | ||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
6 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02250 |
ZWE186 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02680 |
ZWE186..WG..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT |
1 | ||
| 71651-02680 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE) |
1 | ||
| 71651-02690 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02420 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
4 | ||
| 90467-W0006C0 |
ZWE186..G BLACK,TRIM1#,2# |
4 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-W0006C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
4 | ||
| 90467-W0006C0 |
ZWE186..G BLACK,TRIM1#,2# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ZWE186..G W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-0D130C0 |
ZWE186..G W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ZWE186..G W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-0D130C0 |
ZWE186..G W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ZWE186..G W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-0D130C0 |
ZWE186..G W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ZWE186..G W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-0D130C0 |
ZWE186..G W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ZWE186..G W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-0D130C0 |
ZWE186..G W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ZWE186..G W/O(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71930-0D130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-0D130C0 |
ZWE186..G W(LOCK),LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71931-0D140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02G30C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71940-02G70B0 |
ZWE186..G SEAT COVER MATERIAL-NATURAL LEATHER,ICE GRAY,TRIM1# |
2 | ||
| 71940-02G40C1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
2 | ||
| 71940-02M20C1 |
ZWE186..G BLACK,TRIM2# |
2 | ||
| 71940-02G30C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14),BLACK,TRIM2# |
2 | ||
| 71940-02G30C2 |
ZWE186..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71940-02G30C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02G30C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71940-02G70B0 |
ZWE186..G SEAT COVER MATERIAL-NATURAL LEATHER,ICE GRAY,TRIM1# |
2 | ||
| 71940-02G40C1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
2 | ||
| 71940-02M20C1 |
ZWE186..G BLACK,TRIM2# |
2 | ||
| 71940-02G30C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14),BLACK,TRIM2# |
2 | ||
| 71940-02G30C2 |
ZWE186..G LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2# |
2 | ||
| 71940-02G30C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02F00C1 |
ZWE186..G BLACK,TRIM2# |
1 | ||
| 71960-02A80C1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 71960-02B10B0 |
ZWE186..G SEAT COVER MATERIAL-NATURAL LEATHER,ICE GRAY,TRIM1# |
1 | ||
| 71960-02A70C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71960-02A70C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14),BLACK,TRIM2# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-12010C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72057-12010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72057-02040C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72057-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-12010C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72057-12010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72057-02040C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72057-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-12010C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72057-12010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72057-02040C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72057-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72057B - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL | ||||
| 72057-02050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2#,RH |
1 | ||
| 72058-02050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2#,LH |
1 | ||
| 72057-02051C0 |
ZWE186..WG..G BLACK,TRIM1#,2#,RH |
1 | ||
| 72057-02051C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2#,RH |
1 | ||
| 72057-02050C0 |
ZWE186..WG..G BLACK,TRIM1#,2#,RH |
1 | ||
| 72058-02050C0 |
ZWE186..WG..G BLACK,TRIM1#,2#,LH |
1 | ||
| 72058-02051C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2#,LH |
1 | ||
| 72058-02051C0 |
ZWE186..WG..G BLACK,TRIM1#,2#,LH |
1 | ||
| 72057B - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL | ||||
| 72057-02050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2#,RH |
1 | ||
| 72058-02050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2#,LH |
1 | ||
| 72057-02051C0 |
ZWE186..WG..G BLACK,TRIM1#,2#,RH |
1 | ||
| 72057-02051C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2#,RH |
1 | ||
| 72057-02050C0 |
ZWE186..WG..G BLACK,TRIM1#,2#,RH |
1 | ||
| 72058-02050C0 |
ZWE186..WG..G BLACK,TRIM1#,2#,LH |
1 | ||
| 72058-02051C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2#,LH |
1 | ||
| 72058-02051C0 |
ZWE186..WG..G BLACK,TRIM1#,2#,LH |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-12010C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72058-12010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72058-02040C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72058-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-12010C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72058-12010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72058-02040C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72058-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-12010C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72058-12010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72058-02040C0 |
ZWE186..G BLACK,TRIM1#,2#,REFER ILLUST. |
1 | ||
| 72058-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REFER ILLUST. |
1 | ||
| 72597D - BEZEL, RECLINING REMOTE CONTROL, RH | ||||
| 72597-02020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2# |
1 | ||
| 72597-02020C0 |
ZWE186..WG..G BLACK,TRIM1#,2# |
1 | ||
| 72598C - BEZEL, RECLINING REMOTE CONTROL, LH | ||||
| 72598-02010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2# |
1 | ||
| 72598-02010C0 |
ZWE186..WG..G BLACK,TRIM1#,2# |
1 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 72620D - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 72620-02031 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 72620D - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 72620-02031 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72652-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-12010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 72667-12010C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 72668A - BEZEL, REAR SEAT BACK LOCK, LOWER | ||||
| 72668-12010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 72668-12010C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-02A60C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 72830-02B40C0 |
ZWE186..G SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/ICE GRAY,TRIM1# |
1 | ||
| 72830-02A80C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 72830-02A70C0 |
ZWE186..G BLACK,TRIM2# |
1 | ||
| 72830-02A80C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14),BLACK,TRIM2# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 72622-47010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-02050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N BLACK,TRIM2# |
1 | ||
| 72929B - HOLDER, REAR SEAT CUSHION BAND | ||||
| 72929-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 72929B - HOLDER, REAR SEAT CUSHION BAND | ||||
| 72929-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-02110C0 |
ZWE186..G BLACK,TRIM1#,2# |
2 | ||
| 72996-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-02110C0 |
ZWE186..G BLACK,TRIM1#,2# |
2 | ||
| 72996-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| Common parts | ||||
| 90105-W0097 | ||||
| 90105-W0120 | ||||
| 90105-W0133 | ||||
| 90109-06023 | ||||
| 90119-W0078 | ||||
| 90119-W0181 | ||||
| 91671-80820 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
