ZWE186L-DWXNBW (2013)

Toyota Auris/Hybrid (Ukp)

Production Jun 2013 - May 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

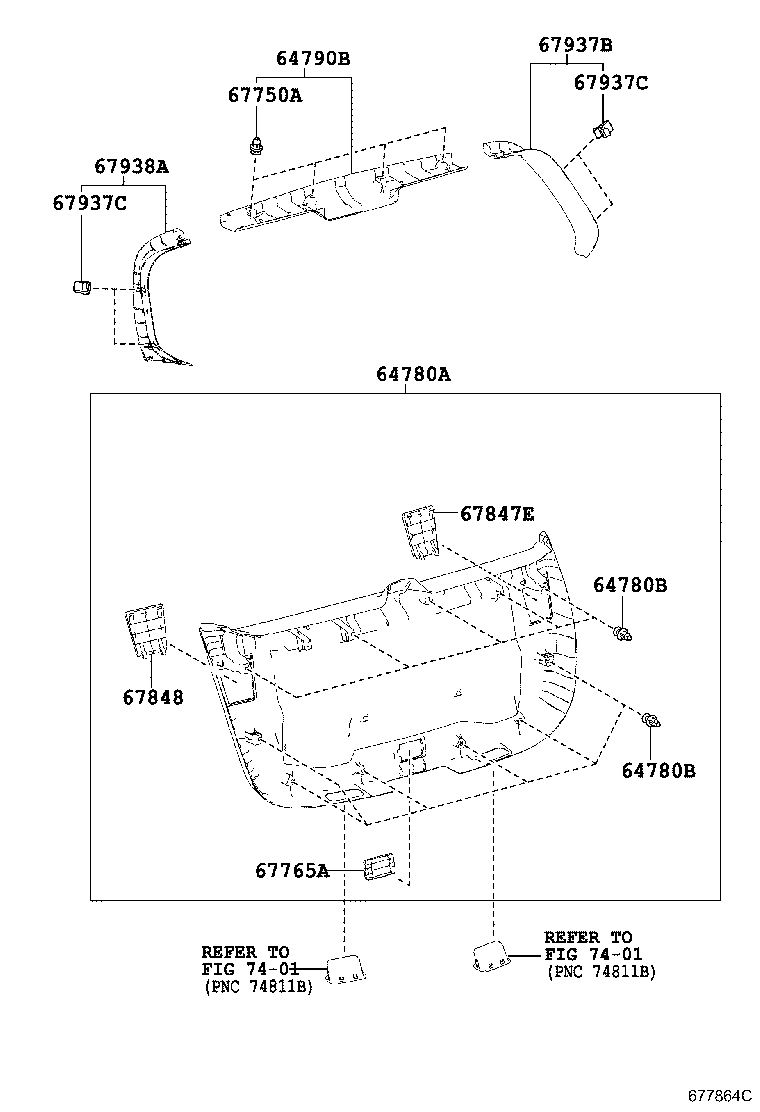

ILLUST NO. 2 OF 2(1306- )WG

Click highlighted areas on diagram

DOOR TRIM

diagram 64780A 64780B 64780B 64790B 67750A 67765A 67847E 67848 67937B 67937C 67937C 67938A 7401 7401
Part # Description Qty Price
64780A - PANEL ASSY, BACK DOOR TRIM
64780-02021C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N)

BLACK,TRIM2#

 1
64780-02020C0

ZWE186..WG..G

BLACK,TRIM1#,2#

 1
64780-02020C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N)

BLACK,TRIM2#

 1
64780-02021C0

ZWE186..WG..G

BLACK,TRIM1#,2#

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-A0033

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 11
90467-W0005

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 11
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-A0033

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 11
90467-W0005

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 11
64790B - PANEL ASSY, BACK DOOR TRIM, UPPER
64790-02070C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N)

BLACK,TRIM2#

 1
64790-02070C0

ZWE186..WG..G

BLACK,TRIM1#,2#

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-W0005

ADE186,NDE180,NRE180,ZRE185,ZWE186

 4
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-02050C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N)

BLACK,TRIM2#

 1
67765-02050C0

ZWE186..WG..G

BLACK,TRIM1#,2#

 1
67847E - COVER, BACK DOOR SERVICE HOLE, RH
64745-02280C0

ZWE186..WG..G

BLACK,TRIM1#,2#

 1
64745-02280C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N)

BLACK,TRIM2#

 1
67848 - COVER, BACK DOOR SERVICE HOLE, LH
64745-02280C0

ZWE186..WG..G

BLACK,TRIM1#,2#

 1
64745-02280C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N)

BLACK,TRIM2#

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-02050C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N)

BLACK,TRIM2#

 1
67937-02050C0

ZWE186..WG..G

BLACK,TRIM1#,2#

 1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
67771-58010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
67771-58010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-02050C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N)

BLACK,TRIM2#

 1
67938-02050C0

ZWE186..WG..G

BLACK,TRIM1#,2#

 1
Linked diagrams
7401
