ZWE186L-DWXNBW (2013)
Toyota Auris/Hybrid (Ukp)

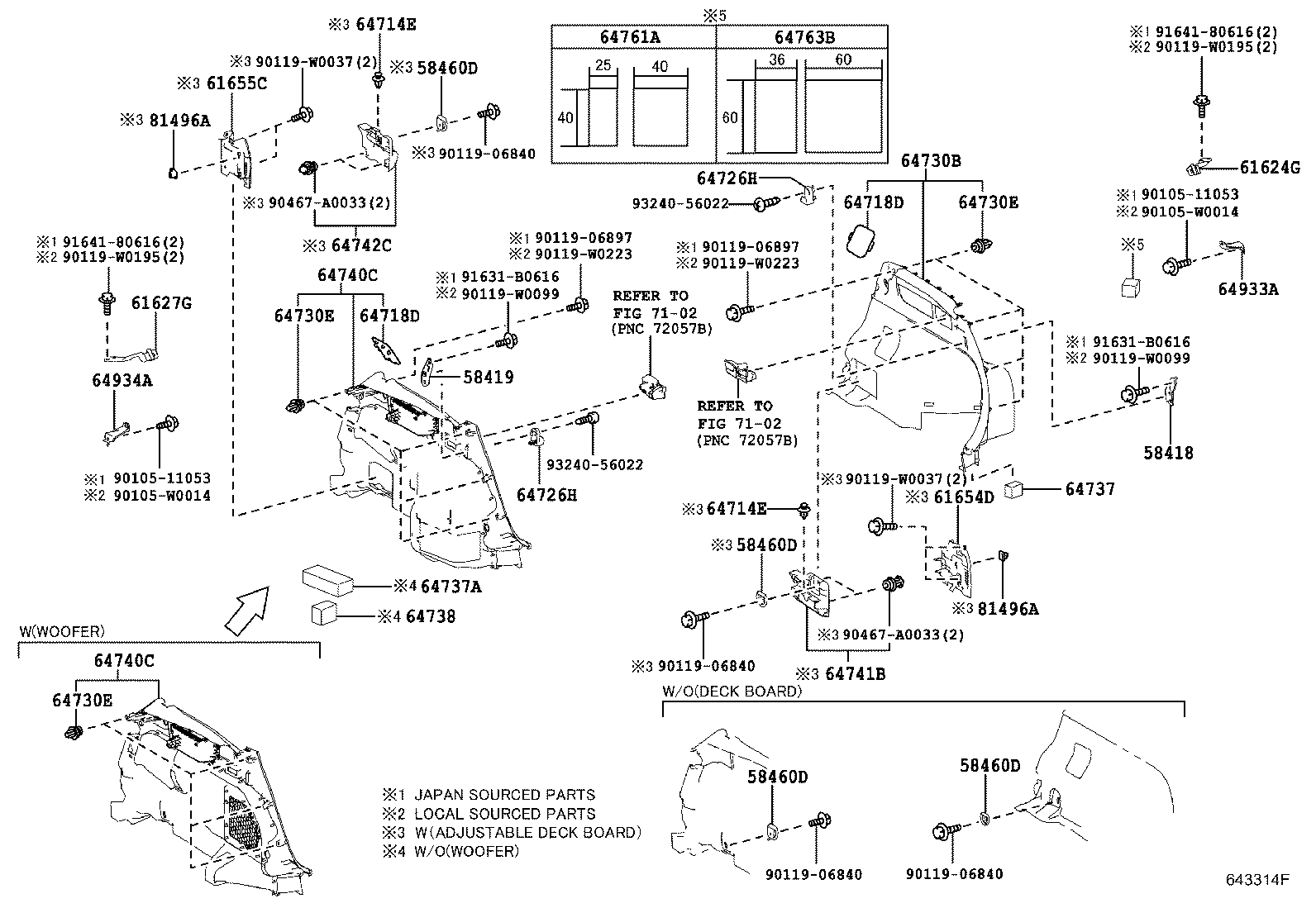

ILLUST NO. 1 OF 2(1306- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58418 - BRACKET, DECK BOARD, NO.1 | ||||
| 58418-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58419 - BRACKET, DECK BOARD, NO.2 | ||||
| 58419-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..G,N |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..G,N |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..G,N |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..G,N |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 58460-33020 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 61624G - BRACKET, DECK SIDE TRIM UPPER, RH | ||||
| 61624-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61627G - BRACKET, DECK SIDE TRIM UPPER, LH | ||||
| 61627-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61654D - BRACKET, DECK SIDE TRIM, NO.2 | ||||
| 58337-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG DECK BOARD-WITH(ADJUSTABLE DECK BOARD) |
1 | ||
| 61655C - BRACKET, DECK SIDE TRIM, NO.3 | ||||
| 58338-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG DECK BOARD-WITH(ADJUSTABLE DECK BOARD) |
1 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-07076C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK |
2 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-07076C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK |
2 | ||
| 64726H - HOOK, DECK SIDE TRIM, NO.2 | ||||
| 64726-05030C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 64726-05030C0 |
ZWE186..G BLACK,TRIM1#,2# |
2 | ||
| 64726H - HOOK, DECK SIDE TRIM, NO.2 | ||||
| 64726-05030C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 64726-05030C0 |
ZWE186..G BLACK,TRIM1#,2# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-02190C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2# |
1 | ||
| 64730-02200C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64730-02200C0 |
ZWE186..WG..G DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM1#,2# |
1 | ||
| 64730-02190C0 |
ZWE186..WG..G BLACK,TRIM1#,2# |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-W0005 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
8 | ||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-W0005 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
8 | ||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-W0005 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
8 | ||
| 90467-W0005 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
8 | ||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 64737 - PAD, DECK TRIM SIDE SILENCER | ||||
| 64737-02050 |
ZWE186..WG |
1 | ||
| 64737A - PAD, DECK TRIM SIDE, NO.3 | ||||
| 64737-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 64738 - PAD, DECK TRIM SIDE, NO.4 | ||||
| 64738-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02170C0 |
ZWE186..WG..G DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02170C0 |
ZWE186..WG..G DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G BLACK,TRIM1#,2# |
1 | ||
| 64740-02160C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2# |
1 | ||
| 64740-02160C0 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64740-02190C0 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64741B - BOX, DECK SIDE TRIM, RH | ||||
| 64741-02040C0 |
ZWE186..WG..G DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM1#,2# |
1 | ||
| 64741-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64742-02040C0 |
ZWE186..WG..G DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM1#,2# |
1 | ||
| 64761A - SILENCER, DECK SIDE TRIM, NO.1 | ||||
| 64761-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 64763B - SILENCER, DECK SIDE TRIM, RH | ||||
| 64763-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 64933A - BRACKET, TONNEAU COVER HOLDER, RH | ||||
| 64933-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 64934A - BRACKET, TONNEAU COVER HOLDER, LH | ||||
| 64934-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 81496A - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-12030 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
2 | ||
| 81496-12030 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
2 | ||
| 81496-12030 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 81496-12030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 81496-12030 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 81496-12030 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 81496-12030 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 81496A - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-12030 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
2 | ||
| 81496-12030 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
2 | ||
| 81496-12030 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 81496-12030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 81496-12030 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
2 | ||
| 81496-12030 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
2 | ||
| 81496-12030 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
2 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90105-W0014 | ||||
| 90119-06840 | ||||
| 90119-06897 | ||||
| 90119-W0037 | ||||
| 90119-W0099 | ||||
| 90119-W0195 | ||||
| 90119-W0223 | ||||
| 90467-A0033 | ||||
| 91631-B0616 | ||||
| 91641-80616 | ||||
| 93240-56022 | ||||
| Linked diagrams | ||||
| 7102 | ||||

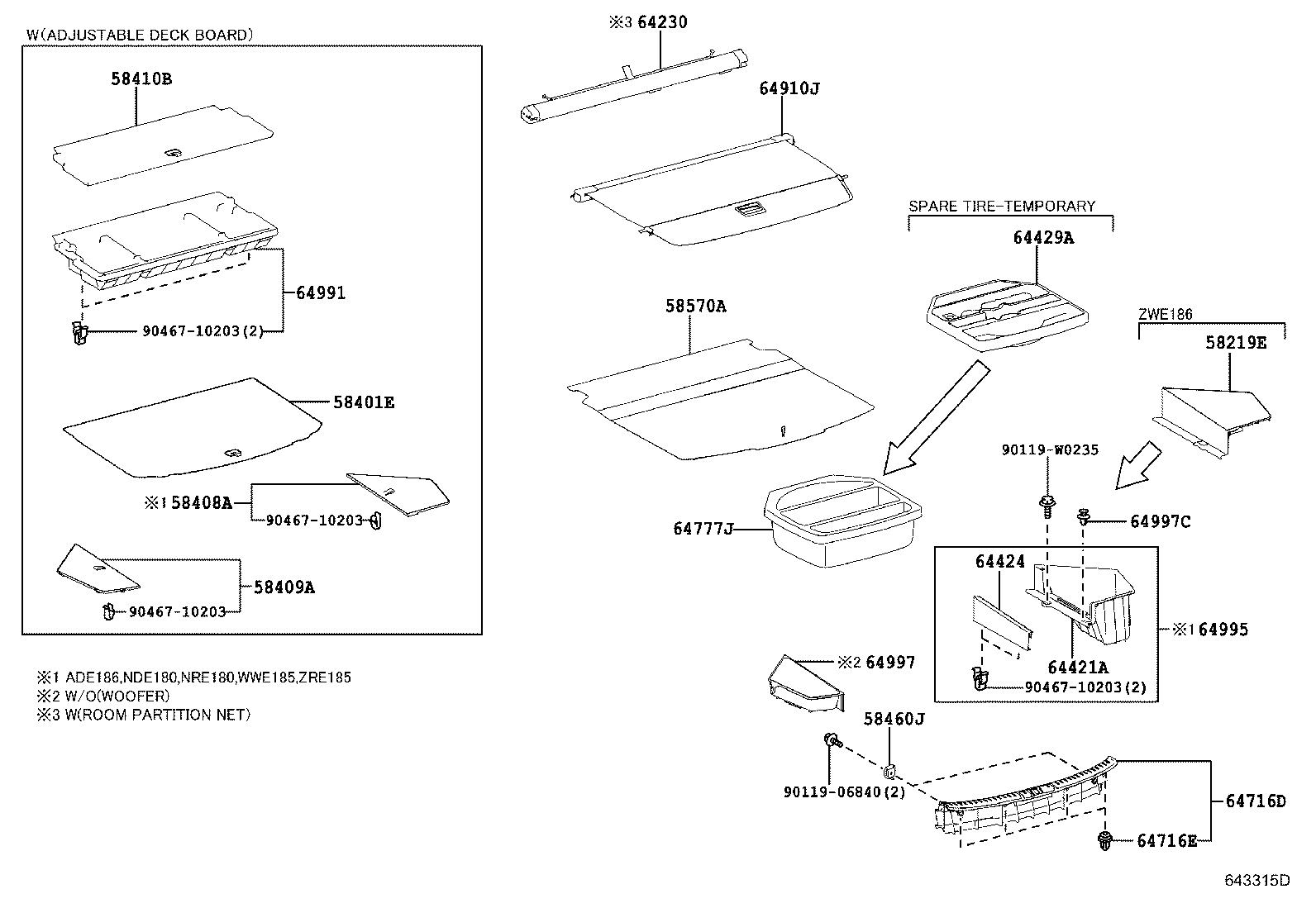

ILLUST NO. 2 OF 2(1306- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58219E - COVER, BATTERY BOX | ||||
| 58219-02030C0 |
ZWE186..WG..N BLACK,TRIM2# |
1 | ||
| 58219-02030C0 |
ZWE186..WG..G BLACK,TRIM1#,2# |
1 | ||
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58401-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 58401-02070C0 |
ZWE186..WG..G DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM1#,2# |
1 | ||
| 58409A - BOARD SUB-ASSY, DECK, NO.3 | ||||
| 58409-02010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 58409-02010C0 |
ZWE186..WG..G DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM1#,2# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-02020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 58410-02020C0 |
ZWE186..WG..G DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM1#,2# |
1 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..G,N |
2 | ||
| 58570A - MAT ASSY, REAR FLOOR | ||||
| 58570-02240C0 |
ZWE186..WG..G BLACK,TRIM1#,2# |
1 | ||
| 58570-02240C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2# |
1 | ||
| 64230 - NET ASSY, ROOM PARTITION | ||||
| 64230-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOM SEPARATOR-WITH(NET) |
1 | ||
| 64429A - BOX, LUGGAGE COMPARTMENT TRIM | ||||
| 64429-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..WG SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G |
1 | ||
| 64429-02010 |
ZWE186..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F&AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 64429-02010 |
ZWE186..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F&AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 64429-02010 |
ZWE186..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F&AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 64429-02010 |
ZWE186..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F&AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 64429-02010 |
ZWE186..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F&AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 64429-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F |
1 | ||
| 64429-02010 |
ZWE186..LHD..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G&AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 64429-02010 |
ZWE186..LHD..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G&AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 64429-02010 |
ZWE186..LHD..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G&AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 64429-02010 |
ZWE186..LHD..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G&AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 64429-02010 |
ZWE186..LHD..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G&AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 64429-02010 |
ZWE186..LHD..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G&AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 64429-02010 |
ZWE186..WG..G SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F&AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 58387-02190C0 |
ZWE186..WG..G LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM1#,2# |
1 | ||
| 58387-02190C0 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&JBL&9SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 58387-02190C0 |
ZWE186..WG..G AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 58387-02190C0 |
ZWE186..WG..G BLACK,TRIM1#,2# |
1 | ||
| 58387-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 58387-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 58387-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64716-02140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2# |
1 | ||
| 58387-02190C0 |
ZWE186..WG..G AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 64716-02140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-02170 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-02040C0 |
ZWE186..WG..G BLACK,TRIM1#,2# |
1 | ||
| 64910-02050C0 |
ZWE186..WG..G ROOM SEPARATOR-WITH(NET),BLACK,TRIM1#,2# |
1 | ||
| 64910-02040C0 |
ZWE186..WG..G LIGHT GRADE,BLACK,TRIM1#,2# |
1 | ||
| 64910-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2# |
1 | ||
| 64910-02050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) ROOM SEPARATOR-WITH(NET),BLACK,TRIM2# |
1 | ||
| 64910-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) LIGHT GRADE,BLACK,TRIM2# |
1 | ||
| 64910-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) LIGHT GRADE&ROOM SEPARATOR-WITH(NET),BLACK,TRIM2# |
1 | ||
| 64910-02051C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) ROOM SEPARATOR-WITH(NET),BLACK,TRIM2# |
1 | ||
| 64910-02040C0 |
ZWE186..WG..G LIGHT GRADE&ROOM SEPARATOR-WITH(NET),BLACK,TRIM1#,2# |
1 | ||
| 64910-02041C0 |
ZWE186..WG..G BLACK,TRIM1#,2# |
1 | ||
| 64910-02041C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) LIGHT GRADE,BLACK,TRIM2# |
1 | ||
| 64910-02041C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) BLACK,TRIM2# |
1 | ||
| 64910-02041C0 |
ZWE186..WG..G LIGHT GRADE,BLACK,TRIM1#,2# |
1 | ||
| 64910-02041C0 |
ZWE186..WG..G LIGHT GRADE&ROOM SEPARATOR-WITH(NET),BLACK,TRIM1#,2# |
1 | ||
| 64910-02041C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(D,N) LIGHT GRADE&ROOM SEPARATOR-WITH(NET),BLACK,TRIM2# |
1 | ||
| 64910-02051C0 |
ZWE186..WG..G ROOM SEPARATOR-WITH(NET),BLACK,TRIM1#,2# |
1 | ||
| 64991 - BOX, DECK FLOOR, FRONT | ||||
| 64070-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG DECK BOARD-WITH(ADJUSTABLE DECK BOARD) |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-02070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| Common parts | ||||
| 90119-06840 | ||||
| 90119-W0235 | ||||
| 90467-10203 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
