ZWE186L-DWXNBW (2013)
Toyota Auris/Hybrid (Ukp)

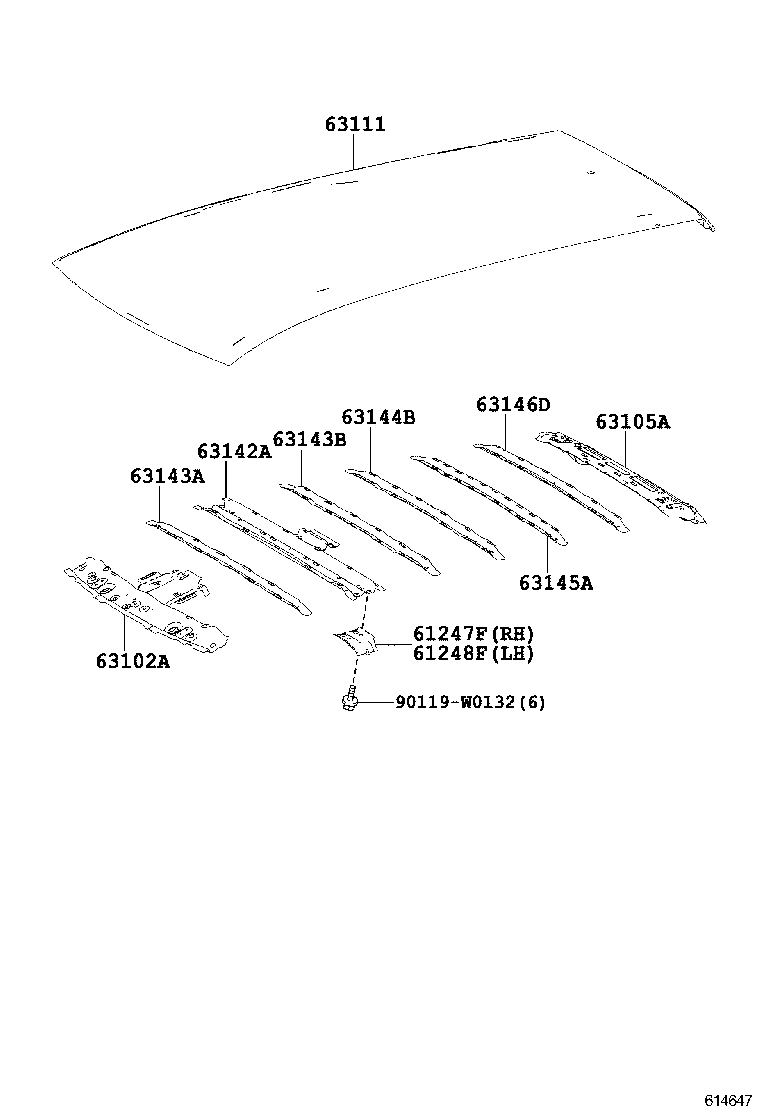

ILLUST NO. 1 OF 2(1306- )WG
NORMAL ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-02170 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61248F - REINFORCEMENT, ROOF SIDE RAIL, INNER, LH | ||||
| 61247-02170 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 63102-02230 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63105-02111 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02390 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63111-02391 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63111-02460 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOF RAIL-WITH(SILVER) |
1 | ||
| 63111-02461 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOF RAIL-WITH(SILVER) |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63103-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63143-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63148-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63126-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63144-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63146D - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63149-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| Common parts | ||||
| 90119-W0132 | ||||

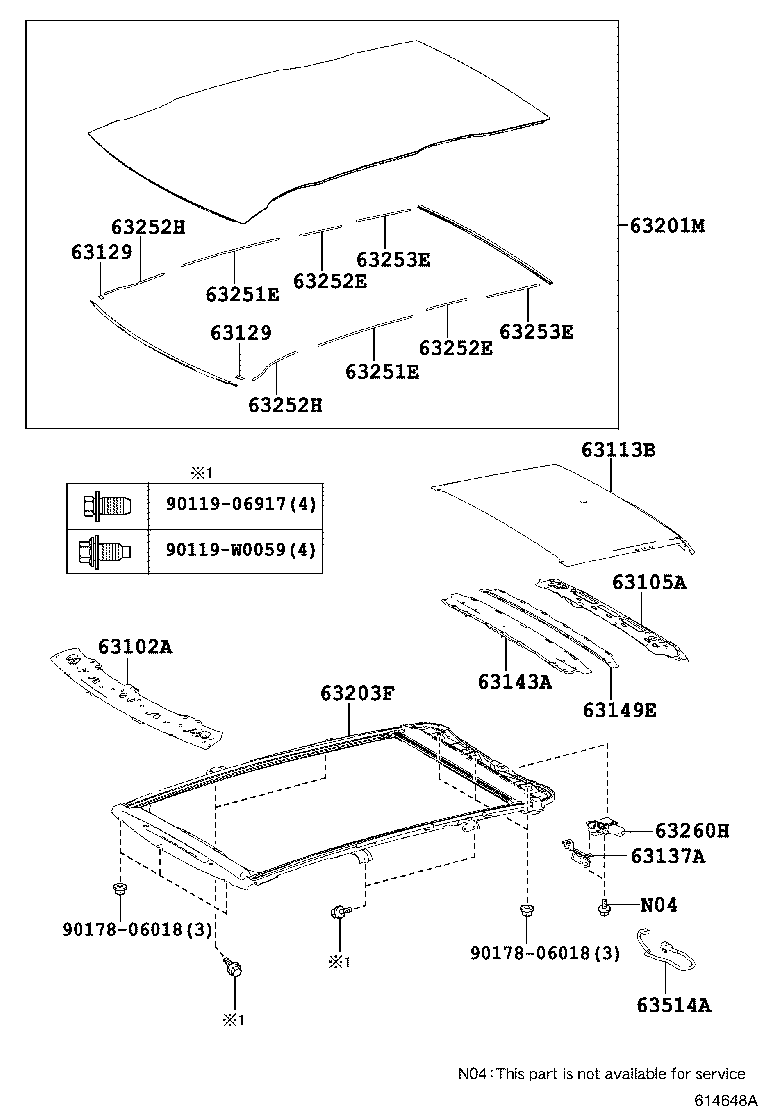

ILLUST NO. 1 OF 2(1306- )WG
PANORAMA ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 63102-02230 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63105-02111 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63113B - PANEL, ROOF, REAR | ||||
| 63113-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63113-02021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63129 - PROTECTOR, WINDSHIELD HEADER | ||||
| 63233-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
2 | ||
| 63129 - PROTECTOR, WINDSHIELD HEADER | ||||
| 63233-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
2 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-02190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63137-02180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 63143-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63149E - BRACKET, ROOF PANEL REINFORCEMENT, NO.2 | ||||
| 63149-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63201M - GLASS SUB-ASSY, ROOF WINDOW, NO.1 | ||||
| 63201-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-02060B4 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),GRAY,TRIM2# |
1 | ||
| 63203-02060B4 |
ZWE186..G ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),GRAY,TRIM1#,2# |
1 | ||
| 63203-02081B4 |
ZWE186..WG..G ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),GRAY,TRIM1#,2# |
1 | ||
| 63203-02081B4 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..N ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),GRAY,TRIM2# |
1 | ||
| 63251E - DAM, ROOF WINDOW, NO.1 | ||||
| 63252-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
2 | ||
| 63251E - DAM, ROOF WINDOW, NO.1 | ||||
| 63252-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
2 | ||
| 63252E - DAM, ROOF WINDOW, NO.2 | ||||
| 63252-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
2 | ||
| 63252E - DAM, ROOF WINDOW, NO.2 | ||||
| 63252-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
2 | ||
| 63252H - DAM, SLIDING ROOF HOUSING | ||||
| 63252-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
2 | ||
| 63252H - DAM, SLIDING ROOF HOUSING | ||||
| 63252-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
2 | ||
| 63253E - DAM, ROOF WINDOW, NO.3 | ||||
| 63252-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
2 | ||
| 63253E - DAM, ROOF WINDOW, NO.3 | ||||
| 63252-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
2 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12170 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63514A - WIRE, CONNECTOR | ||||
| 63514-12010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| Common parts | ||||
| 90119-06917 | ||||
| 90119-W0059 | ||||
| 90178-06018 | ||||

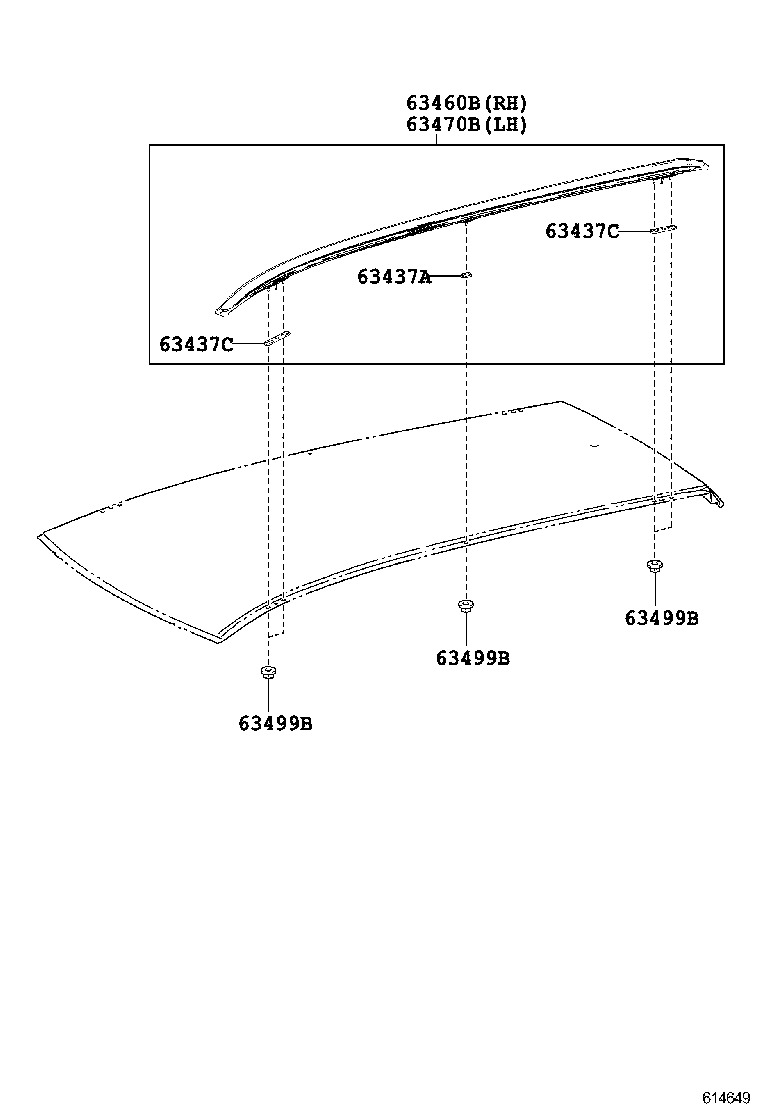

ILLUST NO. 2 OF 2(1306- )WG
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63439-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOF RAIL-WITH(SILVER) |
4 | ||
| 63439-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
4 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOF RAIL-WITH(SILVER) |
8 | ||
| 63437-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
8 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOF RAIL-WITH(SILVER) |
8 | ||
| 63437-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
8 | ||
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63460-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOF RAIL-WITH(SILVER) |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOF RAIL-WITH(SILVER) |
1 | ||
| 63470-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 63499B - NUT, ROOF CARRIER | ||||
| 63499-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
10 | ||
| 63499-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOF RAIL-WITH(SILVER) |
10 | ||
| 63499B - NUT, ROOF CARRIER | ||||
| 63499-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
10 | ||
| 63499-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOF RAIL-WITH(SILVER) |
10 | ||
| 63499B - NUT, ROOF CARRIER | ||||
| 63499-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG..(G,N) ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
10 | ||
| 63499-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG ROOF RAIL-WITH(SILVER) |
10 | ||
