ZWE186L-DWXNBW (2013)
Toyota Auris/Hybrid (Ukp)

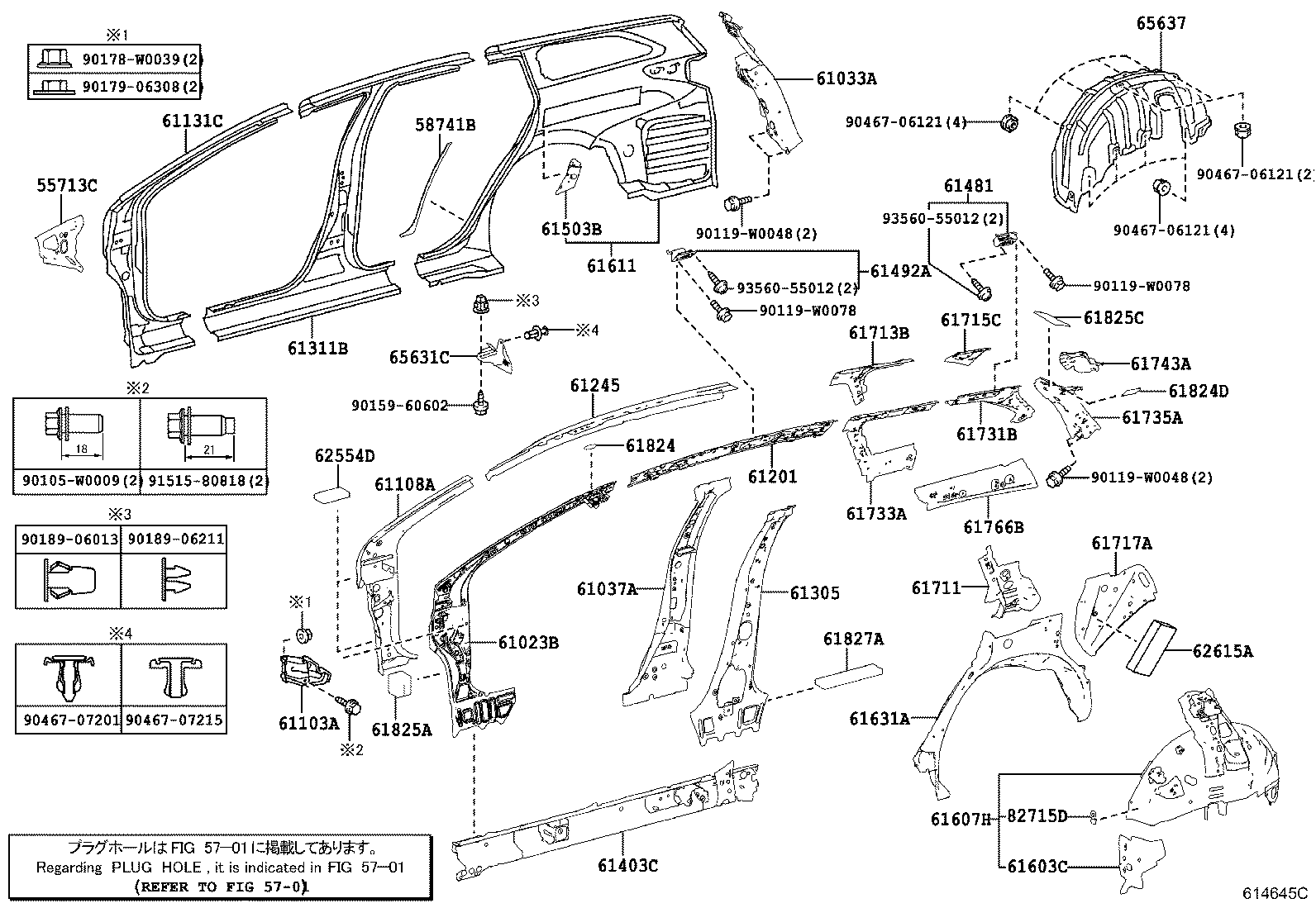

(1306- )WG
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55713C - PANEL, COWL TOP SIDE, RH | ||||
| 55713-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-02270 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-02200 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH | ||||
| 61103-02090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-02180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-02280 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-02180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-02180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-02270 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61311-02271 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61481 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.1 | ||||
| 61481-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61492A - BRACKET, SIDE PANEL STRENGTH, NO.2 RH | ||||
| 61491-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-02620 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-02380 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61601-02381 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61715C - BRACKET, ROOF SIDE, RH | ||||
| 61715-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-02250 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-02070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 61824-52030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 61824-02280 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 62554D - PAD, FRONT PILLER | ||||
| 62554-02190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 62615A - PAD, QUARTER WHEEL HOUSE, NO.3 | ||||
| 62615-05040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 65631C - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-02200 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82715D - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-20350 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90105-W0009 | ||||
| 90119-W0048 | ||||
| 90119-W0078 | ||||
| 90159-60602 | ||||
| 90178-W0039 | ||||
| 90179-06308 | ||||
| 90189-06013 | ||||
| 90189-06211 | ||||
| 90467-06121 | ||||
| 90467-07201 | ||||
| 90467-07215 | ||||
| 91515-80818 | ||||
| 93560-55012 | ||||
| Linked diagrams | ||||
| 5701 | ||||

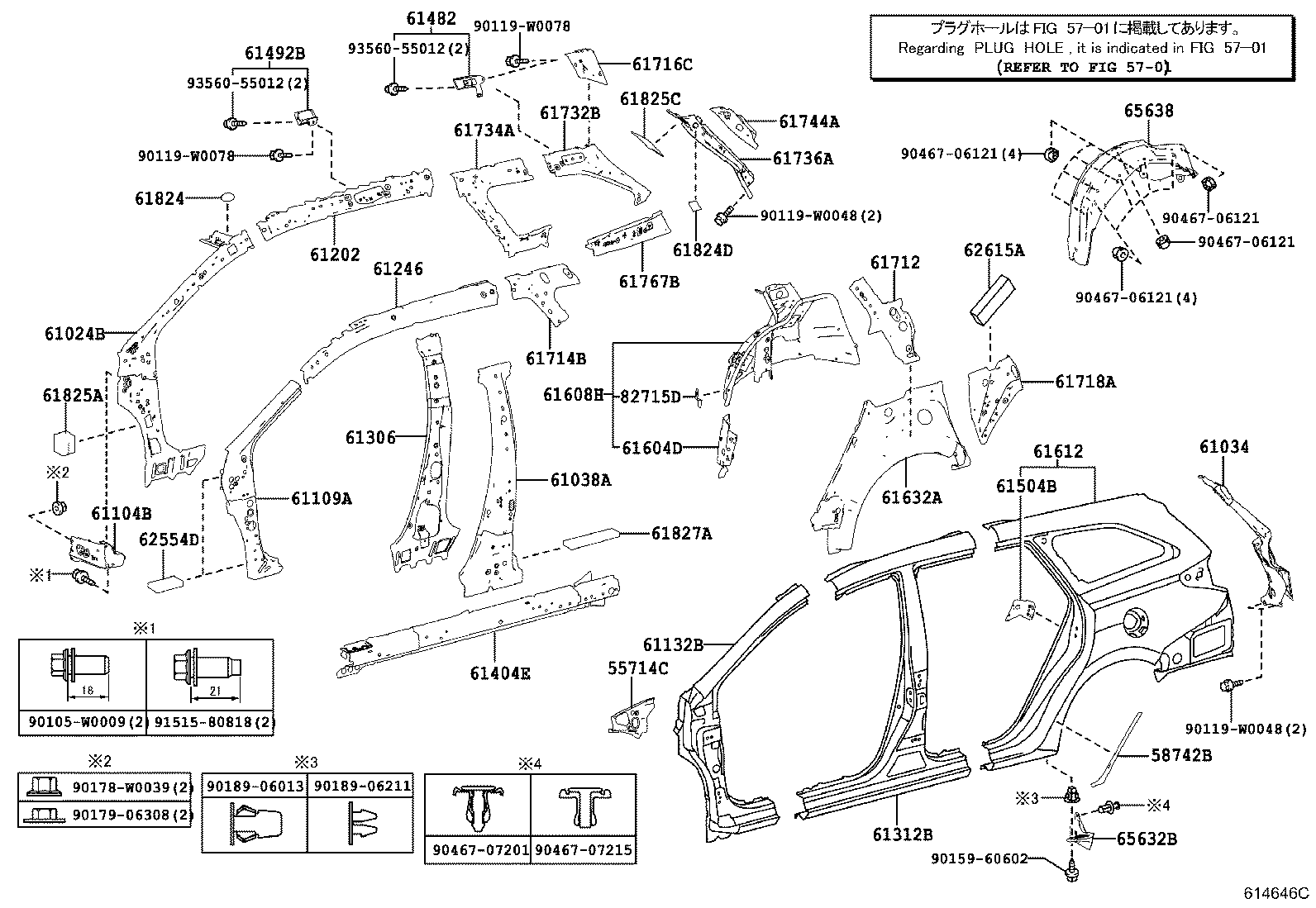

(1306- )WG
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55714C - PANEL, COWL TOP SIDE, LH | ||||
| 55714-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-02250 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-02200 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH | ||||
| 61104-02090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-02180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-02310 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-02180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-02180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-02260 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61312-02261 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61482 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.2 | ||||
| 61482-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61492B - BRACKET, SIDE PANEL STRENGTH, NO.2 LH | ||||
| 61492-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-02510 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-02411 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61602-02410 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-02090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61716C - BRACKET, ROOF SIDE, LH | ||||
| 61716-02070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-02250 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 61824-52030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 61824-02280 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 62554D - PAD, FRONT PILLER | ||||
| 62554-02190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 62615A - PAD, QUARTER WHEEL HOUSE, NO.3 | ||||
| 62615-05040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
2 | ||
| 65632B - PLATE, REAR WHELL HOUSE, FRONT LH | ||||
| 65632-02200 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82715D - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-20350 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90105-W0009 | ||||
| 90119-W0048 | ||||
| 90119-W0078 | ||||
| 90159-60602 | ||||
| 90178-W0039 | ||||
| 90179-06308 | ||||
| 90189-06013 | ||||
| 90189-06211 | ||||
| 90467-06121 | ||||
| 90467-07201 | ||||
| 90467-07215 | ||||
| 91515-80818 | ||||
| 93560-55012 | ||||
| Linked diagrams | ||||
| 5701 | ||||
