ZWE186L-DWXNBW (2013)

Toyota Auris/Hybrid (Ukp)

Production Jun 2013 - May 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1210-1505)ZWE186

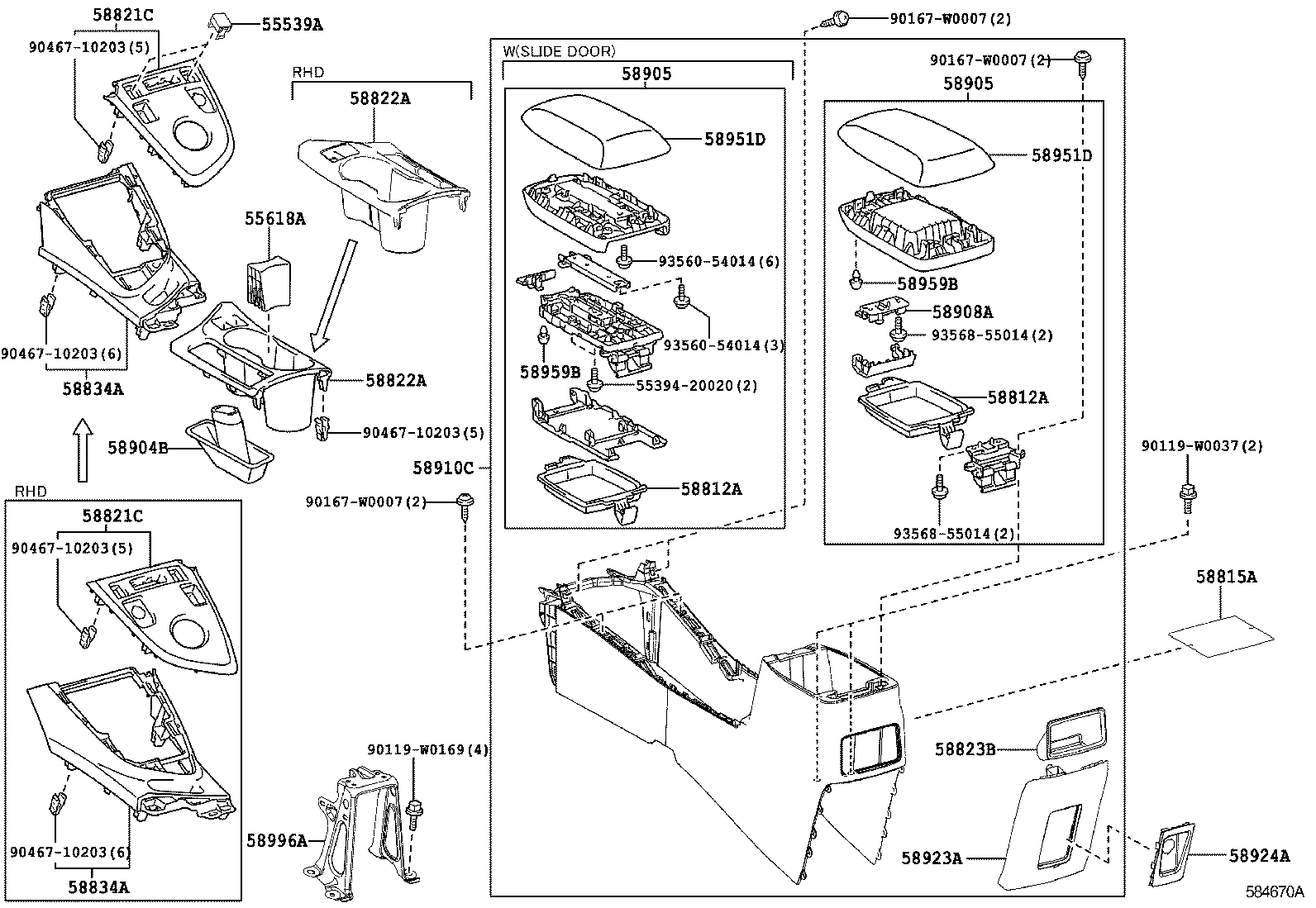

Click highlighted areas on diagram

diagram 5539420020 55539A 55618A 58812A 58812A 58815A 58821C 58821C 58822A 58822A 58823B 58834A 58834A 58904B 58905 58905 58908A 58910C 58923A 58924A 58951D 58951D 58959B 58959B 58996A 90119W0037 90119W0169 90167W0007 90167W0007 90167W0007 9046710203 9046710203 9046710203 9046710203 9046710203 9356054014 9356054014 9356855014 9356855014
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-02100C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
55539-02100C0

ZWE186..G

SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#

 1
55539-02100C0

ZWE186..LHD..N

SEAT HEATER-WITH,BLACK,TRIM2#

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-02190C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
55618-02190C0

ZWE186..G

BLACK,TRIM1#,2#

 1
58812A - BOX, CONSOLE, LOWER
58812-02130C3

ZWE186..G

BLACK,TRIM1#,2#

 1
58812-02130C3

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
58812A - BOX, CONSOLE, LOWER
58812-02130C3

ZWE186..G

BLACK,TRIM1#,2#

 1
58812-02130C3

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
58815A - CARPET, CONSOLE BOX
58815-02240

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
58821C - PANEL, CONSOLE, UPPER
58821-02670C1

ZWE186..LHD..G

BLACK,TRIM1#,2#

 1
58821-02670C1

ZWE186..LHD..N

BLACK,TRIM2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-02670C1

ZWE186..LHD..G

BLACK,TRIM1#,2#

 1
58821-02670C1

ZWE186..LHD..N

BLACK,TRIM2#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-02010C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N)

BLACK,TRIM2#

 1
58822-02010C0

ZWE186..LHD..G

BLACK,TRIM1#,2#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-02010C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N)

BLACK,TRIM2#

 1
58822-02010C0

ZWE186..LHD..G

BLACK,TRIM1#,2#

 1
58823B - BOX, CONSOLE COMPARTMENT
58823-02010C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
58823-02010C0

ZWE186..G

BLACK,TRIM1#,2#

 1
58834A - COVER, CONSOLE, LOWER
58834-02010C0

ZWE186..LHD..N

BLACK,TRIM2#

 1
58834-02010C0

ZWE186..LHD..G

BLACK,TRIM1#,2#

 1
58834A - COVER, CONSOLE, LOWER
58834-02010C0

ZWE186..LHD..N

BLACK,TRIM2#

 1
58834-02010C0

ZWE186..LHD..G

BLACK,TRIM1#,2#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-02190

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02A30C1

ZWE186..G

BLACK,TRIM1#,2#

 1
58905-02A20C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..N

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02A30C1

ZWE186..G

BLACK,TRIM1#,2#

 1
58905-02A20C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..N

BLACK,TRIM2#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-02450C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..N

BLACK,TRIM2#

 1
58910-02460C1

ZWE186..G

BLACK,TRIM1#,2#

 1
58923A - PANEL, CONSOLE REAR END
58923-02160C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
58923-02160C0

ZWE186..G

BLACK,TRIM1#,2#

 1
58924A - PANEL, CONSOLE REAR END, NO.2
58924-02010C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
58924-02010C0

ZWE186..G

BLACK,TRIM1#,2#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02800C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..N

BLACK,TRIM2#

 1
58951-02810C1

ZWE186..G

BLACK,TRIM1#,2#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02800C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..N

BLACK,TRIM2#

 1
58951-02810C1

ZWE186..G

BLACK,TRIM1#,2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

ADE186,NDE180,NRE180,ZRE185,ZWE186

 3
90541-03078

ADE186,NDE180,NRE180,ZRE185,ZWE186

 3
58959-60060

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 3
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

ADE186,NDE180,NRE180,ZRE185,ZWE186

 3
90541-03078

ADE186,NDE180,NRE180,ZRE185,ZWE186

 3
58959-60060

ADE186,NDE180,NRE180,ZRE185,ZWE186..WG

 3
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-02100

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
Common parts
55394-20020
90119-W0037
90119-W0169
90167-W0007
90467-10203
93560-54014
93568-55014
