ZWE186L-DWXNBW (2013)
Toyota Auris/Hybrid (Ukp)
ILLUST NO. 1 OF 2(1210-1601)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02350C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55303-02350C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55303-02351C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55303-02351C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02430 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02300 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02290C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55317-02290C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02120C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55318-02120C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02290 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
12 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
12 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 22 X 12 X 1240 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 22 X 12 X 1240 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-02900C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55401-02900C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-02640C0 |
ZWE186..LHD..G REFRIGERANT GAS TYPE=R-134A,BLACK,TRIM1#,2# |
1 | ||
| 55548-02640C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) REFRIGERANT GAS TYPE=R-134A,BLACK,TRIM2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55961-02110C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55962-02070C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02170C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 58816-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02170C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 58817-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02130 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90105-W0175 | ||||
| 90119-W0037 | ||||
| 90119-W0141 | ||||
| 90159-50311 | ||||
| 90159-60303 | ||||
| 90159-W0019 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||

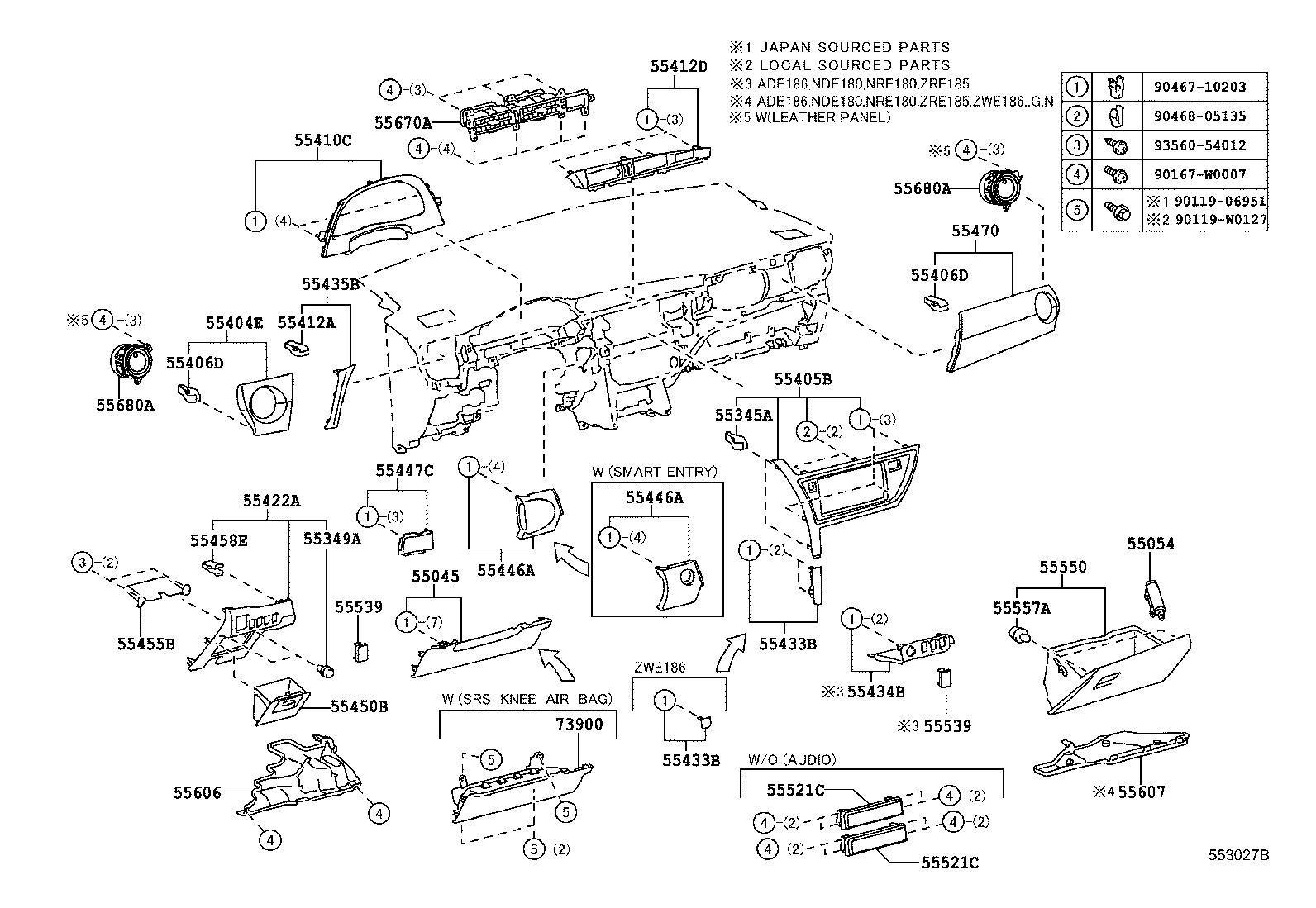

ILLUST NO. 2 OF 2(1210-1505)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 58959-60060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-02160C2 |
ZWE186..LHD..G LIGHT GRADE&INSTRUMENT FINISH PANEL-BASE(BLACK HAIRLINE)&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK/BLACK,TRIM2# |
1 | ||
| 55404-02250B1 |
ZWE186..LHD..N ICE GRAY/BLACK,TRIM2# |
1 | ||
| 55404-02270C3 |
ZWE186..LHD..G BLACK,TRIM20 |
1 | ||
| 55404-02270B2 |
ZWE186..LHD..G ICE GRAY,TRIM1#,20 |
1 | ||
| 55404-02160C2 |
ZWE186..LHD..WG..N LIGHT GRADE,BLACK/BLACK,TRIM2# |
1 | ||
| 55404-02500C0 |
ZWE186..LHD..N MODELYEAR 14,BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02440B1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) MD.SILVER/BLACK,TRIM2# |
1 | ||
| 55405-02440B1 |
ZWE186..LHD..G MD.SILVER/BLACK,TRIM1#,2# |
1 | ||
| 55405-02260B1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(G,N) LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS,MD.SILVER/BLACK,TRIM2# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
13 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
13 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02240C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55410-02240C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55412A - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
3 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-02230 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02270C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55422-02270C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02370C0 |
ZWE186..LHD..N BLACK,TRIM2# |
1 | ||
| 55433-02370C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02370C0 |
ZWE186..LHD..N BLACK,TRIM2# |
1 | ||
| 55433-02370C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-02390C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55435-02390C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02310C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55446-02310C0 |
ZWE186..LHD..N BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02310C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55446-02310C0 |
ZWE186..LHD..N BLACK,TRIM2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02060C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55447-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02110C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 55450-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55455B - COIN BOX | ||||
| 55455-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
ZWE186;ADE186,NDE180,NRE180,ZRE185..LHD |
8 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02030C2 |
ZWE186..LHD..G LIGHT GRADE&INSTRUMENT FINISH PANEL-BASE(BLACK HAIRLINE)&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK/BLACK,TRIM2# |
1 | ||
| 55470-02110B1 |
ZWE186..LHD..N ICE GRAY/BLACK,TRIM2# |
1 | ||
| 55470-02130B2 |
ZWE186..LHD..G ICE GRAY,TRIM1#,20 |
1 | ||
| 55470-02130C3 |
ZWE186..LHD..G BLACK,TRIM20 |
1 | ||
| 55470-02030C2 |
ZWE186..LHD..WG..N LIGHT GRADE,BLACK/BLACK,TRIM2# |
1 | ||
| 55470-02450C0 |
ZWE186..LHD..N MODELYEAR 14,BLACK,TRIM2# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NDE180,NRE180..N;ADE186,ZRE185,ZWE186;NDE180,NRE180..LHD..D AUDIO-RADIO LESS & SPEAKER LESS |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NDE180,NRE180..N;ADE186,ZRE185,ZWE186;NDE180,NRE180..LHD..D AUDIO-RADIO LESS & SPEAKER LESS |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100C0 |
ZWE186..G BLACK,TRIM1#,2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02290C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 55550-02290C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02140 |
ZWE186..LHD |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02310 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-02020C0 |
ZWE186..G BLACK,TRIM1#,2# |
2 | ||
| 55680-02020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 55680-02070C0 |
ZWE186..G BLACK,TRIM1#,2# |
2 | ||
| 55680-02020C0 |
ZWE186..G BLACK,TRIM1#,2# |
2 | ||
| 55680-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 55680-02020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-02020C0 |
ZWE186..G BLACK,TRIM1#,2# |
2 | ||
| 55680-02020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 55680-02070C0 |
ZWE186..G BLACK,TRIM1#,2# |
2 | ||
| 55680-02020C0 |
ZWE186..G BLACK,TRIM1#,2# |
2 | ||
| 55680-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 55680-02020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02050C0 |
ZWE186..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 73900-02050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
