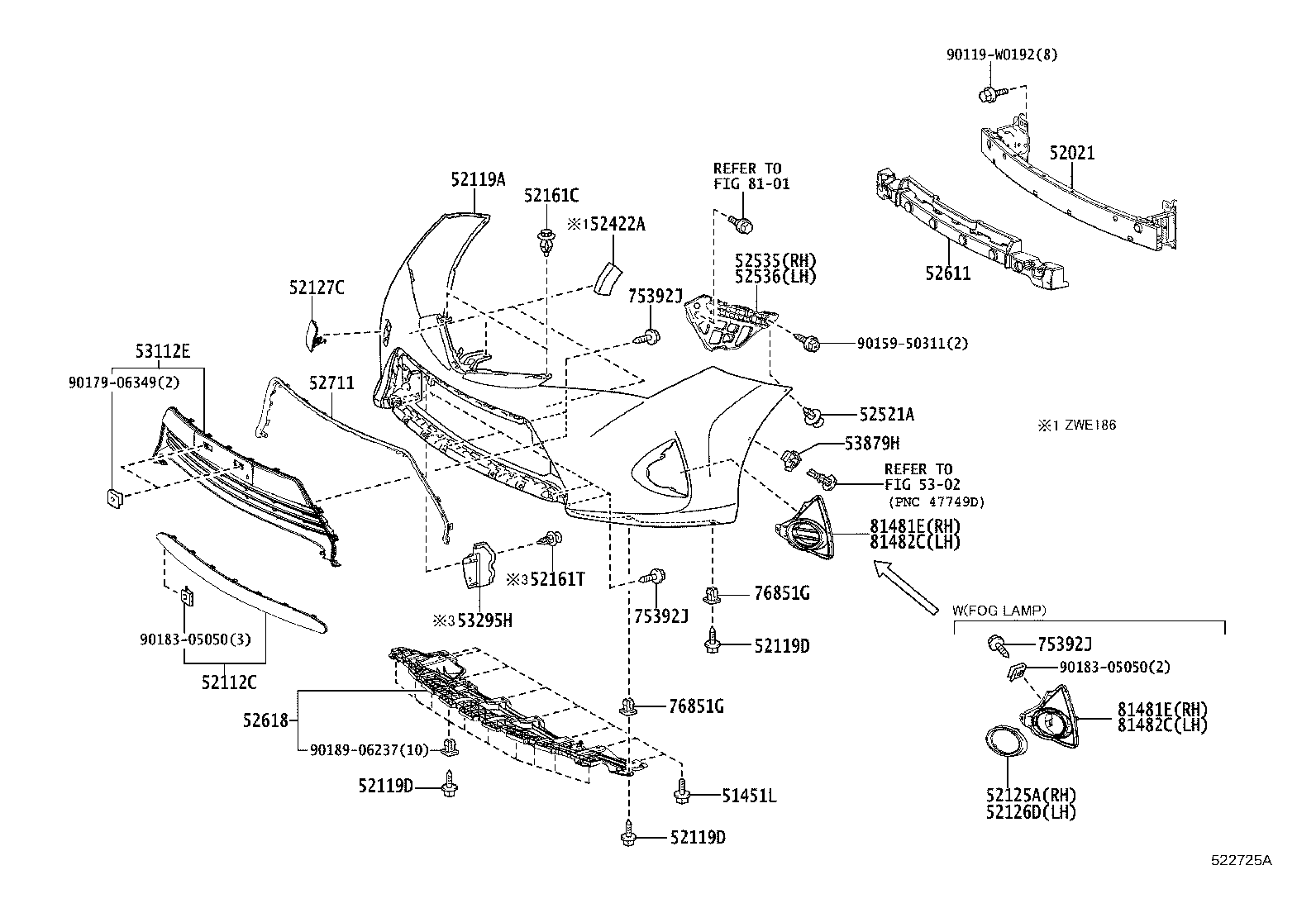

Toyota Auris/hybrid (ukp) ZWE186 FRONT BUMPER & BUMPER STAY

Part #	Description	Period	Qty
51451L - BOLT, NO.1
90119-06767	ADE186,NDE180,NRE180,ZRE185,ZWE186 (J)	10/2012 - 05/2015	8
90119-W0089	ADE186,NDE180,NRE180,ZRE185,ZWE186 (L)	10/2012 - 05/2015	8
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02230	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 08/2013	1
52021-02310	ADE186,NDE180,NRE180,ZRE185,ZWE186	09/2013 - 05/2015	1
52112C - EXTENSION, FRONT BUMPER
52112-02040	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N	10/2012 - 05/2015	1
52119A - COVER, FRONT BUMPER
52119-0Z925	ADE186,NDE180,NRE180,ZRE185,ZWE186..N PAINT REQ.,CLEARANCE & BACK SONAR-WITH	10/2012 - 05/2015	1
52119-0Z923	ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N PAINT REQ.	10/2012 - 05/2015	1
52119-0Z925	ZWE186..G PAINT REQ.	10/2012 - 05/2015	1
52119-0Z924	ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) PAINT REQ.,HEADLAMP CLEANER-WITH	10/2012 - 05/2015	1
52119-0Z926	ZWE186..LHD..G PAINT REQ.,HEADLAMP CLEANER-WITH	10/2012 - 05/2015	1
52119-0Z926	ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH	10/2012 - 05/2015	1
52119D - SCREW, NO.1
90159-W0007	ADE186,NDE180,NRE180,ZRE185,ZWE186 (L)	10/2012 - 05/2015	2
90159-60431	ADE186,NDE180,NRE180,ZRE185,ZWE186 (J)	10/2012 - 05/2015	6
52119D - SCREW, NO.1
90159-W0007	ADE186,NDE180,NRE180,ZRE185,ZWE186 (L)	10/2012 - 05/2015	2
90159-60431	ADE186,NDE180,NRE180,ZRE185,ZWE186 (J)	10/2012 - 05/2015	6
52119D - SCREW, NO.1
90159-W0007	ADE186,NDE180,NRE180,ZRE185,ZWE186 (L)	10/2012 - 05/2015	2
90159-60431	ADE186,NDE180,NRE180,ZRE185,ZWE186 (J)	10/2012 - 05/2015	6
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-02080	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N	10/2012 - 05/2015	1
52126D - BRACKET, FOG LAMP MOUNTING, LH
52126-02070	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N	10/2012 - 05/2015	1
52127C - COVER, FRONT BUMPER HOLE
52127-02919	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
52161C - PIECE, FRONT BUMPER
52161-02030	ADE186,NDE180,NRE180,ZRE185,ZWE186 (L)	10/2012 - 05/2015	1
52161-16010	ADE186,NDE180,NRE180,ZRE185,ZWE186 (J)	10/2012 - 05/2015	1
52161T - PIECE, FRONT BUMPER
52161-02030	ZWE186 (L)	10/2012 - 05/2015	2
52161-16010	ZWE186 (J)	10/2012 - 05/2015	2
52422A - PAD, FRONT BUMPER, RH
52422-02020	ZWE186	10/2012 - 05/2015	2
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05170	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-02050	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-02040	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02260	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-02040	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
52711 - MOULDING, FRONT BUMPER
52711-02010	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N PLATED	10/2012 - 05/2015	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53102-02110	ZWE186..G PLATED	10/2012 - 05/2015	1
53112-02420	ZWE186..N NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH	10/2012 - 05/2015	1
53112-02410	ZWE186..N NO PAINT REQ.	10/2012 - 05/2015	1
53112-02420	ZWE186..LHD..N NO PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH	10/2012 - 05/2015	1
53295H - DEFLECTOR, RADIATOR LOWER AIR
53295-02010	ZWE186	10/2012 - 05/2015	1
53879H - RETAINER, FRONT FENDER LINER
53879-50020	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	2
75392J - RETAINER, OUTSIDE MOULDING
75392-42030	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N	10/2012 - 05/2015	11
75392J - RETAINER, OUTSIDE MOULDING
75392-42030	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N	10/2012 - 05/2015	11
75392J - RETAINER, OUTSIDE MOULDING
75392-42030	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N	10/2012 - 05/2015	11
76851G - GROMMET, SCREW, NO.1
90189-06237	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	4
76851G - GROMMET, SCREW, NO.1
90189-06237	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	4
81481E - COVER, FOG LAMP, RH
81481-02290	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N	10/2012 - 05/2015	1
81481E - COVER, FOG LAMP, RH
81481-02290	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N	10/2012 - 05/2015	1
81482C - COVER, FOG LAMP, LH
81482-02280	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N	10/2012 - 05/2015	1
81482C - COVER, FOG LAMP, LH
81482-02280	ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N	10/2012 - 05/2015	1
Common parts
90119-W0192
90159-50311
90179-06349
90183-05050
90189-06237
Linked diagrams
5302
8101

ZWE186L-DWXNBW (2013)

(1210-1505)
