ZWE186L-DWXDBW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )WG

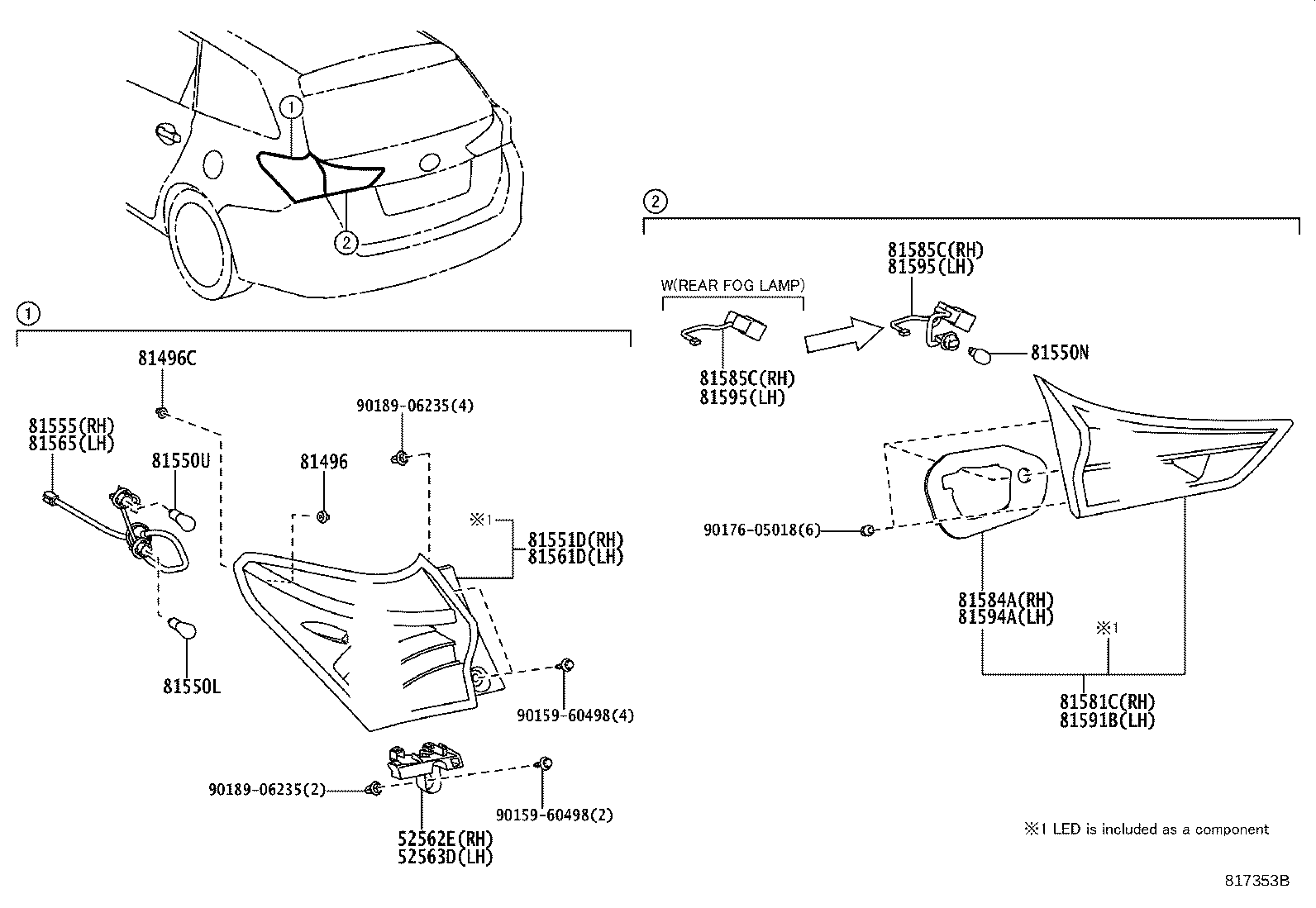

Click highlighted areas on diagram

diagram 52562E 52563D 81496 81496C 81550L 81550N 81550U 81551D 81555 81561D 81565 81581C 81584A 81585C 81585C 81591B 81594A 81595 81595 9015960498 9015960498 9017605018 9018906235 9018906235
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-02240

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-02240

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

NDE180,NRE18#,ZRE185,ZWE186

 2
81496-28010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-52020

NDE180,NRE18#,ZRE185,ZWE186

 2
81496-52020

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-WB007

ADE186,NDE180,NRE180,ZRE185,ZWE186

12V 16W

 2
90981-15028

NDE180,NRE18#,ZRE185,ZWE186

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-WB007

ADE186,NDE180,NRE180,ZRE185,ZWE186

12V 16W

 1
90981-11059

NDE180,NRE18#,ZRE185,ZWE186

12V 16W

 1
81550U - BULB, STOP LAMP
90981-13093

NDE180,NRE18#,ZRE185,ZWE186

12V 21W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02A51

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
81551-02A50

NDE180,NRE18#,WWE185,ZRE185,ZWE186..WG

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02A50

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02A50

NDE180,NRE18#,WWE185,ZRE185,ZWE186..WG

 1
81561-02A51

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-02A50

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-02880

NDE180,NRE18#,ZRE185,ZWE186..LHD..WG

 1
81584A - GASKET, REAR LAMP RH
81584-02870

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-02880

NDE180,NRE18#,ZRE185,ZWE186..LHD..WG

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-02880

NDE180,NRE18#,ZRE185,ZWE186..LHD..WG

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-02880

NDE180,NRE18#,ZRE185,ZWE186..LHD..WG

 1
81594A - GASKET, REAR LAMP LH
81594-02870

NDE180,NRE18#,ZRE185,ZWE186..WG

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-02870

NDE180,NRE18#,ZRE185,ZWE186..LHD..WG

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-02870

NDE180,NRE18#,ZRE185,ZWE186..LHD..WG

 1
Common parts
90159-60498
90176-05018
90189-06235
