ZWE186L-DHXNBW (2012)
Toyota Auris/Hybrid (Ukp)
ILLUST NO. 1 OF 3(1210- )ZWE186

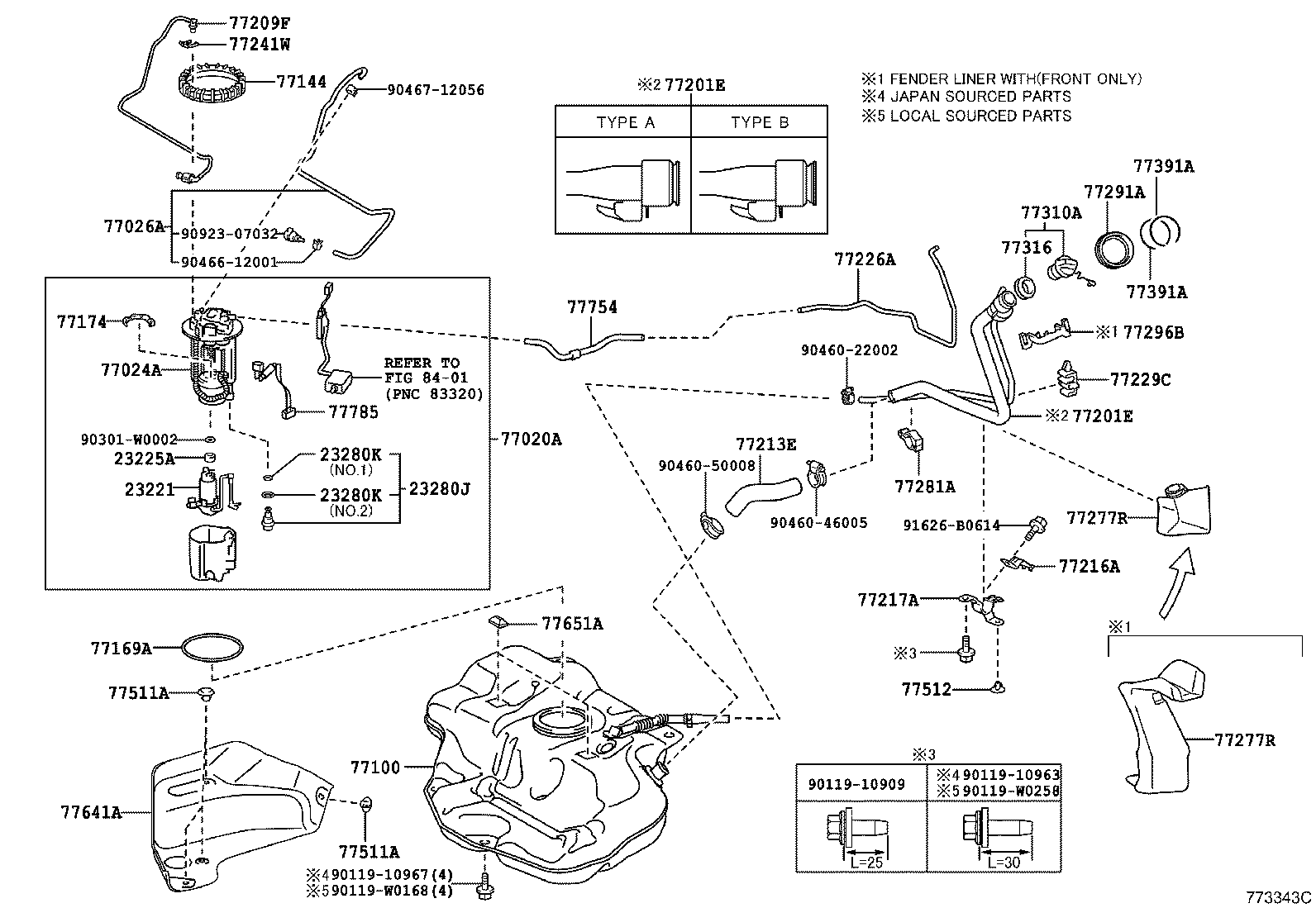

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0Q041 |
1NRFE,2ZRFXE..NRE180,ZWE186 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0T010 |
1NRFE,1ZRFAE,2ZRFXE..NRE180,ZRE185,ZWE186 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1NRFE,1ZRFAE,2ZRFXE..NRE180,ZRE185,ZWE186 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NRFE,1ZRFAE,2ZRFXE..NRE180,ZRE185,ZWE186 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
1NRFE,1ZRFAE,2ZRFXE..NRE180,ZRE185,ZWE186 NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NRFE,1ZRFAE,2ZRFXE..NRE180,ZRE185,ZWE186 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
1NRFE,1ZRFAE,2ZRFXE..NRE180,ZRE185,ZWE186 NO.2:REFER ILLUST. |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02500 |
ZWE186 |
1 | ||
| 77020-02501 |
ZWE186 |
1 | ||
| 77020-02502 |
ZWE186 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02090 |
ZWE186 |
1 | ||
| 77024-02330 |
ZWE186 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-02070 |
ZWE186 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02560 |
ZWE186 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-05010 |
NRE180,ZRE185,ZWE186 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02490 |
NRE180,ZRE185,ZWE186 TYPE B:REFER ILLUST. |
1 | ||
| 77201-12840 |
NRE180,ZRE185,ZWE186 TYPE A:REFER ILLUST. |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02490 |
NRE180,ZRE185,ZWE186 TYPE B:REFER ILLUST. |
1 | ||
| 77201-12840 |
NRE180,ZRE185,ZWE186 TYPE A:REFER ILLUST. |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02190 |
ZWE186 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-20190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
1 | ||
| 77213-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
1 | ||
| 77213-20190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PNC 77201E=TYPE A |
1 | ||
| 77216-02170 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PNC 77201E=TYPE B |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-47080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PNC 77201E=TYPE A |
1 | ||
| 77217-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PNC 77201E=TYPE B |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-02070 |
NRE180,ZRE185,ZWE186 PNC 77201E=TYPE B |
1 | ||
| 77226-12120 |
NRE180,ZRE185,ZWE186 PNC 77201E=TYPE A |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NRE180,ZRE185,ZWE186 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 FENDER LINER-WITH(FRONT ONLY) |
1 | ||
| 77277-12180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 FENDER LINER-WITH(FRONT ONLY) |
1 | ||
| 77277-12180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12200 |
NRE180,ZRE185,ZWE186 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-52030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 FENDER LINER-WITH(FRONT ONLY) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
NRE180,ZRE185,ZWE186 |
1 | ||
| 77300-52030 |
NRE180,ZRE185,ZWE186 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ZWE186 |
4 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ZWE186 |
4 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02180 |
ZWE186 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-02110 |
ZWE186 |
2 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-02090 |
ZWE186 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02081 |
ZWE186 |
1 | ||
| 77785-02081 |
ZWE186 (L) |
1 | ||
| Common parts | ||||
| 90119-10909 | ||||
| 90119-10963 | ||||
| 90119-10967 | ||||
| 90119-W0168 | ||||
| 90119-W0258 | ||||
| 90301-W0002 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-12001 | ||||
| 90467-12056 | ||||
| 90923-07032 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1210- )ZWE186

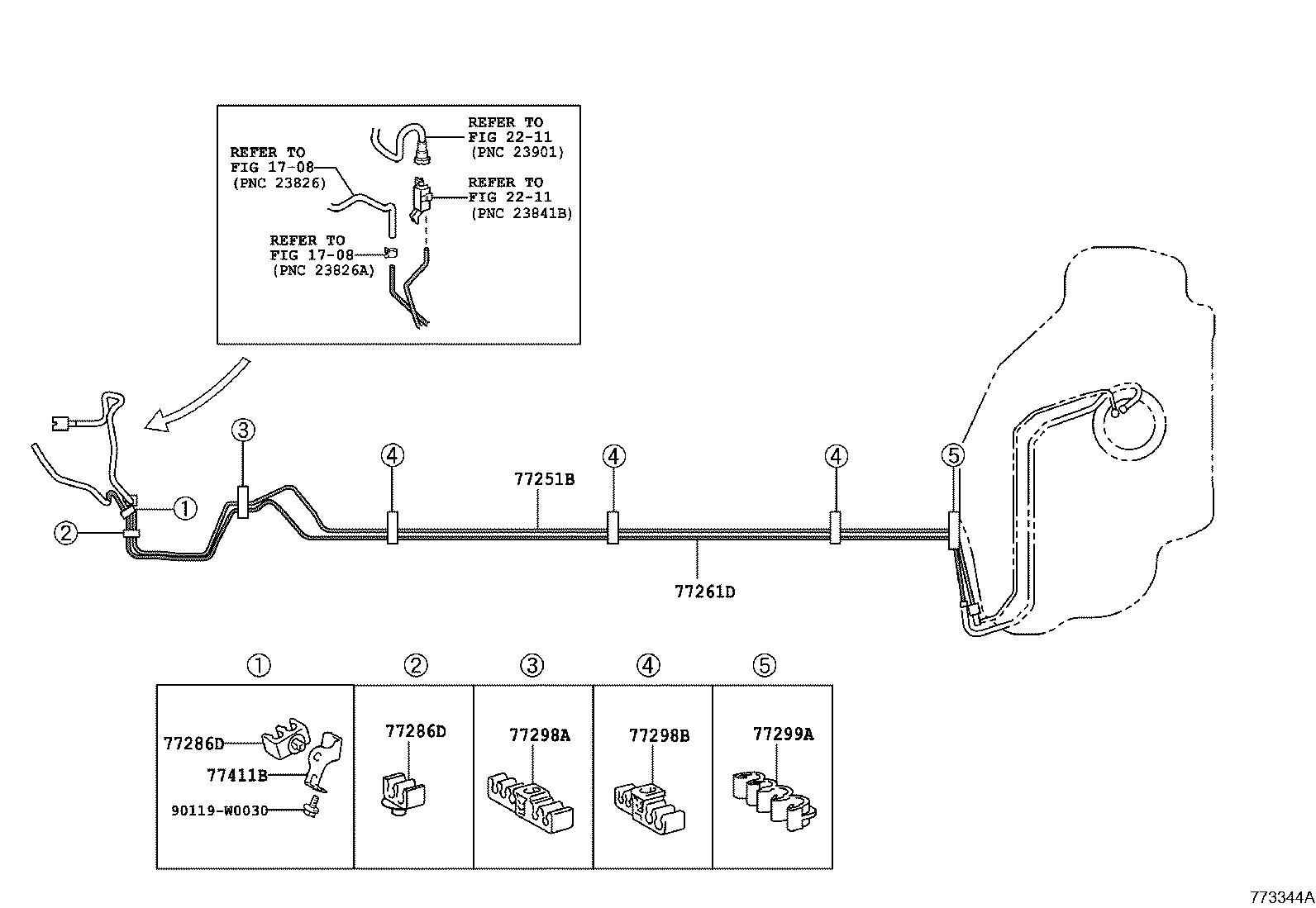

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02580 |
ZWE186 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02440 |
ZWE186 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-02060 |
ZWE186 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-02060 |
ZWE186 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
3 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-02030 |
ZWE186 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-02010 |
ZWE186 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1210- )HB
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02330 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB NO.1:REFER ILLUST. |
1 | ||
| 77035-02340 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB NO.2:REFER ILLUST. |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02330 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB NO.1:REFER ILLUST. |
1 | ||
| 77035-02340 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB NO.2:REFER ILLUST. |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02330 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB NO.1:REFER ILLUST. |
1 | ||
| 77035-02340 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB NO.2:REFER ILLUST. |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0D120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 77306-52060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0D120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 77306-52060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90269-06017 | ||||
