ZWE186L-DHXNBW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )ZWE186

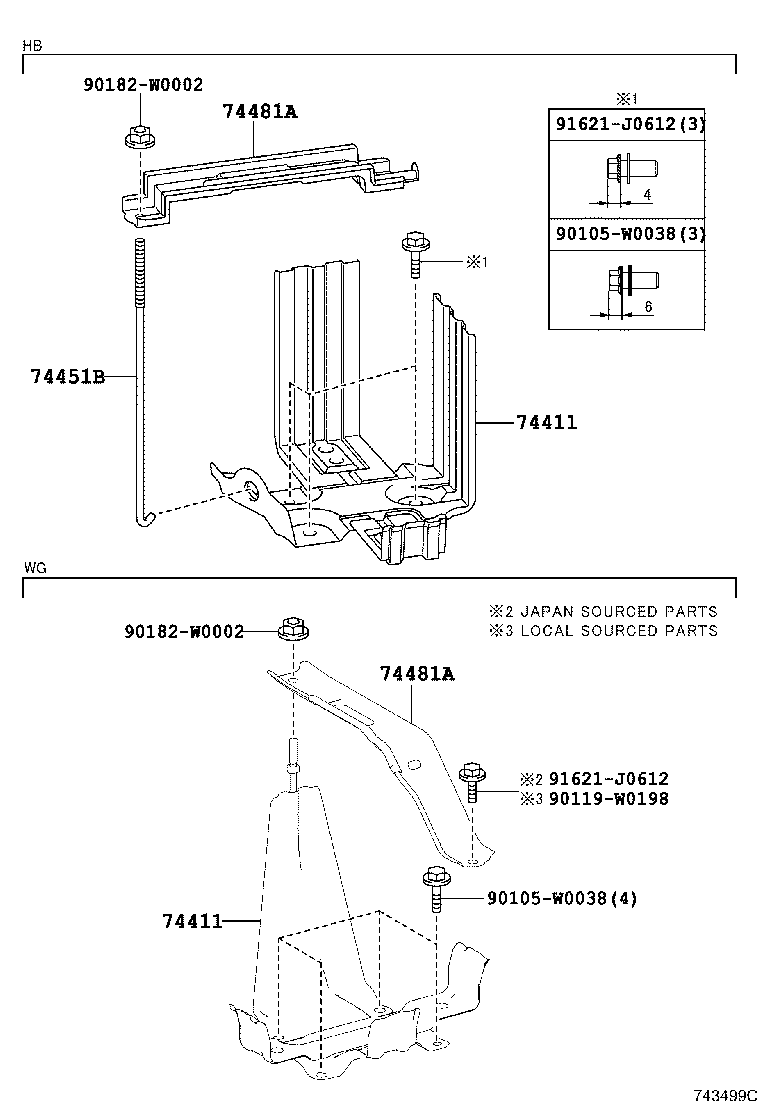

Click highlighted areas on diagram

diagram 74411 74411 74451B 74481A 74481A 90105W0038 90105W0038 90119W0198 90182W0002 90182W0002 91621J0612 91621J0612
Part # Description Qty Price
74411 - CARRIER, BATTERY
74410-02130

ZWE186..HB

 1
74411 - CARRIER, BATTERY
74410-02130

ZWE186..HB

 1
74451B - BOLT, BATTERY CLAMP
74451-52010

ZWE186..HB

 1
74451-02150

ZWE186..HB

 1
74481A - CLAMP, BATTERY
74481-02250

ZWE186..HB

 1
74481A - CLAMP, BATTERY
74481-02250

ZWE186..HB

 1
Common parts
90105-W0038
90119-W0198
90182-W0002
91621-J0612
