ZWE186L-DHXNBW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )2ZRFXE

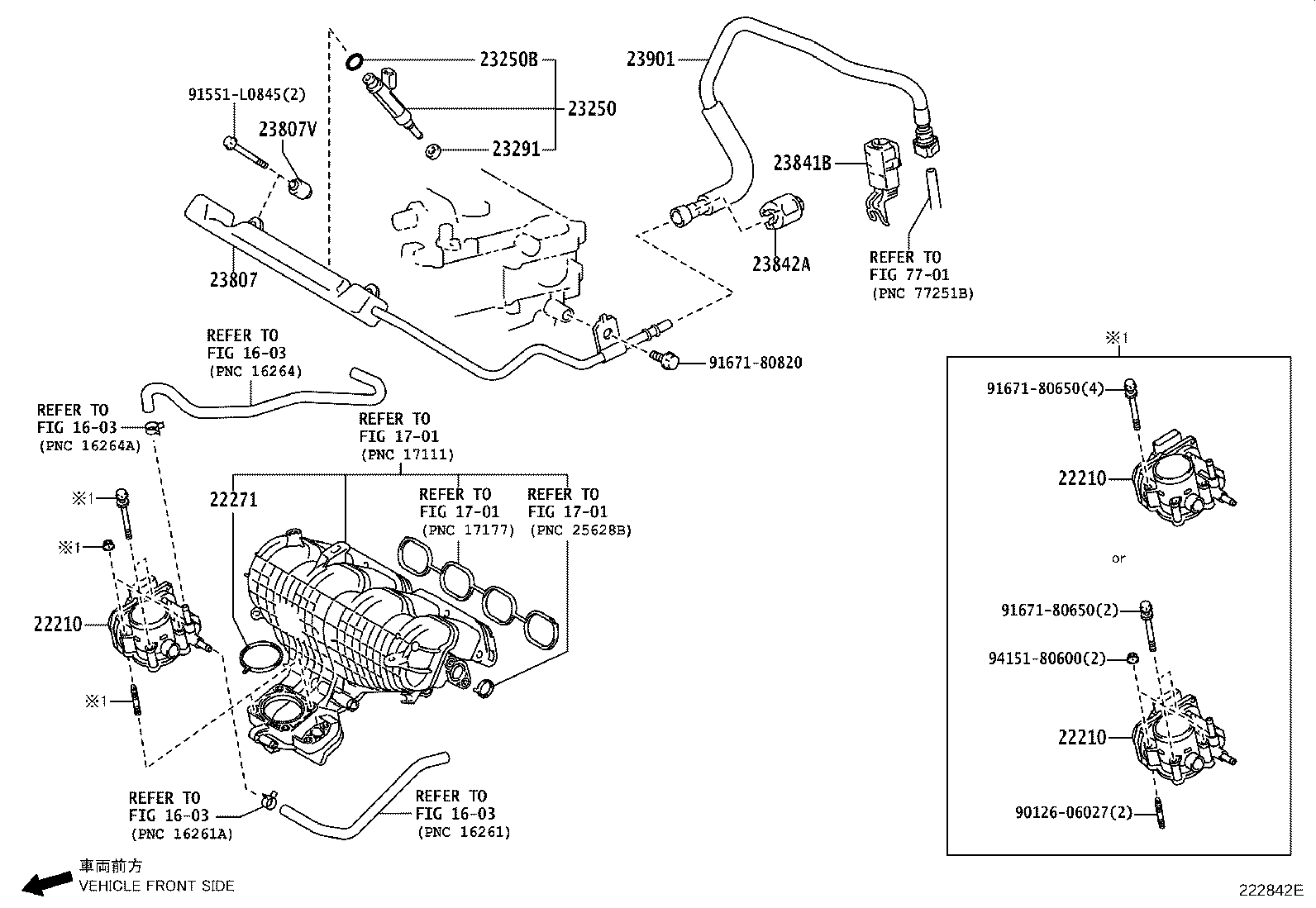

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1701 1701 1701 22210 22210 22210 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7701 9012606027 91551L0845 9167180650 9167180650 9167180820 9415180600
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-37060

2ZRFXE..ZWE186

(J)

 1
22030-0T110

2ZRFXE..ZWE186

(L)

 1
22210 - BODY ASSY, THROTTLE
22030-37060

2ZRFXE..ZWE186

(J)

 1
22030-0T110

2ZRFXE..ZWE186

(L)

 1
22210 - BODY ASSY, THROTTLE
22030-37060

2ZRFXE..ZWE186

(J)

 1
22030-0T110

2ZRFXE..ZWE186

(L)

 1
22271 - GASKET, THROTTLE BODY
22271-37010

2ZRFXE..ZWE186

 1
22271-37010

2ZRFXE..ZWE186

(J)

 2
22271-0T030

2ZRFXE..ZWE186

(L)

 1
22271-37010

2ZRFXE..ZWE186

(J)

 1
23250 - INJECTOR ASSY, FUEL
23209-09130

1ZRFAE,2ZRFXE..ZRE185,ZWE186

(L)

 4
23209-39145

1ZRFAE,2ZRFXE..ZRE185,ZWE186

(J)

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

1ZRFAE,2ZRFXE..ZRE185,ZWE186

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

1ZRFAE,2ZRFXE..ZRE185,ZWE186

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-37061

2ZRFXE..ZWE186

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

1ZRFAE,2ZRFXE..ZRE185,ZWE186

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21040

1ZRFAE,2ZRFXE..ZRE185,ZWE186

 1
23841-37090

1ZRFAE,2ZRFXE..ZRE185,ZWE186..HB

 1
23841-37090

1ZRFAE,2ZRFXE..ZRE185,ZWE186

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-28010

1ZRFAE,2ZRFXE..ZRE185,ZWE186

 1
23901 - TUBE SUB-ASSY, FUEL
23901-37200

2ZRFXE..ZWE186

 1
Common parts
90126-06027
91551-L0845
91671-80650
91671-80820
94151-80600
Linked diagrams
1603
1701
7701
