ZWE186L-DHXGBW (2012)
Toyota Auris/Hybrid (Ukp)
Production
Oct 2012
-
May 2015
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1210- )2ZRFXE

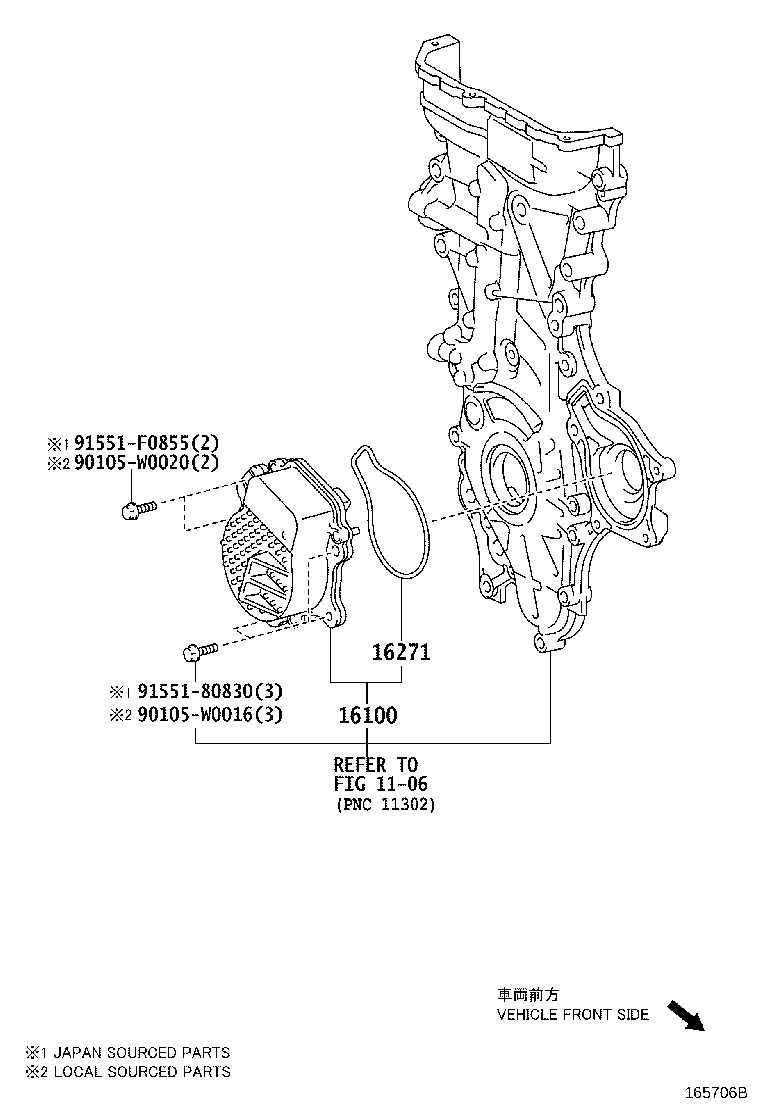

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 161A0-29015 |
2ZRFXE..ZWE186 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-37020 |
2ZRFXE..ZWE186 |
1 | ||
| Common parts | ||||
| 90105-W0016 | ||||
| 90105-W0020 | ||||
| 91551-80830 | ||||
| 91551-F0855 | ||||
| Linked diagrams | ||||
| 1106 | ||||
