ZWE150R-DHXNBW (2010)

Toyota Auris/Hybrid (Ukp)

Production Jun 2010 - Oct 2012
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

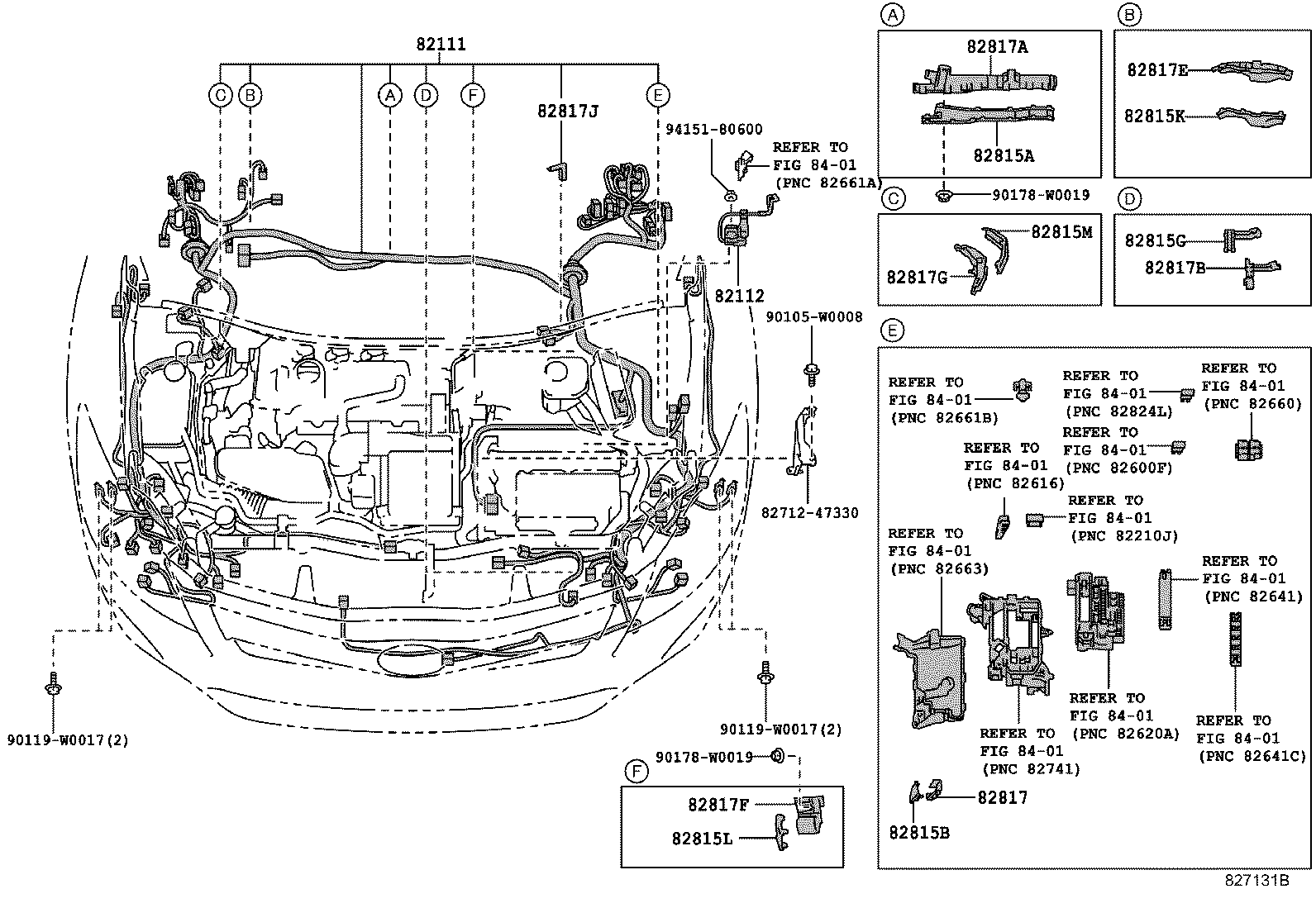

ILLUST NO. 1 OF12(1006- )ZWE150..RHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82112 8271247330 82815A 82815B 82815G 82815K 82815L 82815M 82817 82817A 82817B 82817E 82817F 82817G 82817J 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 90105W0008 90119W0017 90119W0017 90178W0019 90178W0019 9415180600
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82116-02L40

ZWE150..RHD

PART NUMBER LABEL=82116-02L40

 1
82116-02L40

ZWE150..RHD

 1
82116-02L41

ZWE150..RHD

 1
82116-02L41

ZWE150..RHD

PART NUMBER LABEL=82116-02L41

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-47030

ZWE150

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-75010

ZWE150..RHD

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-47390

ZWE150

 1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-47560

ZWE150

 1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-47570

ZWE150..RHD

 1
82815L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-47670

ZWE150..RHD

 1
82815M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-47590

ZWE150..RHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-47620

ZWE150

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-75070

ZWE150..RHD

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-47800

ZWE150

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-47810

ZWE150..RHD

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-47610

ZWE150..RHD

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-47830

ZWE150..RHD

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-12860

ZWE150..RHD

 1
Common parts
82712-47330
90105-W0008
90119-W0017
90178-W0019
94151-80600
Linked diagrams
8401

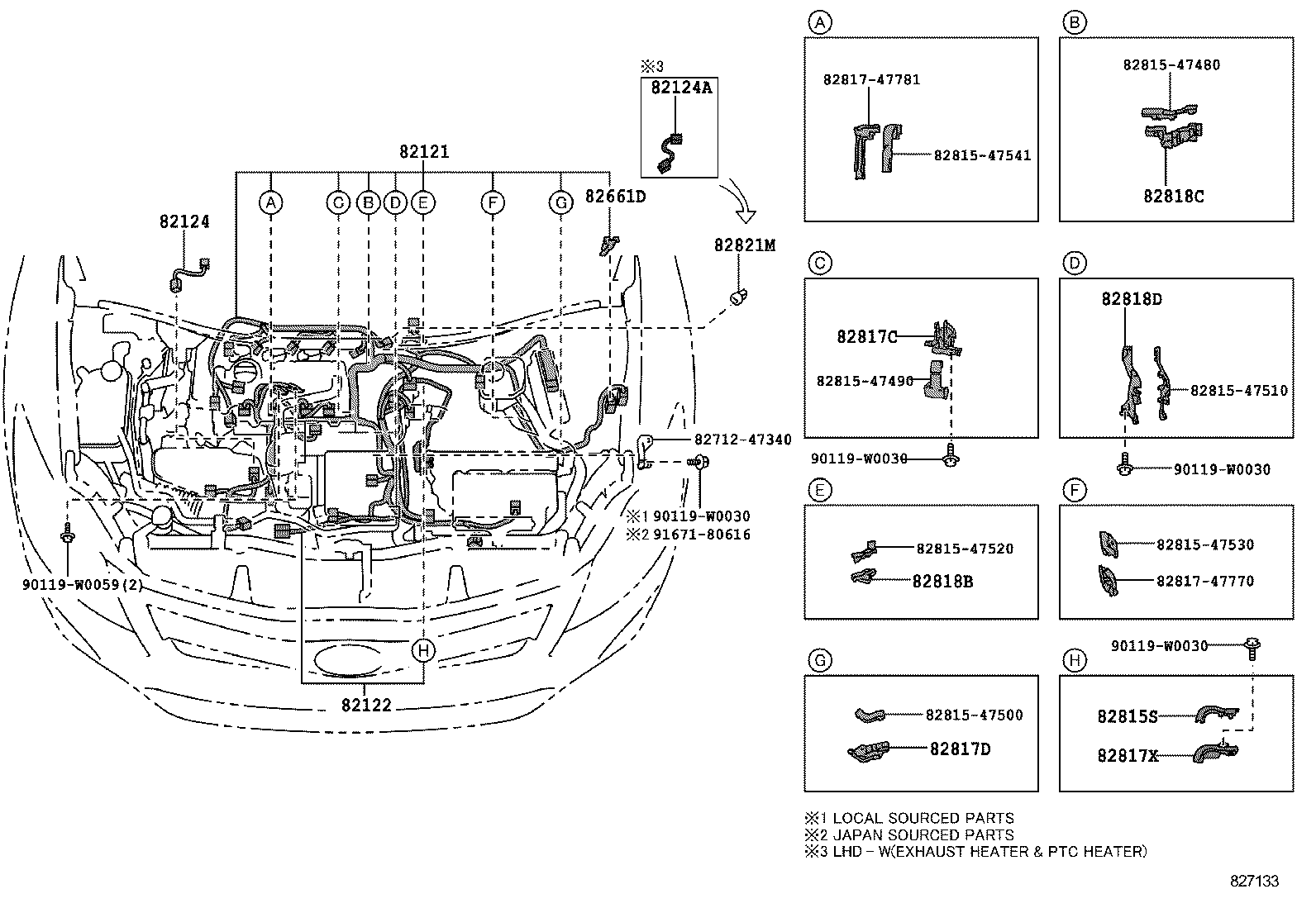

ILLUST NO. 2 OF12(1006- )ZWE150

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82124 82124A 82661D 8271247340 8281547480 8281547490 8281547500 8281547510 8281547520 8281547530 8281547541 82815S 8281747770 8281747781 82817C 82817D 82817X 82818B 82818C 82818D 82821M 90119W0030 90119W0030 90119W0030 90119W0030 90119W0059 9167180616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-47101

ZWE150

 1
82121-12M60

ZWE150

 1
82122 - WIRE, ENGINE, NO.2
82122-47010

ZWE150

 1
82124 - WIRE, ENGINE, NO.4
82124-02090

ZRE15#,ZWE150

(L)

 1
82124-12160

ZRE15#,ZWE150

(J)

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-47040

ZWE150

 1
82815S - COVER, WIRING HARNESS PROTECTOR, NO.15
82815-47470

ZWE150

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-47730

ZWE150

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-47740

ZWE150

 1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-47700

ZWE150

 1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-47760

ZWE150

 1
82818C - PROTECTOR, WIRING HARNESS, NO.4
82817-47720

ZWE150

 1
82818D - PROTECTOR, WIRING HARNESS, NO.5
82817-47750

ZWE150

 1
82821M - COVER, CONNECTOR
82821-20210

ZWE150

 1
Common parts
82712-47340
82815-47480
82815-47490
82815-47500
82815-47510
82815-47520
82815-47530
82815-47541
82817-47770
82817-47781
90119-W0030
90119-W0059
91671-80616

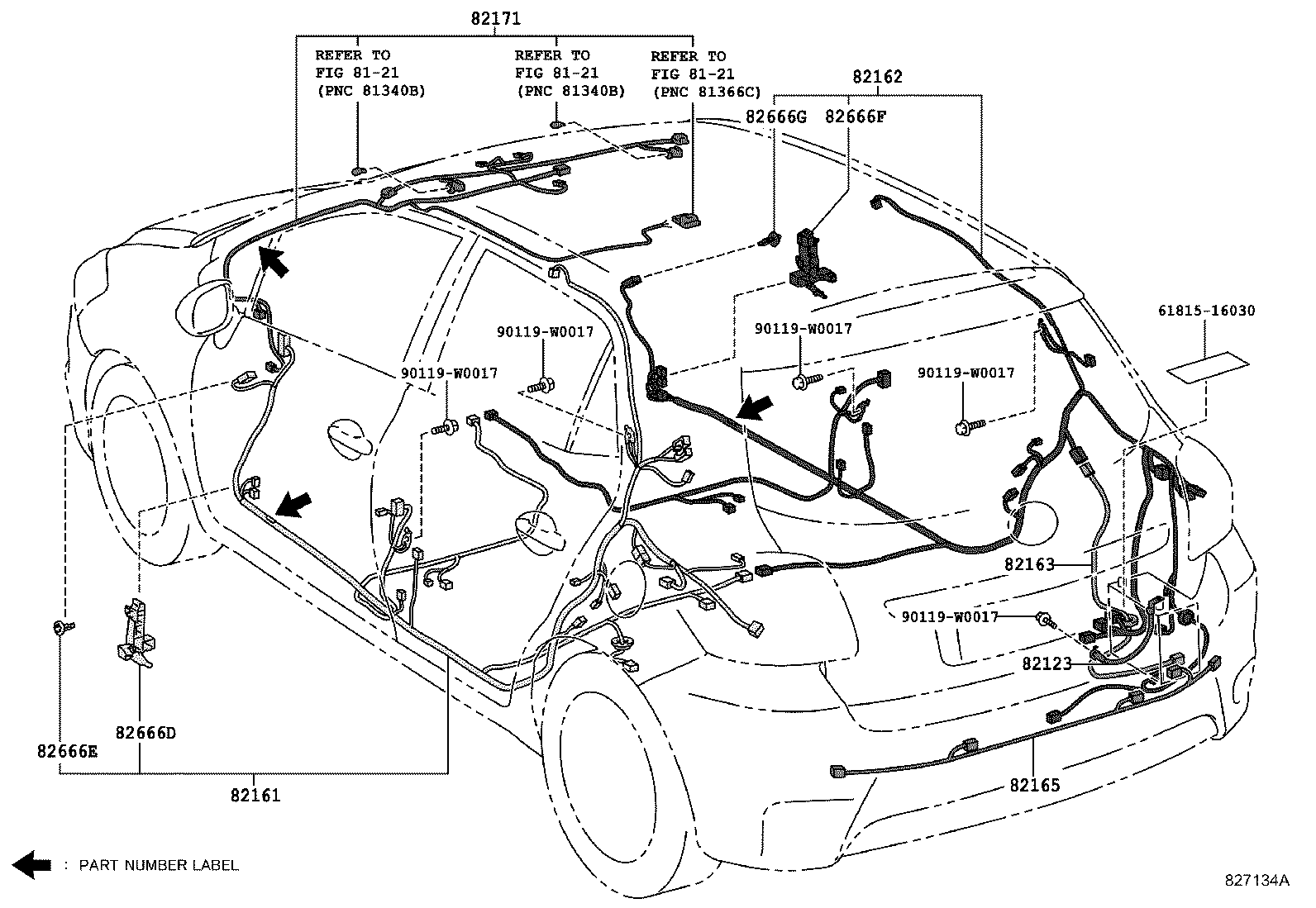

ILLUST NO. 5 OF12(1006- )ZWE150

Click highlighted areas on diagram

FLOOR & ROOF

diagram 6181516030 8121 8121 8121 82123 82161 82162 82163 82165 82171 82666D 82666E 82666F 82666G 90119W0017 90119W0017 90119W0017 90119W0017 90119W0017
Part # Description Qty Price
82123 - WIRE, ENGINE, NO.3
82123-02470

ZWE150

 1
82161 - WIRE, FLOOR
82161-0ZA50

ZWE150..RHD

 1
82161-0ZB50

ZWE150..RHD..SOL

HV LOW GRADE(WITHOUT BACK GUIDE MONITOR)

 1
82161-0ZB51

ZWE150..RHD..SOL

HV LOW GRADE(WITHOUT BACK GUIDE MONITOR)

 1
82161-0ZA51

ZWE150..RHD

 1
82161-0ZB52

ZWE150..RHD..SOL

HV LOW GRADE(WITHOUT BACK GUIDE MONITOR)

 1
82161-0ZA50

ZWE150..RHD

PART NUMBER LABEL=82161-0ZA50

 1
82161-0ZB51

ZWE150..RHD..SOL

PART NUMBER LABEL=82161-0ZB51

 1
82161-0ZB50

ZWE150..RHD..SOL

PART NUMBER LABEL=82161-0ZB50

 1
82161-0ZA51

ZWE150..RHD

PART NUMBER LABEL=82161-0ZA51

 1
82161-0ZB52

ZWE150..RHD..SOL

PART NUMBER LABEL=82161-0ZB52

 1
82162 - WIRE, FLOOR, NO.2
82162-02N30

ZWE150..RHD..SOL

HV LOW GRADE(WITHOUT BACK GUIDE MONITOR)

 1
82162-02L30

ZWE150..RHD

 1
82162-02L31

ZWE150..RHD

 1
82162-02N31

ZWE150..RHD..SOL

HV LOW GRADE(WITHOUT BACK GUIDE MONITOR)

 1
82162-02N30

ZWE150..RHD..SOL

PART NUMBER LABEL=82162-02N30

 1
82162-02L31

ZWE150..RHD

PART NUMBER LABEL=82162-02L31

 1
82162-02L30

ZWE150..RHD

PART NUMBER LABEL=82162-02L30

 1
82162-02N31

ZWE150..RHD..SOL

PART NUMBER LABEL=82162-02N31

 1
82171 - WIRE, ROOF, NO.1
82171-02R40

ZWE150..RHD

BACK MONITOR-WITH(AVN)

 1
82171-02R50

ZWE150..RHD

 1
82171-02R70

ZWE150..RHD

MOON ROOF-WITH

 1
82171-02S80

ZWE150..RHD..SOL

HV LOW GRADE(WITHOUT BACK GUIDE MONITOR)

 1
82171-02R60

ZWE150..RHD

MOON ROOF-WITH&BACK MONITOR-WITH(AVN)

 1
82171-02R40

ZWE150..RHD

 1
82171-02S80

ZWE150..RHD..SOL

HV LOW GRADE(WITHOUT BACK GUIDE MONITOR)&BACK MONITOR-WITHOUT

 1
82171-02R60

ZWE150..RHD

MOON ROOF-WITH

 1
82171-02S80

ZWE150..RHD..SOL

PART NUMBER LABEL=82171-02S80

 1
82171-02R50

ZWE150..RHD

PART NUMBER LABEL=82171-02R50

 1
82171-02R40

ZWE150..RHD

PART NUMBER LABEL=82171-02R40

 1
82171-02R70

ZWE150..RHD

PART NUMBER LABEL=82171-02R70

 1
82171-02R60

ZWE150..RHD

PART NUMBER LABEL=82171-02R60

 1
82171-02S80

ZWE150..RHD..SOL

PART NUMBER LABEL=82171-02S80

 1
82171-02R60

ZWE150..RHD

PART NUMBER LABEL=82171-02R60

 1
82171-02R40

ZWE150..RHD

PART NUMBER LABEL=82171-02R40

 1
Common parts
61815-16030
90119-W0017
Linked diagrams
8121

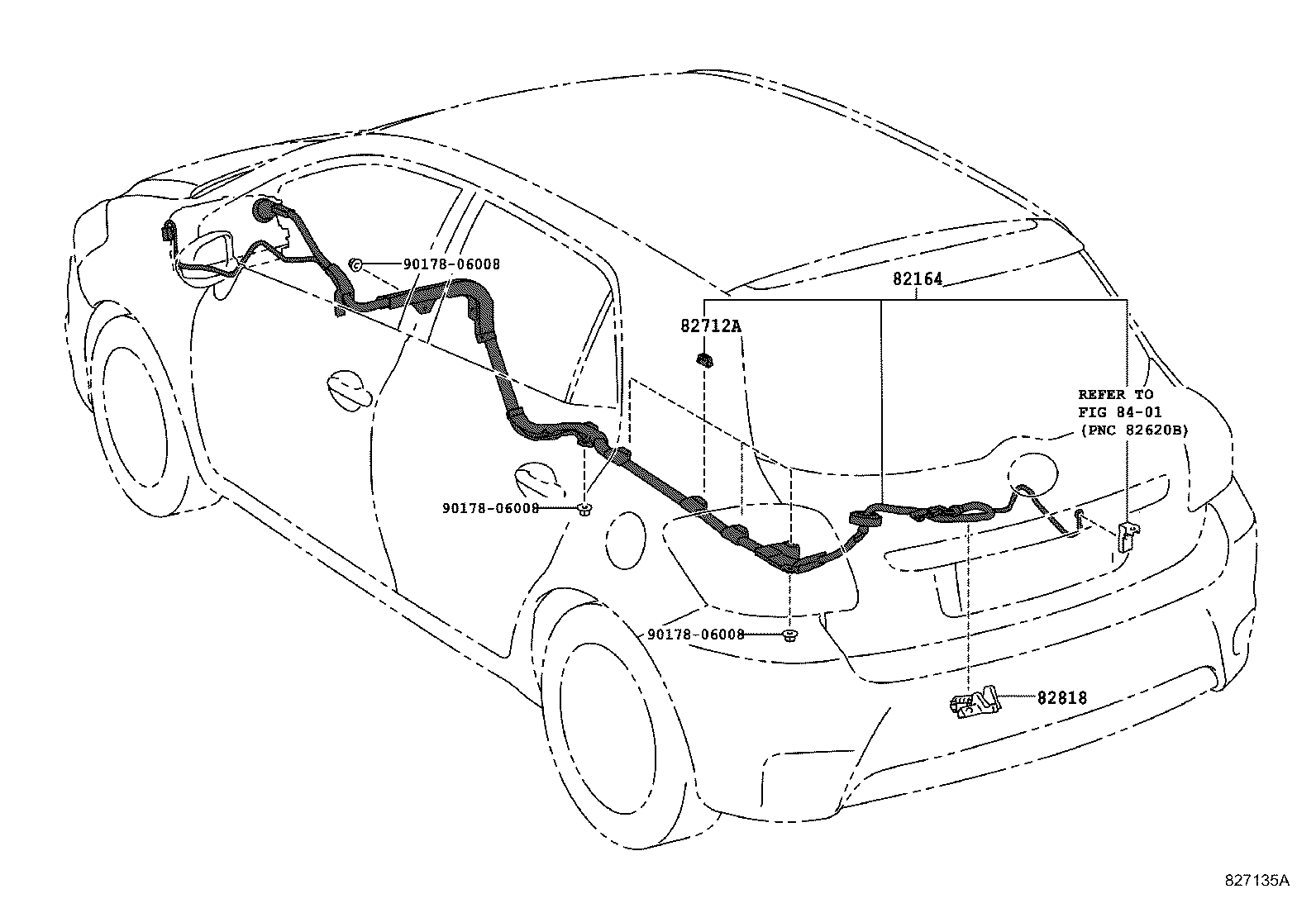

ILLUST NO. 6 OF12(1006- )ZWE150

Click highlighted areas on diagram

HIGH-TENSION CABLE

diagram 82164 82712A 82818 8401 9017806008 9017806008 9017806008
Part # Description Qty Price
82164 - WIRE, FRAME
82164-12150

ZWE150..RHD

 1
82712A - SUPPORT, WIRING HARNESS
82712-47270

ZWE150

 4
82818 - PROTECTOR, WIRING HARNESS, NO.2
82817-12F00

ZWE150

 1
Common parts
90178-06008
Linked diagrams
8401
