ZWE150R-DHXNBW (2010)
Toyota Auris/Hybrid (Ukp)
Production
Jun 2010
-
Oct 2012
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(1006- )ZWE150
Click highlighted areas on diagram

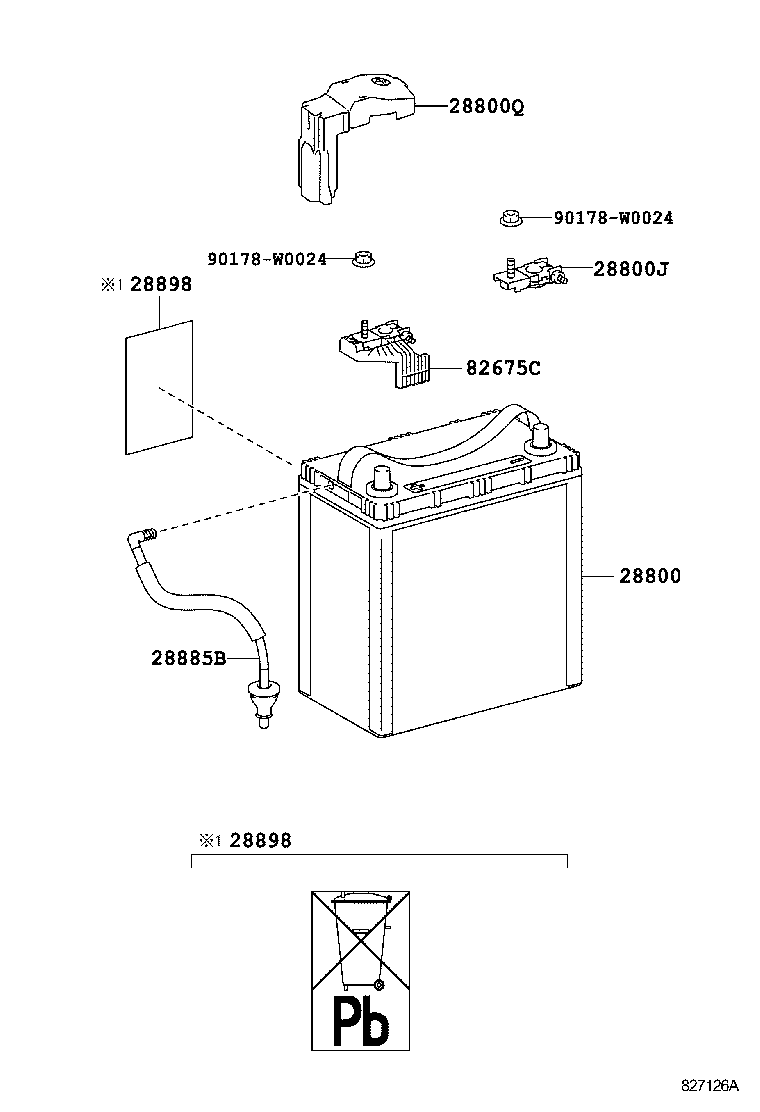

12V BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-21170 |
2ZRFXE..ZWE150 S46B24R |
1 | ||
| 28800-21171 |
2ZRFXE..ZWE150 S46B24R |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06071 |
2ZRFXE..ZWE150 |
1 | ||
| 28800Q - COVER, CONNECTOR(FOR BATTERY) | ||||
| 82821-47110 |
2ZRFXE..ZWE150 |
1 | ||
| 28885B - HOSE, BATTERY | ||||
| 28885-37010 |
2ZRFXE..ZWE150 |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-16020 |
2ZRFXE..ZWE150 |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-16020 |
2ZRFXE..ZWE150 |
1 | ||
| 82675C - TERMINAL, JUNCTION | ||||
| 82675-47160 |
ZWE150 |
1 | ||
| Common parts | ||||
| 90178-W0024 | ||||
ILLUST NO. 2 OF 4(1006- )ZWE150
Click highlighted areas on diagram

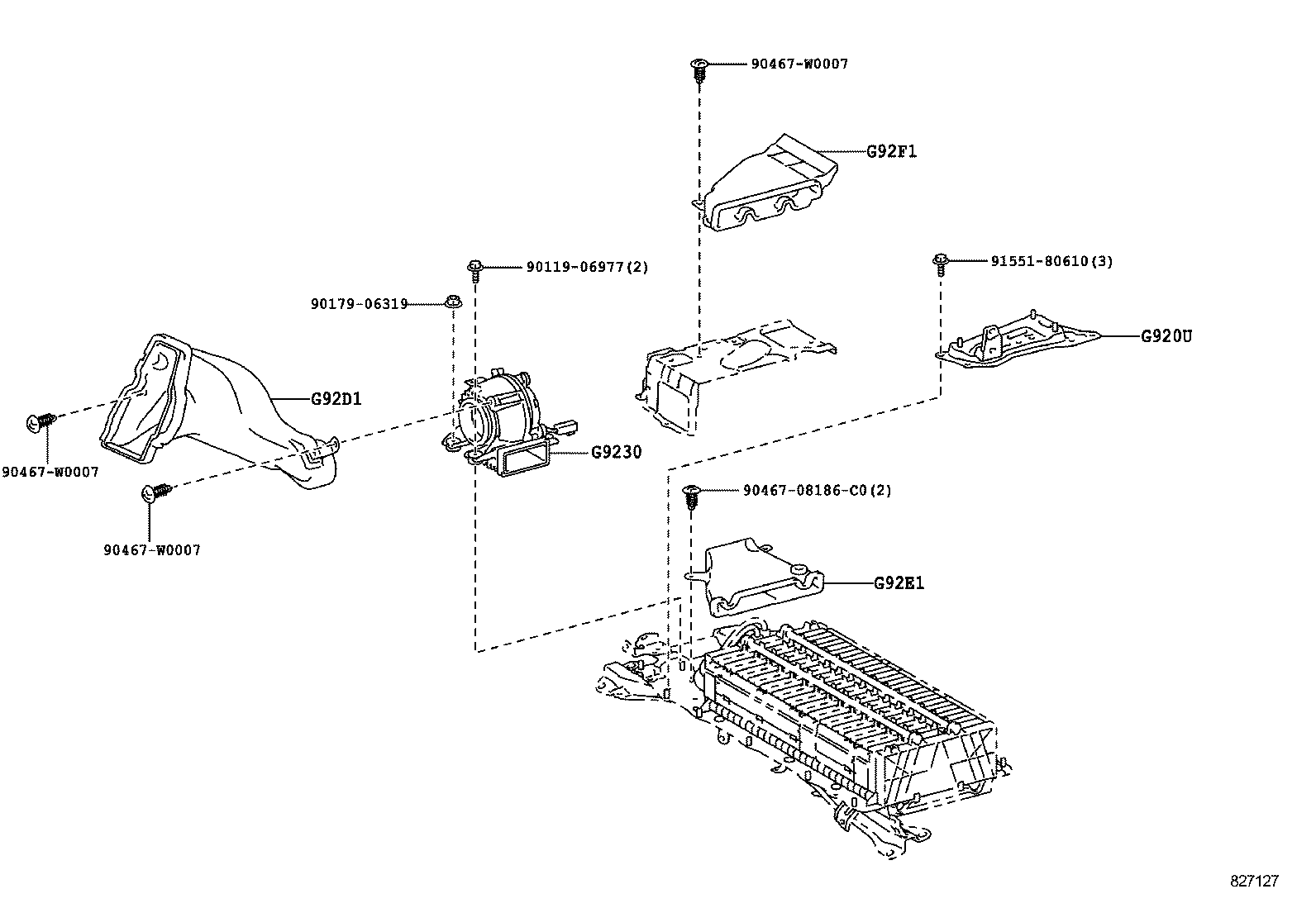

HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G920U - BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.4 | ||||
| G920U-47010 |
ZWE150 |
1 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-47070 |
ZWE150 |
1 | ||
| G9230-76010 |
ZWE150 |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92D1-12010 |
ZWE150 |
1 | ||
| G92E1 - DUCT, HV BATTERY COVER INTAKE, NO.1 | ||||
| G92E1-47010 |
ZWE150 |
1 | ||
| G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1 | ||||
| G92F1-47010 |
ZWE150 |
1 | ||
| Common parts | ||||
| 90119-06977 | ||||
| 90179-06319 | ||||
| 90467-08186C0 | ||||
| 90467-W0007 | ||||
| 91551-80610 | ||||
ILLUST NO. 3 OF 4(1006- )ZWE150
Click highlighted areas on diagram

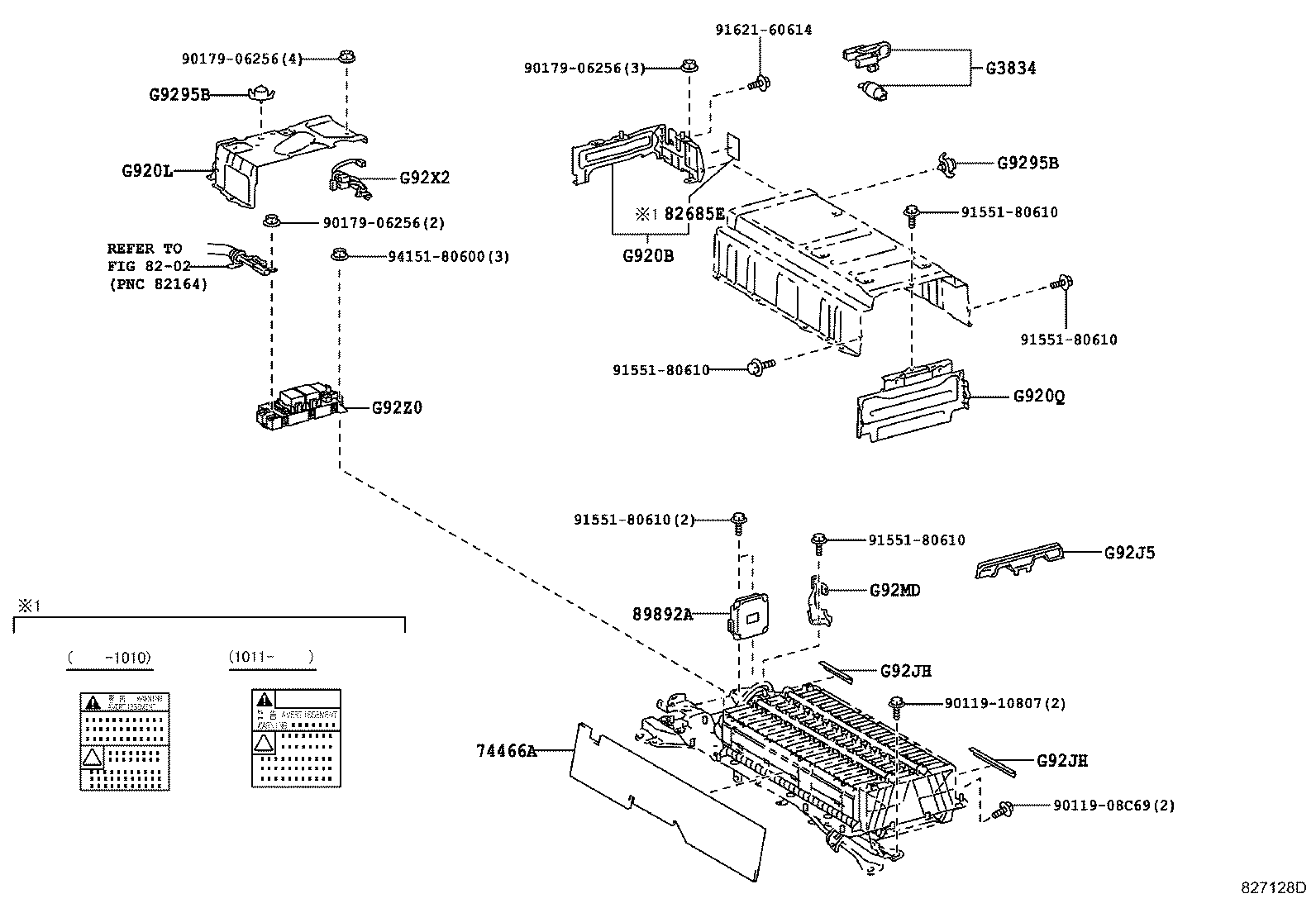

HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74466A - PANEL, BATTERY CARRIER, NO.6 | ||||
| G92H9-12010 |
ZWE150 |
1 | ||
| 82685E - PLATE, SERVICE PLUG CAUTION | ||||
| 82685-76010 |
ZWE150 |
1 | ||
| 82685-47100 |
ZWE150 |
1 | ||
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-47020 |
ZWE150 |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-48010 |
ZWE150 |
1 | ||
| G920B - BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.1 | ||||
| G920B-47020 |
ZWE150 |
1 | ||
| G920L - COVER SUB-ASSY, HYBRID BATTERY, UPPER NO.1 | ||||
| G920L-47010 |
ZWE150 |
1 | ||
| G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1 | ||||
| G920Q-47010 |
ZWE150 |
1 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-30020 |
ZWE150 |
1 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-30020 |
ZWE150 |
1 | ||
| G92J5 - PACKING, HYBRID BATTERY, NO.1 | ||||
| G92J5-47020 |
ZWE150 |
1 | ||
| G92JH - SHEET, HYBRID BATTERY COVER | ||||
| G92J3-12010 |
ZWE150 RH |
1 | ||
| G92J2-12010 |
ZWE150 LH |
1 | ||
| G92JH - SHEET, HYBRID BATTERY COVER | ||||
| G92J3-12010 |
ZWE150 RH |
1 | ||
| G92J2-12010 |
ZWE150 LH |
1 | ||
| G92MD - BRACKET, HV BATTERY UPPER CARRIER, NO.7 | ||||
| G92MD-47010 |
ZWE150 |
1 | ||
| G92X2 - WIRE, HV BATTERY PACK, NO.2 | ||||
| G92X2-47010 |
ZWE150 |
1 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-47010 |
ZWE150 |
1 | ||
| G92Z0-47011 |
ZWE150 |
1 | ||
| Common parts | ||||
| 90119-08C69 | ||||
| 90119-10807 | ||||
| 90179-06256 | ||||
| 91551-80610 | ||||
| 91621-60614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF 4(1006- )ZWE150
Click highlighted areas on diagram

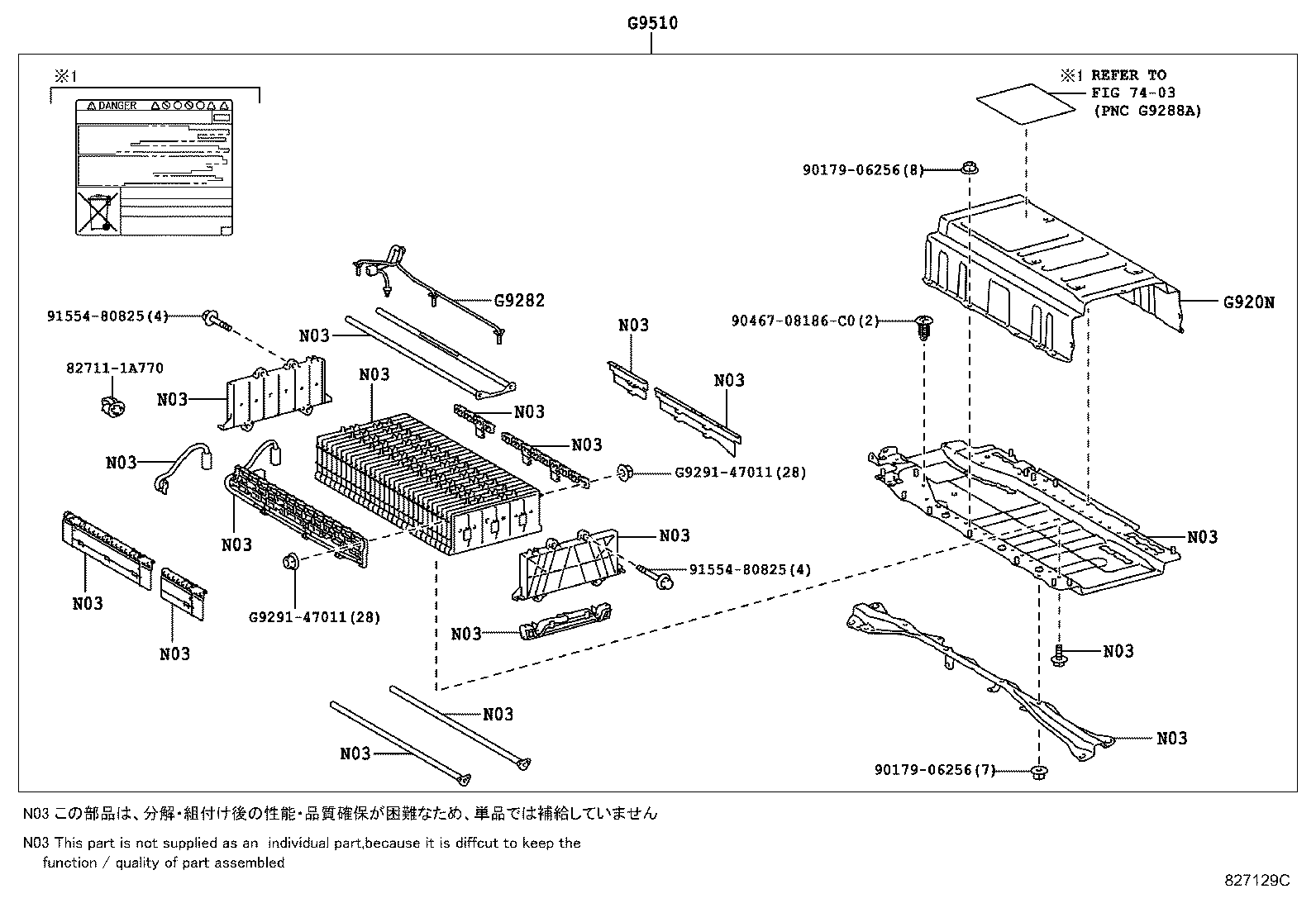

HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G920N - COVER SUB-ASSY, HV BATTERY, UPPER NO.2 | ||||
| G920N-47010 |
ZWE150 |
1 | ||
| G9282 - THERMISTOR, HYBRID BATTERY | ||||
| G9282-47060 |
ZWE150 |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-12010 |
ZWE150 |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 90179-06256 | ||||
| 90467-08186C0 | ||||
| 91554-80825 | ||||
| G9291-47011 | ||||
| Linked diagrams | ||||
| 7403 | ||||
