ZWE150R-DHXNBW (2010)

Toyota Auris/Hybrid (Ukp)

Production Jun 2010 - Oct 2012
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1006- )ZWE150

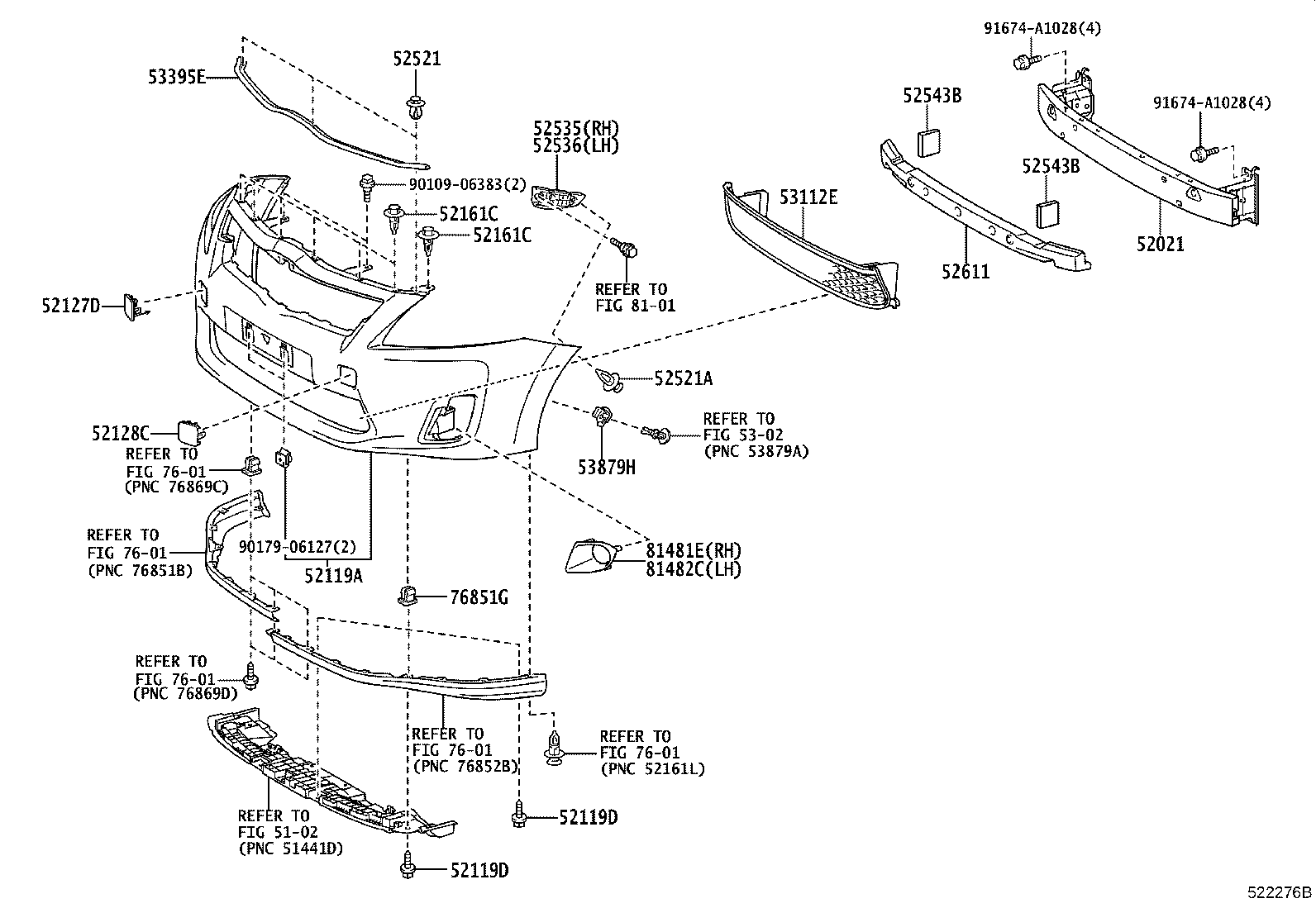

Click highlighted areas on diagram

diagram 5102 52021 52119A 52119D 52119D 52127D 52128C 52161C 52161C 52521 52521A 52535 52536 52543B 52543B 52611 5302 53112E 53395E 53879H 7601 7601 7601 7601 7601 76851G 8101 81481E 81482C 9010906383 9017906127 91674A1028 91674A1028
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-0Z907

ZWE150

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-02915

ZWE150

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-02915

ZWE150

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-02041

ADE15#,NDE150,NRE150,ZRE15#,ZWE150

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-02031

ADE15#,NDE150,NRE150,ZRE15#,ZWE150

 1
52543B - SEAL, FRONT BUMPER
52543-02010

ZWE150

 2
52543B - SEAL, FRONT BUMPER
52543-02010

ZWE150

 2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02320

ZWE150

NO PAINT REQ.

 1
81481E - COVER, FOG LAMP, RH
81481-02250

ZWE150

 1
81482C - COVER, FOG LAMP, LH
81482-02240

ZWE150

 1
Common parts
90109-06383
90179-06127
91674-A1028
Linked diagrams
5102
5302
7601
8101
