ZWE150R-DHXGBW (2010)

Toyota Auris/Hybrid (Ukp)

Production Jun 2010 - Oct 2012
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1006- )2ZRFXE

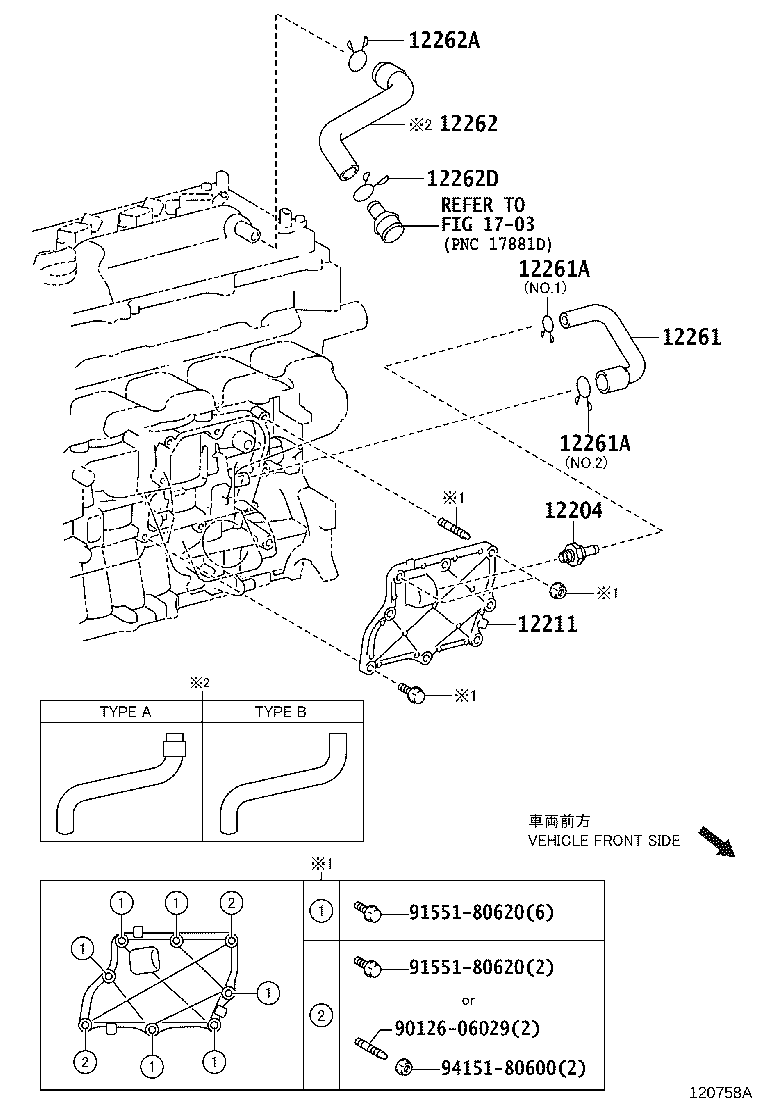

Click highlighted areas on diagram

diagram 12204 12211 12261 12261A 12261A 12262 12262A 12262D 1703 9012606029 9155180620 9155180620 9415180600
Part # Description Qty Price
12211 - CASE, VENTILATION, NO.1
12211-37010

2ZRFXE..ZWE150

 1
12261 - HOSE, VENTILATION
12261-37060

2ZRFXE..ZWE150

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

2ZRFXE..ZWE150

*119,NO.2

 1
90466-22005

2ZRFXE..ZWE150

*119,NO.2

 1
90467-23002

2ZRFXE..ZWE150

*149,NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

2ZRFXE..ZWE150

*119,NO.2

 1
90466-22005

2ZRFXE..ZWE150

*119,NO.2

 1
90467-23002

2ZRFXE..ZWE150

*149,NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12262-37041

2ZRFXE..ZWE150

 1
12262D - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2ZRFXE..ZWE150

 1
Common parts
90126-06029
91551-80620
94151-80600
Linked diagrams
1703
