ZWE150L-DHXNBW (2010)
Toyota Auris/Hybrid (Ukp)
Production
Jun 2010
-
Oct 2012
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1006- )ZWE150..LHD

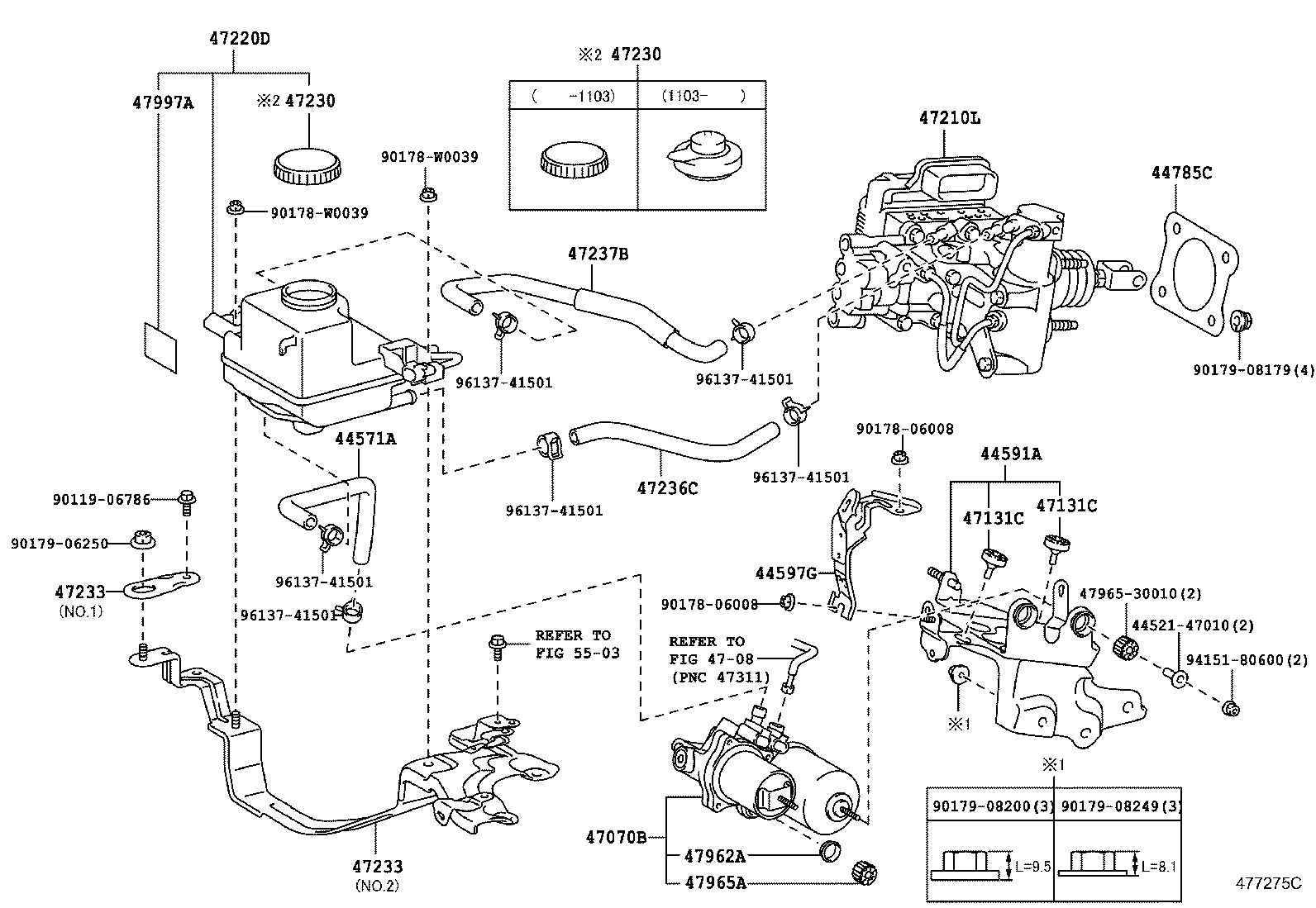

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-12020 |
ZWE150..LHD |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-47050 |
ZWE150 |
1 | ||
| 44597G - BRACKET, BRAKE ACTUATOR, NO.7 | ||||
| 44595-47010 |
ZWE150 |
1 | ||
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-05020 |
ZWE150 |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-12020 |
ZWE150 |
1 | ||
| 47131C - CUSHION | ||||
| 47131-47080 |
ZWE150 |
2 | ||
| 47131-47070 |
ZWE150 |
2 | ||
| 47131-47070 |
ZWE150 |
2 | ||
| 47131C - CUSHION | ||||
| 47131-47080 |
ZWE150 |
2 | ||
| 47131-47070 |
ZWE150 |
2 | ||
| 47131-47070 |
ZWE150 |
2 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-12040 |
ZWE150..LHD..SOL |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-47060 |
ZWE150..LHD |
1 | ||
| 47220-47080 |
ZWE150..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
ZWE150..LHD |
1 | ||
| 47230-58010 |
ZWE150..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
ZWE150..LHD |
1 | ||
| 47230-58010 |
ZWE150..LHD |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-12070 |
ZWE150..LHD NO.2 |
1 | ||
| 47233-02010 |
ZWE150 NO.1 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-12070 |
ZWE150..LHD NO.2 |
1 | ||
| 47233-02010 |
ZWE150 NO.1 |
1 | ||
| 47236C - HOSE, RESERVOIR TUBE | ||||
| 47234-12100 |
ZWE150..LHD |
1 | ||
| 47237B - HOSE, RESERVIOR TUBE | ||||
| 47235-12020 |
ZWE150..LHD |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
ZWE150 |
1 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
ZWE150 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
ZWE150..LHD |
1 | ||
| 47997-47030 |
ZWE150..LHD |
1 | ||
| Common parts | ||||
| 44521-47010 | ||||
| 47965-30010 | ||||
| 90119-06786 | ||||
| 90178-06008 | ||||
| 90178-W0039 | ||||
| 90179-06250 | ||||
| 90179-08179 | ||||
| 90179-08200 | ||||
| 90179-08249 | ||||
| 94151-80600 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 4708 | ||||
| 5503 | ||||
