ZWE150L-DHXGBW (2010)

Toyota Auris/Hybrid (Ukp)

Production Jun 2010 - Oct 2012
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1006- )ZWE150

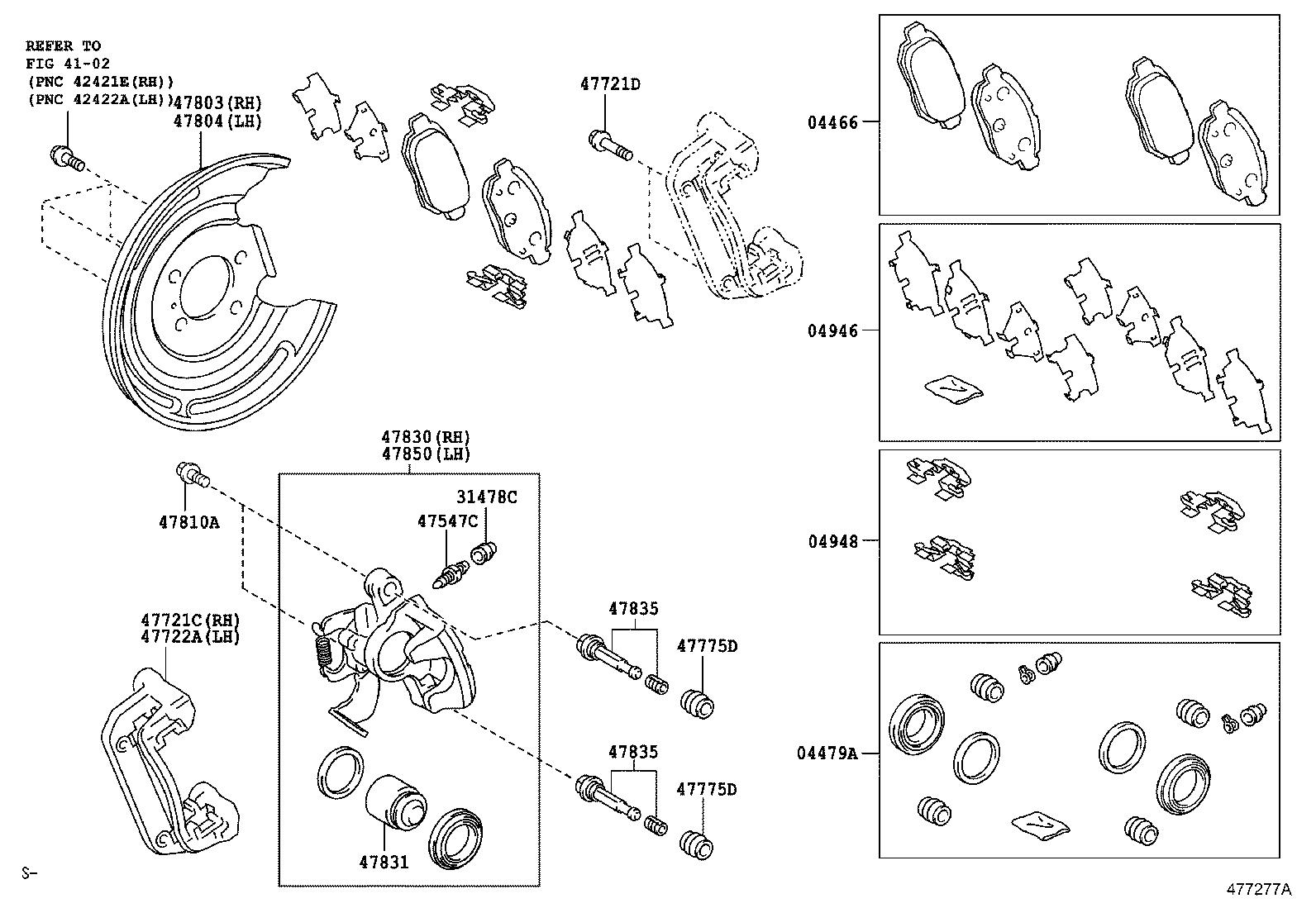

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4102 47547C 47721C 47721D 47722A 47775D 47775D 47803 47804 47810A 47830 47831 47835 47835 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-12130

ZWE150

MARK AK NS254

 1
04466-12150

ZWE150

MARK AK NS254

 1
04466-12140

ZWE150

MARK AK NS254

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-12230

ZWE150

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-12110

ZWE150

 1
04946-12040

ZWE150

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12060

ZWE150

 1
04948-52040

ZWE150

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-52010

ZWE150

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47847-52050

ZWE150

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-12151

ZWE150

 1
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47821-12151

ZWE150

 1
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

ZWE150

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

ZWE150

 4
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47881-12071

ZWE150

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47882-12071

ZWE150

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90015-AA102

ZWE150

 4
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-12151

ZWE150

 1
47831 - PISTON, REAR DISC BRAKE
47831-52050

ZWE150

 2
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-12150

ZWE150

 4
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-12150

ZWE150

 4
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-12151

ZWE150

 1
Linked diagrams
4102
