ZRE152L-DGFDPW (2009)

Toyota Auris/Hybrid (Ukp)

Production Feb 2009 - Jan 2010
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )ZRE15# ; (0903- )E ; (0903- )ADE15#,ZWE150

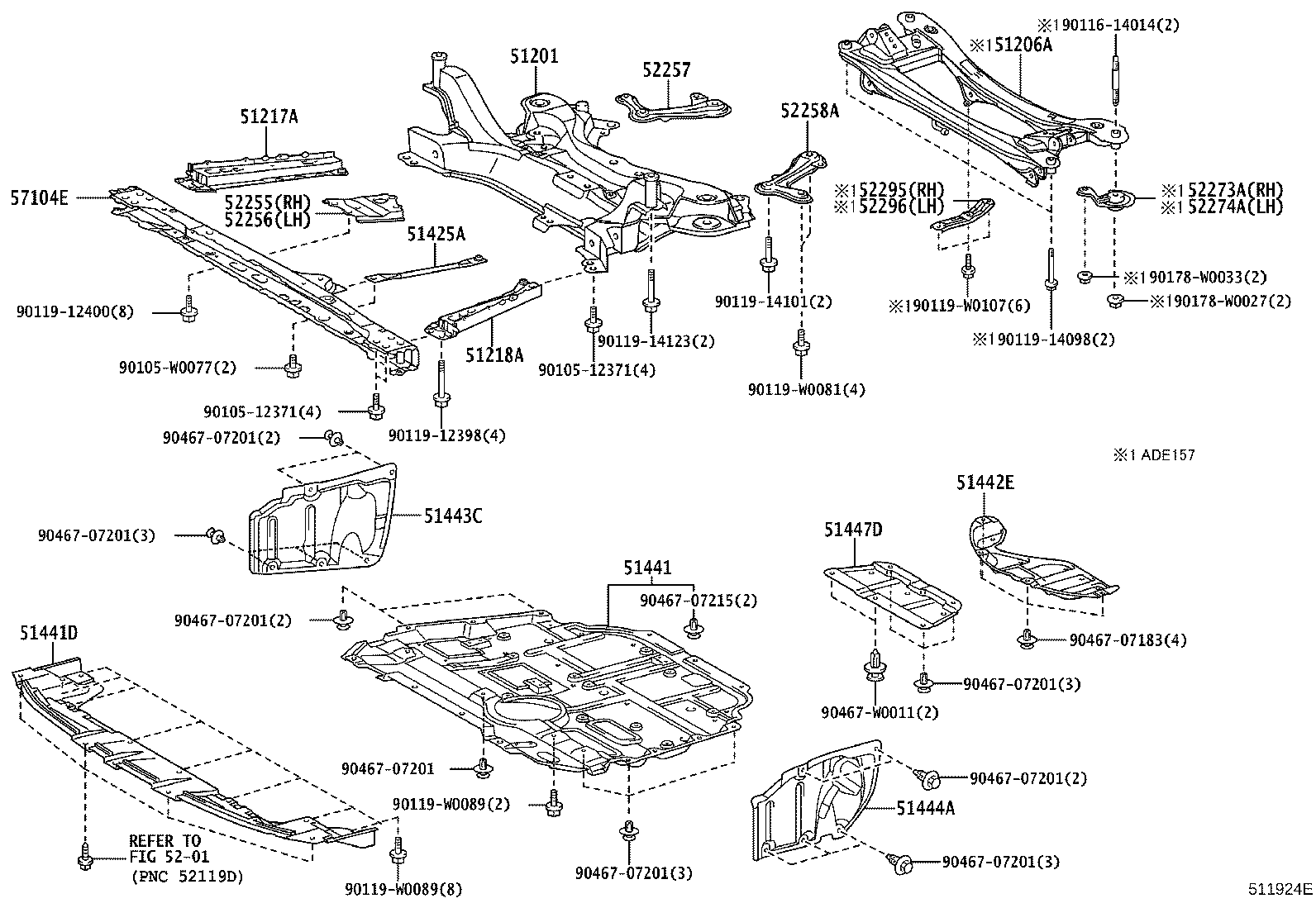

Click highlighted areas on diagram

diagram 51201 51206A 51217A 51218A 51425A 51441 51441D 51442E 51443C 51444A 51447D 5201 52255 52256 52257 52258A 52273A 52274A 52295 52296 57104E 9010512371 9010512371 90105W0077 9011614014 9011912398 9011912400 9011914098 9011914101 9011914123 90119W0081 90119W0089 90119W0089 90119W0107 90178W0027 90178W0033 9046707183 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707215 90467W0011
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51410-02170

ZRE15#..3D;ZRE151..HTWC

 1
51442E - COVER, ENGINE UNDER, NO.2
51442-02230

ZRE151..HTWC;ADE150..RHD..DCRL;ADE157,ZRE15#..3D;ADE150..LHD..3D..DCRL

 1
Common parts
90105-12371
90105-W0077
90116-14014
90119-12398
90119-12400
90119-14098
90119-14101
90119-14123
90119-W0081
90119-W0089
90119-W0107
90178-W0027
90178-W0033
90467-07183
90467-07201
90467-07215
90467-W0011
Linked diagrams
5201
