ZRE152L-DGFDPW (2009)

Toyota Auris/Hybrid (Ukp)

Production Feb 2009 - Jan 2010
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )LHD..HTWVM

Click highlighted areas on diagram

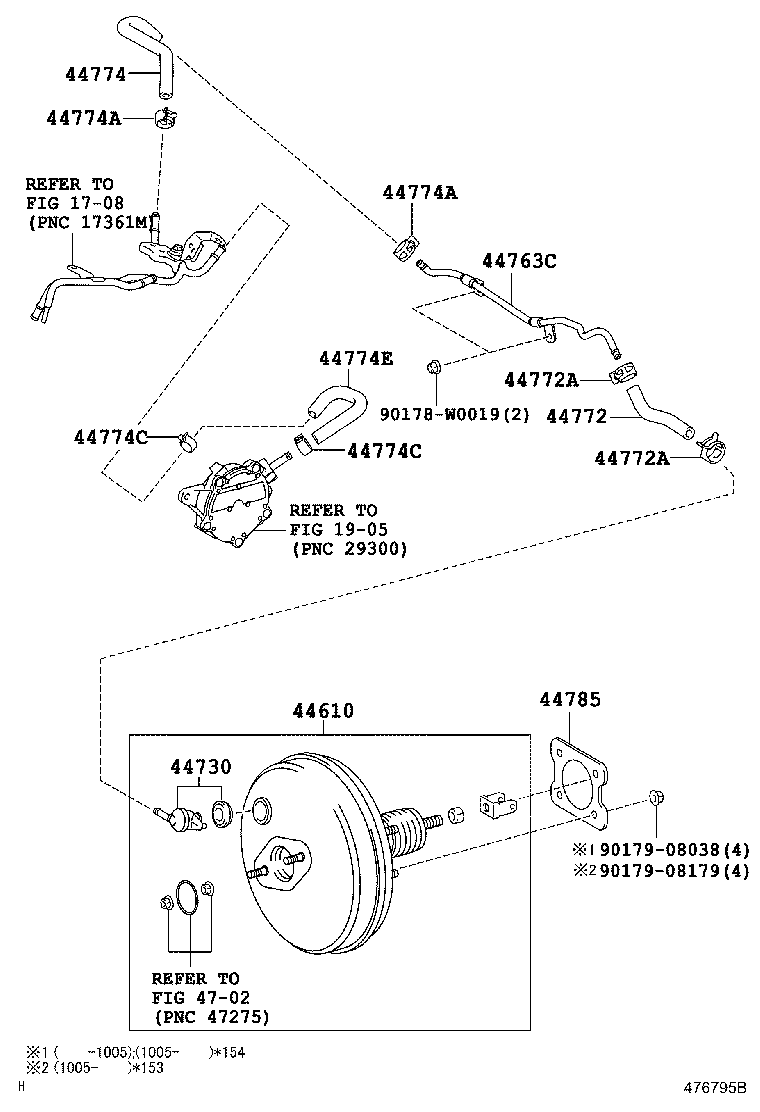

diagram 1708 1905 44610 44730 44763C 44772 44772A 44772A 44774 44774A 44774A 44774C 44774C 44774E 44785 4702 90178W0019 9017908038 9017908179
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09400

NDE150..LHD..3D;NDE150..5D..6FS..TERRA;ADE150,ZRE15#..LHD..3D..(DCRL,HTWVM)

 1
44610-09410

NDE150..LHD..3D..6F..TERRA;ADE150,ZRE15#..3D..6F..TERRA..(DCRL,HTWVM)

VSC-WITH

 1
44610-09410

NDE150..LHD..3D;NDE150..5D..6FS..TERRA;ADE150,ZRE15#..LHD..3D..(DCRL,HTWVM)

VSC-WITH(WITH/CUT OFF SWITCH)

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-12400

NDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12580

ADE15#,ZRE151..LHD;NDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL)

 1
44772-12580

ZRE151..HTWC;NDE150..LHD..3D;NDE150..5D..6FS..TERRA;ADE15#,ZRE15#..LHD..3D..(DCRL,HTWVM)

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90466-W0008

ZRE151..HTWC;ADE150..RHD..DCRL;ADE157,ZRE15#..3D;ADE150..LHD..3D..DCRL

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90466-W0008

ZRE151..HTWC;ADE150..RHD..DCRL;ADE157,ZRE15#..3D;ADE150..LHD..3D..DCRL

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12530

ZRE151..HTWC;ZRE15#..LHD..3D

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-W0008

ZRE15#..3D;ZRE151..HTWC;ADE15#..LHD..3D..DCRL

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-W0008

ZRE15#..3D;ZRE151..HTWC;ADE15#..LHD..3D..DCRL

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE15#..3D

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE15#..3D

 2
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-28320

ZRE15#..3D

 1
Common parts
90178-W0019
90179-08038
90179-08179
Linked diagrams
1708
1905
4702
