ZRE152L-DGFDPW (2009)

Toyota Auris/Hybrid (Ukp)

Production Feb 2009 - Jan 2010
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

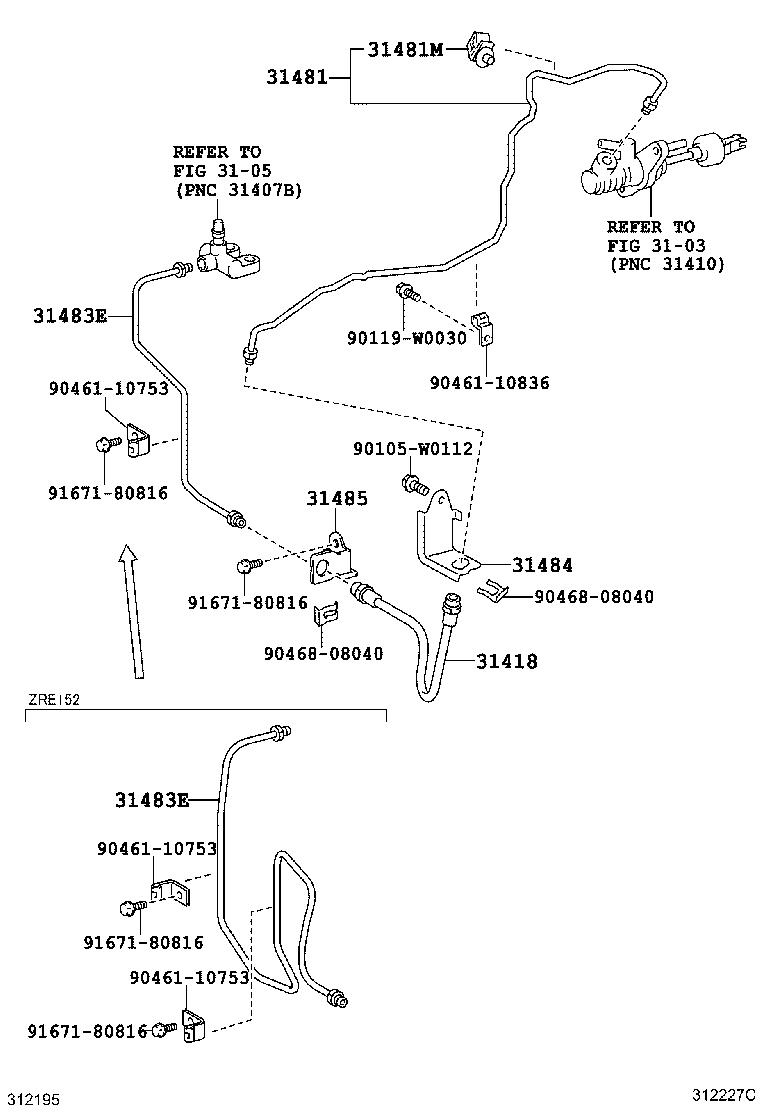

ILLUST NO. 2 OF 2(0902- )ZRE15#..LHD..6F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31481M 31483E 31483E 31484 31485 90105W0112 90119W0030 9046110753 9046110753 9046110753 9046110836 9046808040 9046808040 9167180816 9167180816 9167180816 9167180816
Part # Description Qty Price
31483E - TUBE, BLEEDER CLUTCH RELEASE
31483-12150

ZRE152

(J)

 1
31483-02240

ZRE152

(L)

 1
31483E - TUBE, BLEEDER CLUTCH RELEASE
31483-12150

ZRE152

(J)

 1
31483-02240

ZRE152

(L)

 1
Common parts
90105-W0112
90119-W0030
90461-10753
90461-10836
90468-08040
91671-80816
Linked diagrams
3103
3105
