ZRE152L-DGFDPW (2009)

Toyota Auris/Hybrid (Ukp)

Production Feb 2009 - Jan 2010
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )1ZRFAE,2ZRFAE

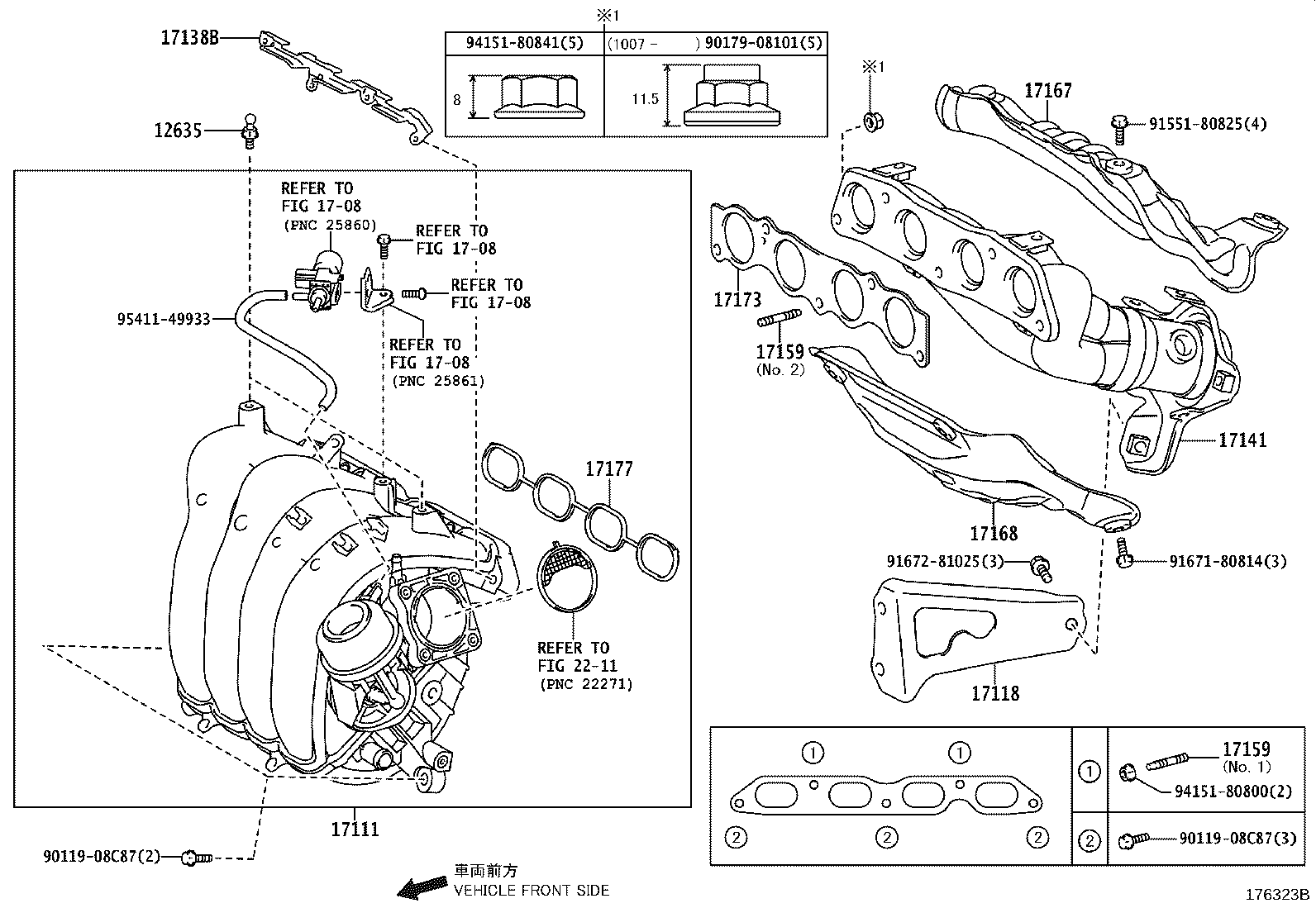

Click highlighted areas on diagram

diagram 12635 1708 1708 1708 1708 17111 17118 17138B 17141 17159 17159 17167 17168 17173 17177 2211 9011908C87 9011908C87 9017908101 9155180825 9167180814 9167281025 9415180800 9415180841 9541149933
Part # Description Qty Price
12635 - JOINT, ENGINE COVER
90109-06385

1ZR#,2ZRFAE..ZRE15#

 2
17111 - MANIFOLD, INTAKE
17120-0T040

2ZRFAE..ZRE152

(L)

 1
17120-37011

2ZRFAE..ZRE152

(J)

 1
17118 - STAY, MANIFOLD
17118-0T020

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

(L)

 1
17118-37010

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

(J)

 1
17138B - STAY, INTAKE MANIFOLD
17138-37010

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

 1
17141 - MANIFOLD, EXHAUST
17141-0T050

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

(L)

 1
17141-37051

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

(J)

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

NO.1

 2
90126-08052

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

NO.2

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

NO.1

 2
90126-08052

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

NO.2

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37011

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

(J)

 1
17167-0T020

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

(L)

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37100

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

(J)

 1
17168-0T030

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

(L)

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

(J)

 1
17173-0T020

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

(L)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030

2ZRFAE..ZRE152

(J)

 2
17177-0T030

1ZRFAE,2ZRFAE..ZRE15#

(L)

 1
Common parts
90119-08C87
90179-08101
91551-80825
91671-80814
91672-81025
94151-80800
94151-80841
95411-49933
Linked diagrams
1708
2211
