ZRE152L-DGFDPW (2009)

Toyota Auris/Hybrid (Ukp)

Production Feb 2009 - Jan 2010
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )1ZRFAE,2ZRFAE

Click highlighted areas on diagram

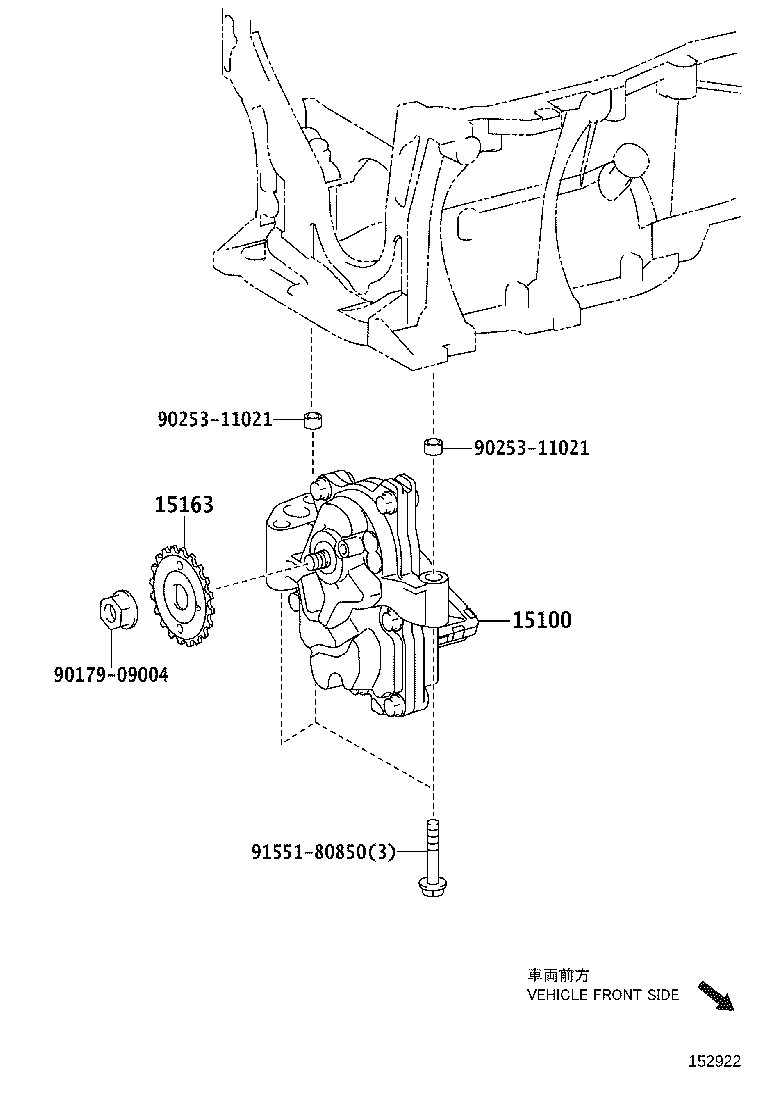

diagram 15100 15163 9017909004 9025311021 9025311021 9155180850
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-37020

1ZRFAE,2ZRFAE..ZRE15#..3D

(J)

 1
15100-0T040

1ZRFAE,2ZRFAE..ZRE15#..3D

(L)

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-28010

1ZRFE..ZRE151;1ZRFAE,2ZRFAE..ZRE15#..3D

 1
Common parts
90179-09004
90253-11021
91551-80850
