ZRE151R-DHMNKW (2007)
Toyota Auris/Hybrid (Ukp)
ILLUST NO. 1 OF 6(0702- )ZRE15#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZRE151,ZZE150 DENSO |
1 | ||
| 83530-05010 |
ZRE151,ZZE150 VALEO |
1 | ||
| 83530-60020 |
ZRE151,ZZE150 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52010 |
NDE150,ZRE151,ZZE150..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52010 |
NDE150,ZRE151,ZZE150..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52010 |
NDE150,ZRE151,ZZE150..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12880 |
ZRE151 (J) |
1 | ||
| 89465-02310 |
ZRE151 (L) |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-02280 |
ZRE151 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02020 |
ZRE151 (L) |
1 | ||
| 89615-20090 |
ZRE151 (J) |
1 | ||
| Common parts | ||||
| 82715-02500 | ||||
| 82715-02510 | ||||
| 82715-20C40 | ||||
| 82715-42710 | ||||
| 82715-52A40 | ||||
| 90105-C0048 | ||||
| 90105-W0086 | ||||
| 90105-W0140 | ||||
| 90119-W0019 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91611-60822 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 6(0702- )ADE15#,NDE150,ZRE15#,ZZE150
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
ZRE151 |
1 | ||
| Common parts | ||||
| 90119-W0019 | ||||
| 90119-W0185 | ||||
| 93315-14010 | ||||
ILLUST NO. 5 OF 6(0702-1001)ADE150..LHD..3D..DCRL ; (0702-1001)NDE150..5D..6FS..TERRA ; (0702-1001)N
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ADE15#,ZRE151..SOL..(DCR,DCRL,HTWC) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..SOL..(DCR,DCRL,HTWC) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..SOL..(DCR,DCRL,HTWC) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..SOL..(DCR,DCRL,HTWC) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 84052-71010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 84052-71010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 84052-71010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84052-71010 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02300 |
ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25 |
1 | ||
| 84140-02300 |
ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25 |
1 | ||
| 84140-02300 |
ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25 |
1 | ||
| 84140-02300 |
ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL FRONT FOG LAMP-WITHOUT,LABEL=G25 |
1 | ||
| 84140-02330 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28 |
1 | ||
| 84140-02330 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28 |
1 | ||
| 84140-02330 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28 |
1 | ||
| 84140-02330 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28 |
1 | ||
| 84140-02340 |
ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29 |
1 | ||
| 84140-02340 |
ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29 |
1 | ||
| 84140-02340 |
ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29 |
1 | ||
| 84140-02340 |
ADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT,LABEL=G29 |
1 | ||
| 84140-02290 |
ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24 |
1 | ||
| 84140-02290 |
ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24 |
1 | ||
| 84140-02290 |
ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24 |
1 | ||
| 84140-02290 |
ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24 |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-02010 |
NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC) |
1 | ||
| 84247-02010 |
NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC) |
1 | ||
| 84247-02010 |
NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC) |
1 | ||
| 84247-02010 |
NDE150..5F..SOL;ADE15#,ZRE151,ZZE150..(5F,6F)..SOL..(DCR,DCRL,HTWC) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02010 |
ADE15#,ZRE151..RHD..(5F,6F)..(DCR,DCRL,HTWC) CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 84250-02010 |
ADE15#,ZRE151..RHD..(5F,6F)..(DCR,DCRL,HTWC) CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 84250-02010 |
ADE15#,ZRE151..RHD..(5F,6F)..(DCR,DCRL,HTWC) CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 84250-02010 |
ADE15#,ZRE151..RHD..(5F,6F)..(DCR,DCRL,HTWC) CRUISE CONTROL-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 84250-02010 |
ADE15#,ZRE151..(5F,6F)..SOL..(DCR,DCRL,HTWC) AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 84250-02010 |
ADE15#,ZRE151..(5F,6F)..SOL..(DCR,DCRL,HTWC) AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 84250-02010 |
ADE15#,ZRE151..(5F,6F)..SOL..(DCR,DCRL,HTWC) AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 84250-02010 |
ADE15#,ZRE151..(5F,6F)..SOL..(DCR,DCRL,HTWC) AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0D070 |
NDE150,ZRE151..SOL;NDE150,ZRE151..5FS..TERRA |
1 | ||
| 84306-0D070 |
NDE150,ZRE151..SOL;NDE150,ZRE151..5FS..TERRA |
1 | ||
| 84306-0D070 |
NDE150,ZRE151..SOL;NDE150,ZRE151..5FS..TERRA |
1 | ||
| 84306-0D070 |
NDE150,ZRE151..SOL;NDE150,ZRE151..5FS..TERRA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 84450-12200 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 84450-12200 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 84450-12200 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..SOL..(DCR,DCRL,HTWC) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..SOL..(DCR,DCRL,HTWC) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..SOL..(DCR,DCRL,HTWC) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..SOL..(DCR,DCRL,HTWC) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84450-12200 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02420 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31 |
1 | ||
| 84652-02420 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31 |
1 | ||
| 84652-02420 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31 |
1 | ||
| 84652-02420 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31 |
1 | ||
| 84652-02410 |
ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30 |
1 | ||
| 84652-02410 |
ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30 |
1 | ||
| 84652-02410 |
ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30 |
1 | ||
| 84652-02410 |
ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-02040 |
NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 89245-02040 |
NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 89245-02040 |
NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 89245-02040 |
NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||

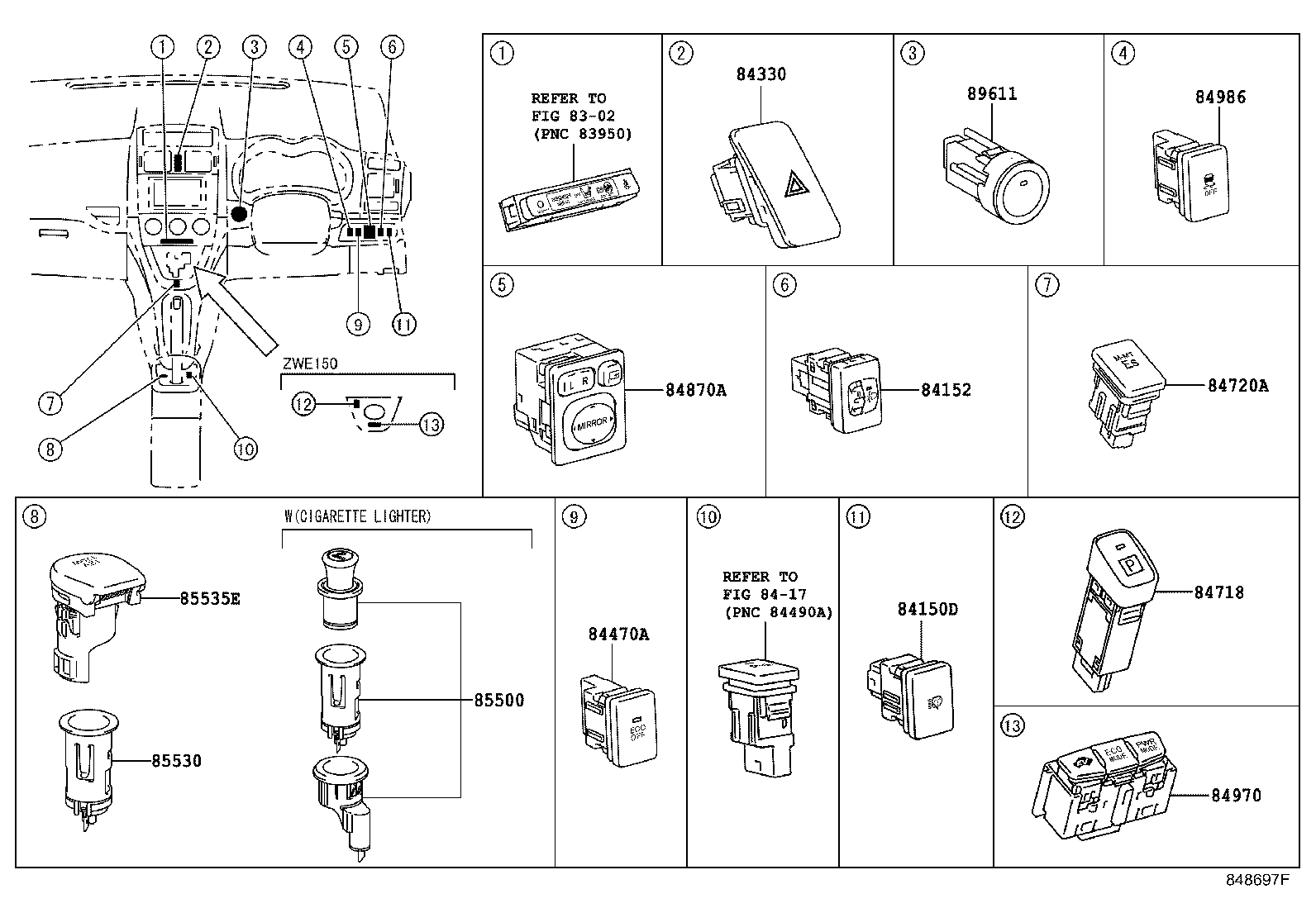

ILLUST NO. 4 OF 6(0702- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02040 |
ZRE151..5D..SOL;ZRE151..LHD..3D..SOL HEADLAMP-DISCHARGE |
1 | ||
| 84152-02040 |
NDE150,ZRE151 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02131 |
NDE150,ZRE151 |
1 | ||
| 84332-02130 |
ADE15#,NDE150,ZRE151,ZZE150 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0F010 |
NDE150,ZRE151 |
1 | ||
| 84986 - SWITCH, VEHICLE STABILITY CONTROL | ||||
| 84986-12010 |
ADE150,NDE150,ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 84988-05020 |
NDE150,ZRE151 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09060 |
NDE150,ZRE151 CIGARETTE LIGHTER-12V SOCKET |
1 | ||
| 85500-09060 |
NDE150,ZRE151 ASH TRAY-WITHOUT |
1 | ||
| 85500-09060 |
NDE150,ZRE151 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
NDE150,ZRE151 ASH TRAY-WITHOUT |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-02040 |
NDE150,ZRE151 ASH TRAY-WITHOUT |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02010 |
ADE15#,ZRE151..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89611-02011 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8417 | ||||
ILLUST NO. 6 OF 6(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12730 |
ZRE151,ZZE150 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12730 |
ZRE151,ZZE150 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
NDE150,ZRE151 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
NDE150,ZRE151 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
NDE150,ZRE151..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
NDE150,ZRE151..5D |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02060E0 |
NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC) GREGE,TRIM4# |
2 | ||
| 84656-02060B0 |
NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC) DK.GRAY,TRIM1# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02060E0 |
NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC) GREGE,TRIM4# |
2 | ||
| 84656-02060B0 |
NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC) DK.GRAY,TRIM1# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
NDE150,ZRE151 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
NDE150,ZRE151 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D030 |
NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D030 |
NDE150..5D..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..5D..SOL..(DCR,DCRL,HTWC) |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02200 |
NDE150,ZRE151..RHD..5D..SOL |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02200 |
NDE150,ZRE151..RHD..5D..SOL |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||

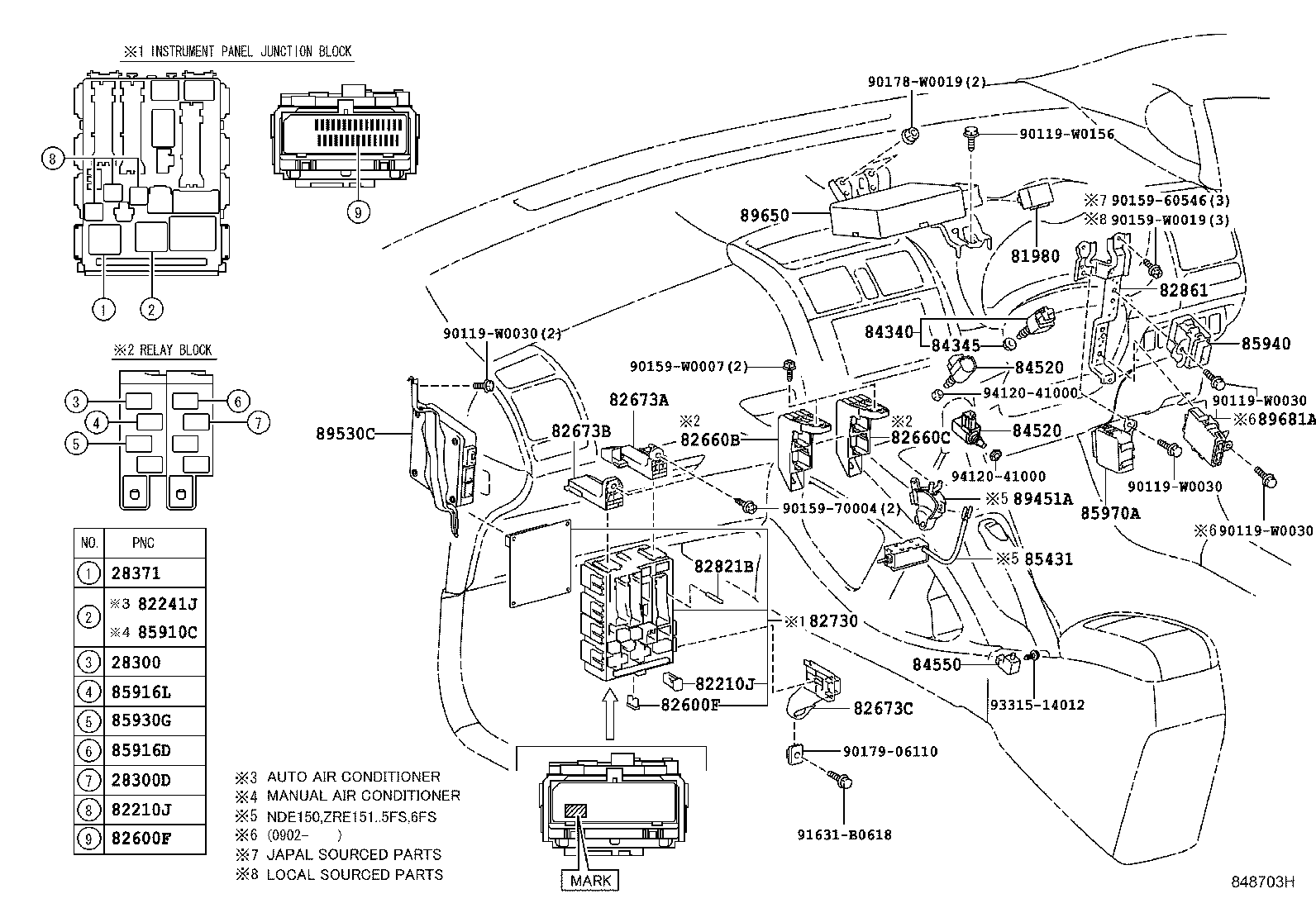

ILLUST NO. 3 OF 6(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150..RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1NDTV,1ZRFE..NDE150,ZRE151 |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
1ZRFE..ZRE151..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-W2001 |
1NDTV,1ZRFE..NDE150,ZRE151 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0D040 |
NDE150,ZRE151 |
1 | ||
| 81980-46010 |
ADE15#,NDE150,ZRE151,ZZE150 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
NDE150,ZRE151 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
NDE150,ZRE151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NDE150,ZRE151 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
NDE150,ZRE151 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
NDE150,ZRE151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NDE150,ZRE151 40A,TERM.:FEMALE,GRN |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
ZRE151..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82241-42010 |
ZRE151..SOL AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82241-42010 |
NDE150,ZRE151..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82241-42010 |
ZRE151..SOL AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82241-42010 |
ZRE151..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82241-42010 |
ZRE151..SOL AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82241-42010 |
ZRE151..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82241-42010 |
NDE150,ZRE151..SOL AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
NDE150,ZRE151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82053 |
NDE150,ZRE151 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82051 |
NDE150,ZRE151 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
NDE150,ZRE151 25A,MINI FUSE |
1 | ||
| 90080-82052 |
NDE150,ZRE151 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82054 |
NDE150,ZRE151 30A,MINI FUSE,GREEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
NDE150,ZRE151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82053 |
NDE150,ZRE151 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82051 |
NDE150,ZRE151 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
NDE150,ZRE151 25A,MINI FUSE |
1 | ||
| 90080-82052 |
NDE150,ZRE151 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82054 |
NDE150,ZRE151 30A,MINI FUSE,GREEN |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-12010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82755-12020 |
ADE15#;ZZE150..RHD;NDE150..5F,5FS;ZZE150..LHD..3D;ZRE151..SOL..HTWC;ZZE150..LHD..5D..SOL;ZRE151..5D..5FS..TERRA;ZRE151..3D..TERRA..HTWC |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12200 |
NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC) |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12210 |
NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC) |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12220 |
NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC) |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-02450 |
ZRE151..RHD..5F UK SPEC&POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82730-02320 |
NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82730-02310 |
NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC) |
1 | ||
| 82730-02560 |
ZRE151..RHD..5F UK SPEC&POWER DOOR LOCK-WITH(FREE WHEEL)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82730-02370 |
NDE150..RHD..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..RHD..SOL..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK)&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82730-02410 |
ADE15#,ZRE151..RHD..(5F,6F)..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82730-02460 |
ADE15#,ZRE151..RHD..(5F,6F)..(DCR,DCRL,HTWC) UK SPEC&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82730-02530 |
ADE15#,ZRE151..RHD..(5F,6F)..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82730-02360 |
NDE150..RHD..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..RHD..SOL..(DCR,DCRL,HTWC) INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82730-02520 |
ADE15#,ZRE151..RHD..(5F,6F)..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(FREE WHEEL)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82730-02620 |
ADE15#,ZRE151..RHD..(5F,6F)..(DCR,DCRL,HTWC) UK SPEC&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82730-02420 |
ADE15#,ZRE151..RHD..(5F,6F)..(DCR,DCRL,HTWC) POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
NDE150,ZRE151 |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-12010 |
NDE150,ZRE151..RHD..SOL POWER DOOR LOCK-WITH(DOUBLE LOCK)&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82861-12010 |
NDE150,ZRE151..RHD |
1 | ||
| 82861-12010 |
ZRE151..RHD POWER DOOR LOCK-WITH(FREE WHEEL)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82861-12010 |
NDE150,ZRE151..RHD..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82861-12010 |
ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82861-12010 |
NDE150,ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82861-12010 |
ZRE151..RHD POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82861-12010 |
ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09020 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ZRE151..RHD..5D..5F SOUTH AFRICA SPEC |
1 | ||
| 84520-42010 |
NDE150..5F;ADE15#,ZRE151,ZZE150..(5F,6F)..(DCR,DCRL,HTWC) |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ZRE151..RHD..5D..5F SOUTH AFRICA SPEC |
1 | ||
| 84520-42010 |
NDE150..5F;ADE15#,ZRE151,ZZE150..(5F,6F)..(DCR,DCRL,HTWC) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90080-87031 |
NDE150,ZRE151 |
1 | ||
| 90080-87031 |
ZRE151..SOL AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87019 |
NDE150,ZRE151..SOL |
1 | ||
| 90080-87019 |
ZRE151..RHD..5D..5F FRONT FOG LAMP-WITHOUT |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90080-87019 |
NDE150,ZRE151 |
1 | ||
| 90080-87019 |
ZRE151..RHD..5D SOUTH AFRICA SPEC |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90080-87019 |
NDE150,ZRE151 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-02040 |
NDE150,ZRE151..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-12020 |
ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
1 | ||
| 85970-12020 |
NDE150,ZRE151..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-02400 |
NDE150,ZRE151..RHD |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90119-W0156 | ||||
| 90159-60546 | ||||
| 90159-70004 | ||||
| 90159-W0007 | ||||
| 90159-W0019 | ||||
| 90178-W0019 | ||||
| 90179-06110 | ||||
| 91631-B0618 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
ILLUST NO. 3 OF 7(0702- )ADE15#,NDE150,ZRE15#,ZZE150
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
NDE150,ZRE151 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
NDE150,ZRE151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NDE150,ZRE151 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
NDE150,ZRE151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82053 |
NDE150,ZRE151 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82051 |
NDE150,ZRE151 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
NDE150,ZRE151 25A,MINI FUSE |
1 | ||
| 90080-82052 |
NDE150,ZRE151 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82054 |
NDE150,ZRE151 30A,MINI FUSE,GREEN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12280 |
ZRE151,ZZE150 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-02020 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.2 |
1 | ||
| 82631-02010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.1 |
1 | ||
| 82631-02030 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.3 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-02020 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.2 |
1 | ||
| 82631-02010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.1 |
1 | ||
| 82631-02030 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.3 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-02020 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.2 |
1 | ||
| 82631-02010 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.1 |
1 | ||
| 82631-02030 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC NO.3 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02190 |
ZRE151 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02050 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02050 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-02450 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
NDE150,ZRE151 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87031 |
NDE150,ZRE151 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87031 |
NDE150,ZRE151 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87019 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 82715-02A30 | ||||
| 82715-02A40 | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
